Engine Front Cover: Notes

WARNING: This page is about a different car, the 2008 Mercury Mariner and 2008 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

Material

Item	Specification
Motorcraft Metal Surface Prep ZC-31	-
Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (US); Motorcraft SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12 (Canada); or equivalent	WSS-M2C930-A
Silicone Gasket and Sealant TA-30	WSE-M4G323-A6

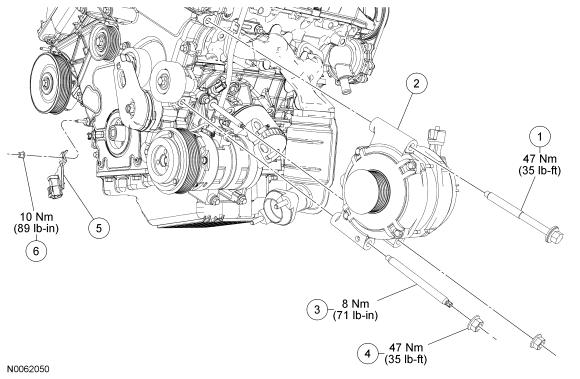

Fig 1: Engine Front Cover Components With Torque Specifications (1 Of 4)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W709986	Generator bolt
2	10300	Generator
3	W710416	Generator stud
4	W520414	Generator stud nut (2 required)
5	15A024	Catalyst monitor sensor electrical connector bracket
6	W701542	Catalyst monitor sensor electrical connector bracket nut

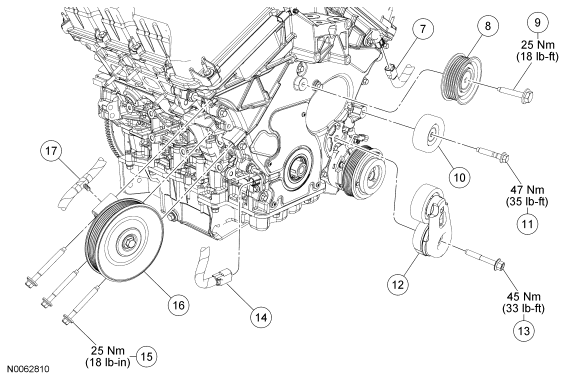

Fig 2: Engine Front Cover Components With Torque Specifications (2 Of 4)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
7	14A464	Crankshaft position (CKP) sensor electrical connector (part of 9H589)
8	6C348	Center accessory drive belt idler pulley
9	-	Center accessory drive belt idler pulley bolt (part of 6C348)
10	19A216	LH accessory drive belt idler pulley
11	-	LH accessory drive belt idler pulley bolt (part of 19A216)
12	6B209	Accessory drive belt tensioner
13	W701625	Accessory drive belt tensioner bolt
14	14A464	Camshaft position (CMP) sensor electrical connector (part of 9H589)
15	W706902	RH accessory drive belt idler pulley and bracket bolt (3 required)
16	3F671	RH accessory drive belt idler pulley and bracket
17	9H589	Wiring harness retainer

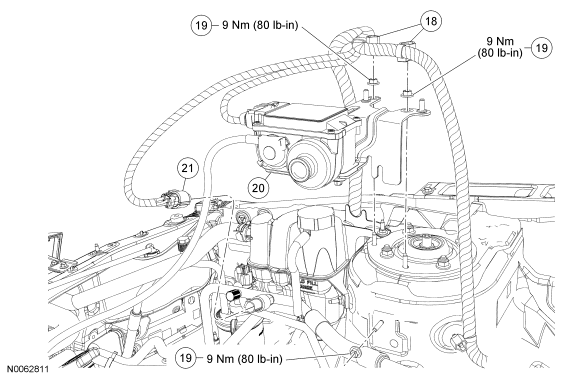

Fig 3: Engine Front Cover Components With Torque Specifications (3 Of 4)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
18	-	Wire harness retainers (2 required) (part of 14290)
19	W707137	Speed control actuator nuts (3 required)
20	9C735	Speed control actuator
21	-	A/C pressure switch electrical connector (part of 14290)

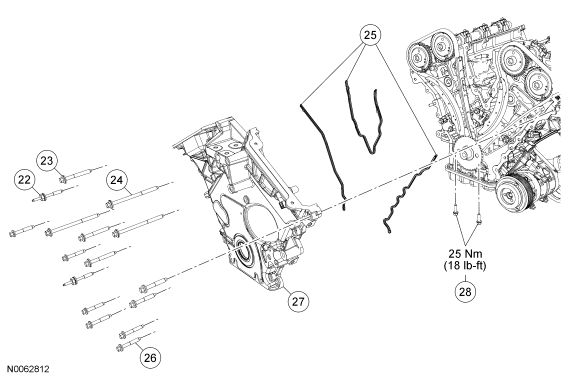

Fig 4: Engine Front Cover Components With Torque Specification (4 Of 4)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
22	W710030	Engine front cover stud bolt (2 required)
23	W708222	Engine front cover bolt (3 required)
24	W708221	Engine front cover bolt (3 required)
25	6D081	Engine front cover gaskets (3 required)
26	W701525	Engine front cover bolt (8 required)
27	6019	Engine front cover
28	W709678	Oil pan-to-front cover bolts (2 required)
