Engine Lubrication Components - Exploded View
WARNING: This page is about a different car, the 2008 Mercury Mariner and 2008 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

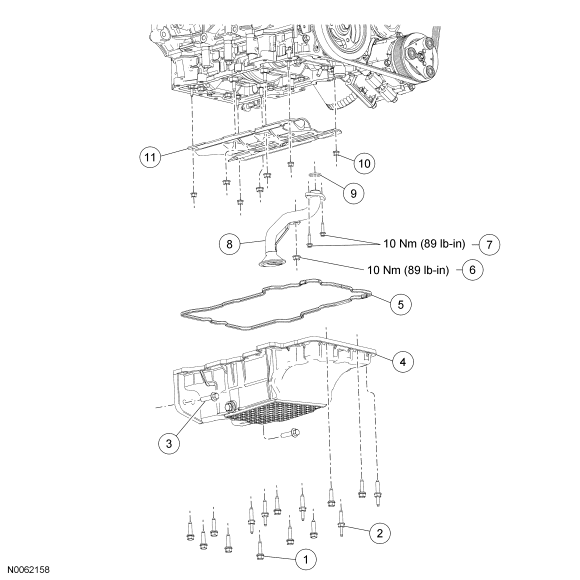

Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
W701605 |
Oil pan-to-engine bolt (10 required) |
| 2 |
W701606 |
Oil pan-to-engine stud bolt (5 required) |
| 3 |
W500120 |
Oil pan-to-transaxle bolt (2 required) |
| 4 |
6675 |
Oil pan |
| 5 |
6710 |
Oil pan gasket |
| 6 |
W701582 |
Oil pump screen and pickup tube nut |
| 7 |
W700005 |
Oil pump screen and pickup tube bolts (2 required) |
| 8 |
6622 |
Oil pump screen and pickup tube |
| 9 |
6625 |
Oil pump screen and pickup tube O-ring seal |
| 10 |
W701542 |
Oil pan baffle nut (7 required) |
| 11 |
6687 |
Oil pan baffle |

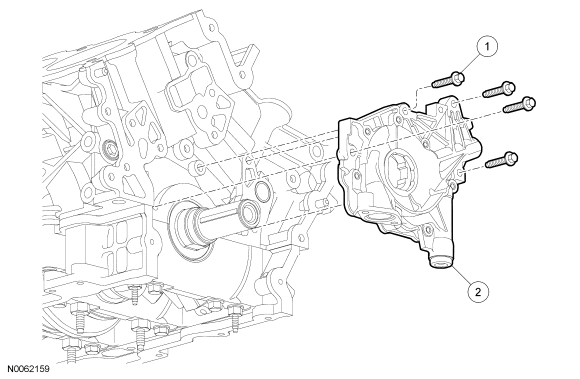

Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
W500300 |
Oil pump bolt (4 required) |
| 2 |
6621 |
Oil pump |
- For additional information, refer to the procedures in this article.
