Engine Support Insulators: Notes
WARNING: This page is about a different car, the 2008 Mercury Mariner and 2008 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| 3-Bar Engine Support Kit | 303-F072 | |
| Lifting Brackets, Engine | 303-050 (T70P-6000) | |
| Universal Adapter Brackets | 014-0001 |

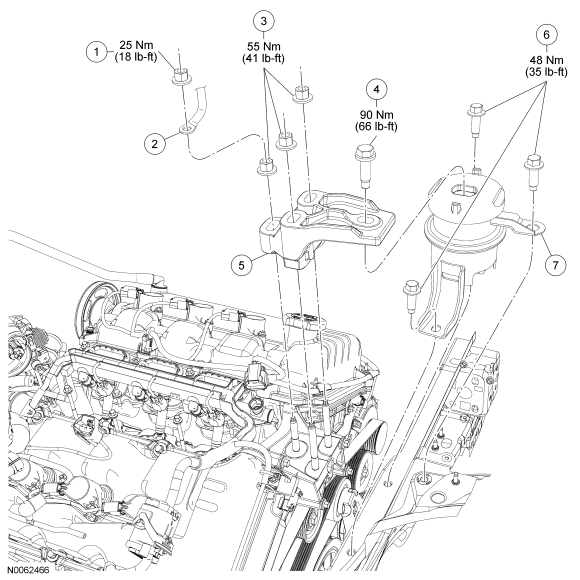

| Item | Part Number | Description |
|---|---|---|
| 1 | N621942 | Ground wire eyelet nut |
| 2 | - | Ground wire eyelet |
| 3 | N621942 | Engine support insulator bracket nuts (3 required) |
| 4 | W709667 | Engine support insulator bracket bolt |
| 5 | 6061 | Engine support insulator bracket |
| 6 | W500233 | Engine support insulator bolts (3 required) |
| 7 | 6068 | Engine support insulator |
