Lower End Components - Exploded View

WARNING: This page is about a different car, the 2008 Mercury Mariner and 2008 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

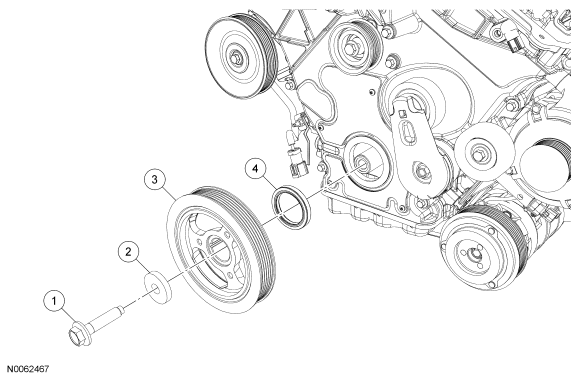

Fig 1: Crankshaft Pulley and Front Seal

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W701512	Crankshaft pulley bolt
2	W701511	Washer
3	6316	Crankshaft pulley
4	6700	Crankshaft front seal

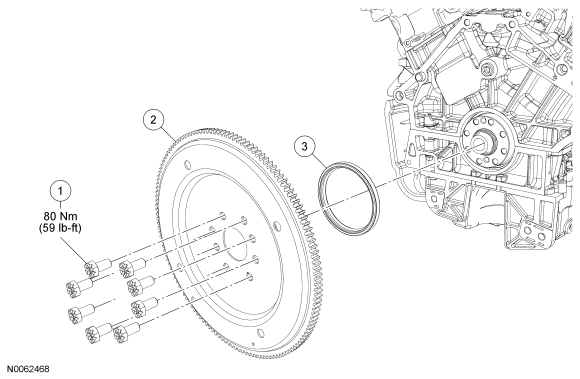

Fig 2: Flexplate and Rear Seal With Torque Specification

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W701559	Flexplate bolt (8 required)
2	6375	Flexplate
3	6701	Crankshaft rear oil seal

For additional information, refer to the procedures in this article.
