Valve Train Components - Exploded View

WARNING: This page is about a different car, the 2008 Mercury Mariner and 2008 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

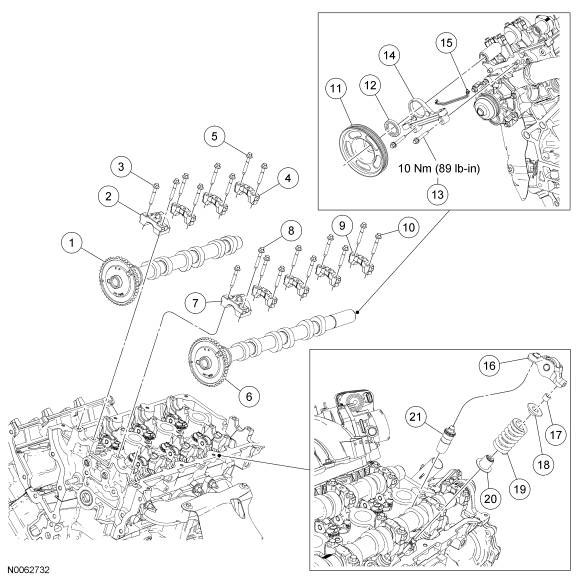

Fig 1: Exploded View Of Left Valve Train Components With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	6A266	LH intake camshaft
2	6B280	Intake camshaft thrust bearing cap
3	W710702	Intake camshaft thrust bearing cap bolt (2 required)
4	6A258	Intake camshaft bearing cap (3 required)
5	W710702	Intake camshaft bearing cap bolt (6 required)
6	6A266	LH exhaust camshaft
7	6B280	Exhaust camshaft thrust bearing cap
8	W710702	Exhaust camshaft thrust bearing cap bolt (2 required)
9	6B280	Exhaust camshaft bearing cap (4 required)
10	W710702	Exhaust camshaft bearing cap bolt (8 required)
11	6A359	Coolant pump drive pulley
12	6K292	Camshaft oil seal
13	W701242	Camshaft oil seal retainer bolt (2 required)
14	6B293	Camshaft oil seal retainer
15	6B295	Camshaft oil seal retainer gasket
16	6529	Roller follower (12 required)
17	6518	Valve spring retainer key (24 required)
18	6514	Valve spring retainer (12 required)
19	6513	Valve spring (12 required)
20	6A517	Valve stem seal (12 required)
21	6C501	Hydraulic lash adjuster (12 required)

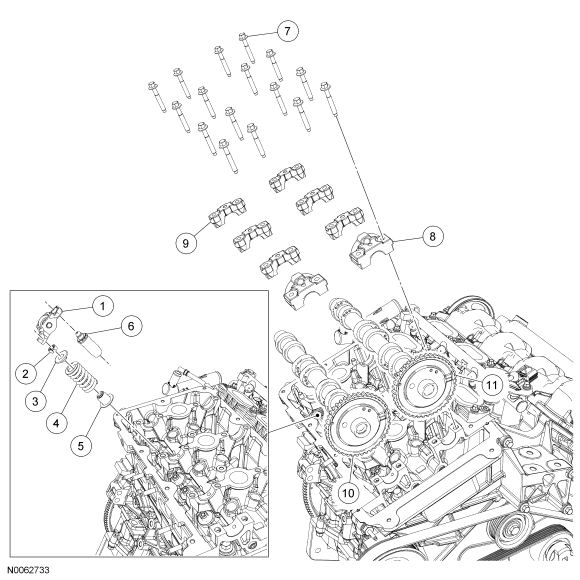

Fig 2: Exploded View Of Right Valve Train Components With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	6529	Roller follower
2	6518	Valve spring retainer key
3	6514	Valve spring retainer
4	6513	Valve spring
5	6A517	Valve stem seal
6	6C501	Hydraulic lash adjuster
7	W710702	Camshaft bearing cap bolt (16 required)
8	6B280	Camshaft bearing thrust cap (2 required)
9	6A258	Camshaft bearing cap (6 required)
10	6A266	Exhaust camshaft
11	6A266	Intake camshaft

For additional information, refer to the procedures in this article.
