Vehicle Certification (VC) Label Example
WARNING: This page is about a different car, the 2002 Ford RV Cutaway, 2002 Ford Econoline, 2002 Ford E550 Super Duty, 2002 Ford E450 Super Duty, and 2002 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

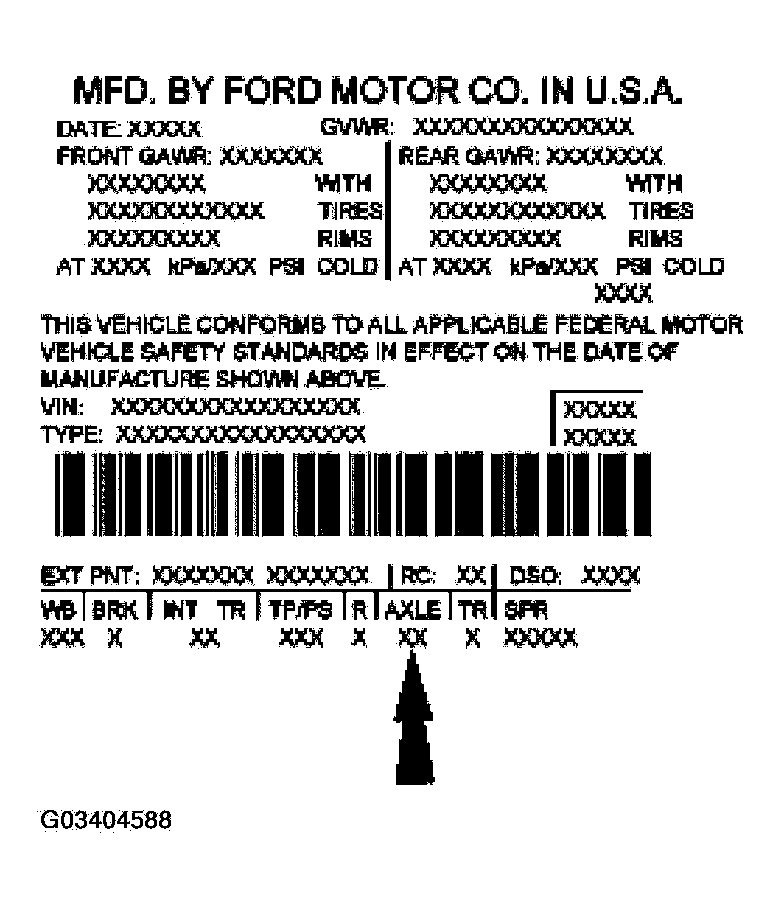

The vehicle certification (VC) label is located in the driver door jamb. The axle code is on the VC label. For additional information on the VC label, refer to the list below to cross reference the axle code to the ratio.
- 19 - 3.55 ratio, non-limited slip
- H9 - 3.55 ratio, limited slip
- 24 - 3.73 ratio, non-limited slip
- B4 - 3.73 ratio, limited slip
- 32 - 4.10 ratio, non-limited slip
- C2 - 4.10 ratio, limited slip
- 34 - 3.73 ratio, non-limited slip
- C4 - 3.73 ratio, limited slip
- 35 - 4.09 ratio, non-limited slip
- C5 - 4.09 ratio, limited slip
- 39 - 3.55 ratio, non-limited slip
- C9 - 3.55 ratio, limited slip
- 52 - 4.10 ratio, non-limited slip
- E2 - 4.10 ratio, limited slip
- 56 - 4.10 ratio, non-limited slip
- E6 - 4.10 ratio, limited slip
- 82 - 4.10 ratio, non-limited slip
- 83 - 4.56 ratio, non-limited slip
- 84 - 4.88 ratio, non-limited slip
- G4 - 4.88 ratio, limited slip
- 85 - 5.38 ratio, non-limited slip
- G5 - 5.38 ratio, limited slip
