Transmission Component Index

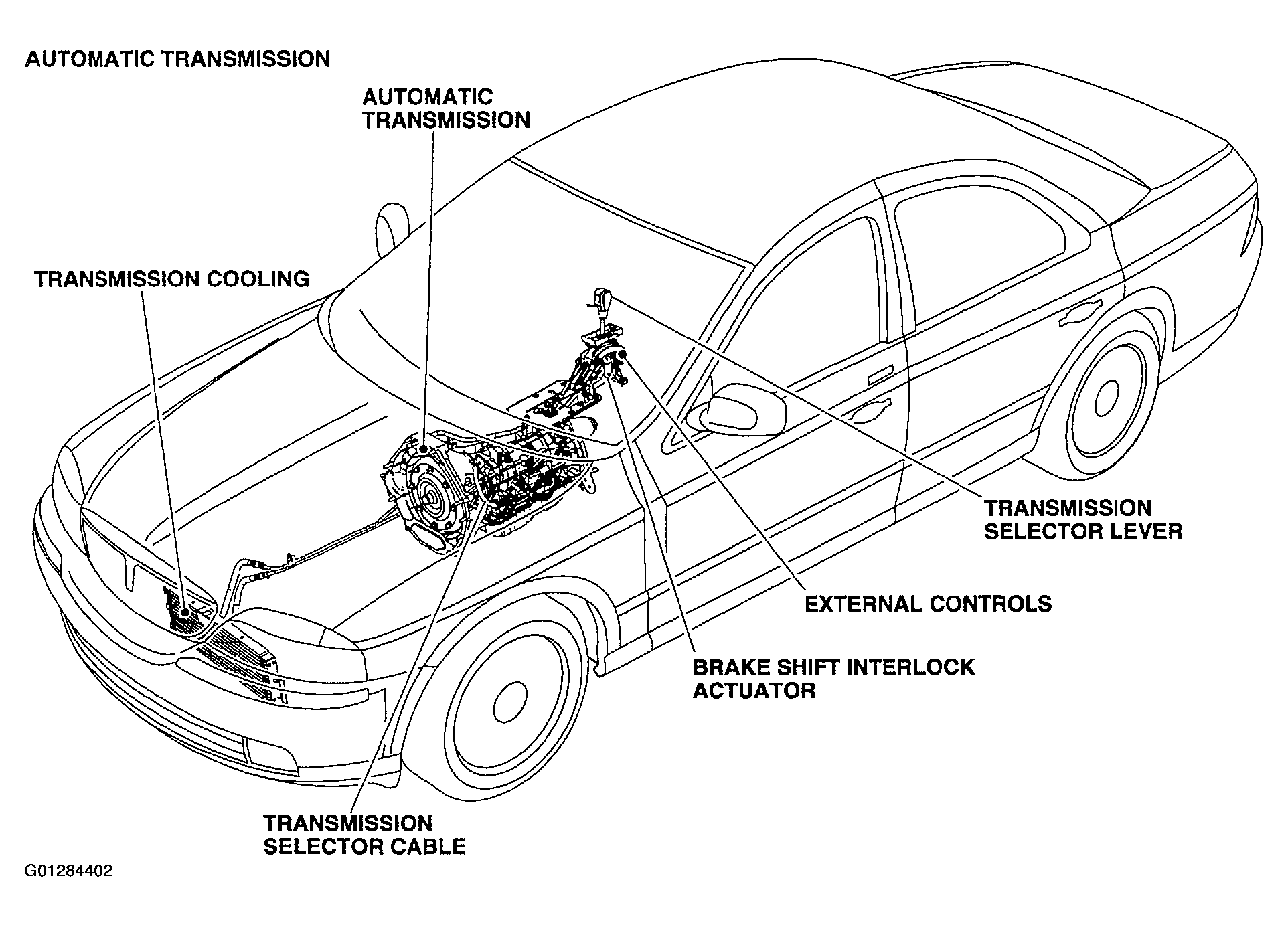

Fig 1: Locating Transmission Component (1 Of 2)
G01284402Courtesy of FORD MOTOR CO.

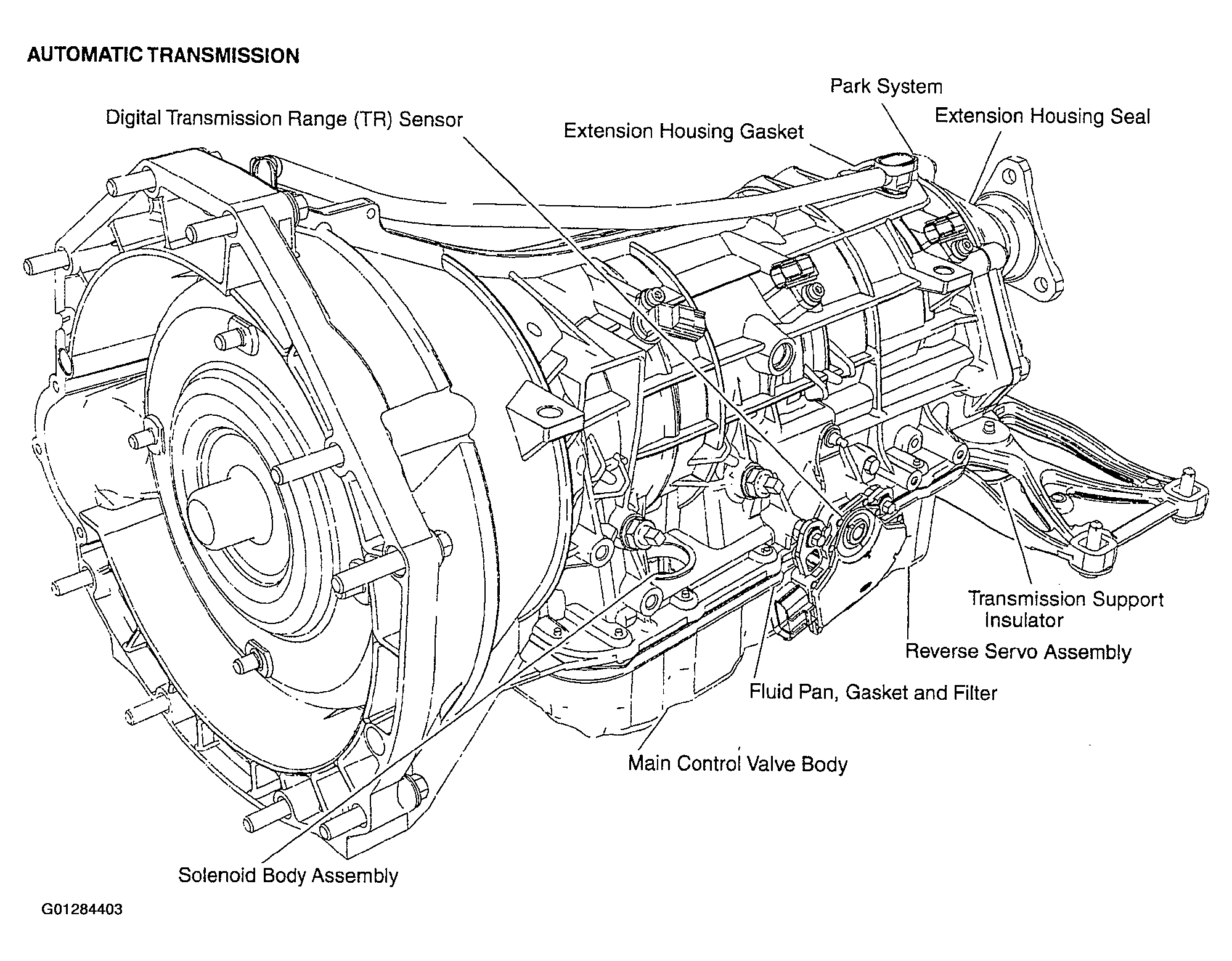

Fig 2: Locating Transmission Component (2 Of 2)
G01284403Courtesy of FORD MOTOR CO.
