Fluid Pump: Assembly

  1. Illustration 2 of 2. Assemble the components in the order indicated in Fig 1.

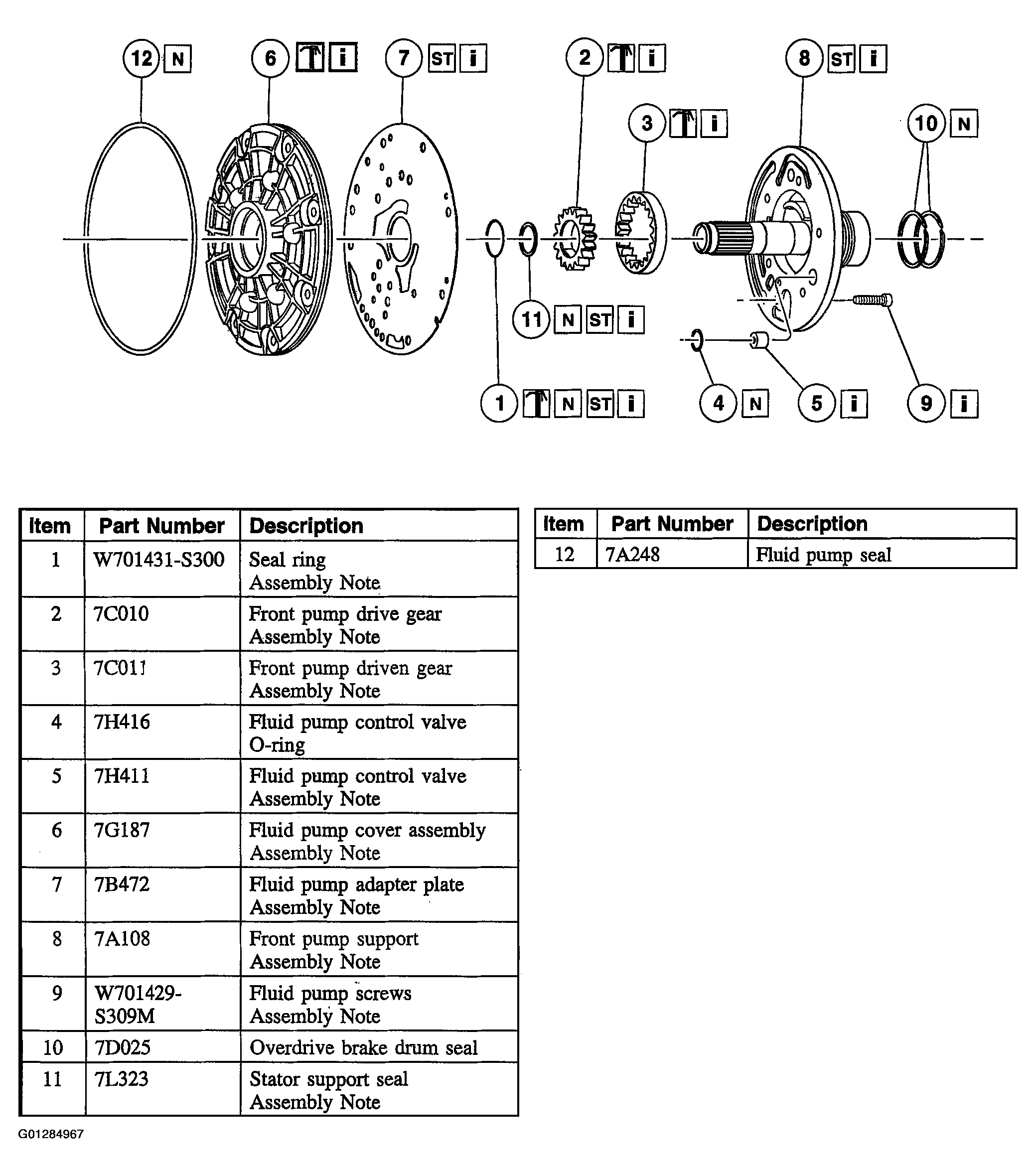

    Fig 1: Exploded View Of Flood Pump Assembly Components (2 Of 2)
    G01284967Courtesy of FORD MOTOR CO.
