Reverse Servo Assembly: Notes
NOTE:
Inspect the reverse servo piston seal for damage. If damaged, a new piston and seal assembly will need to be installed.

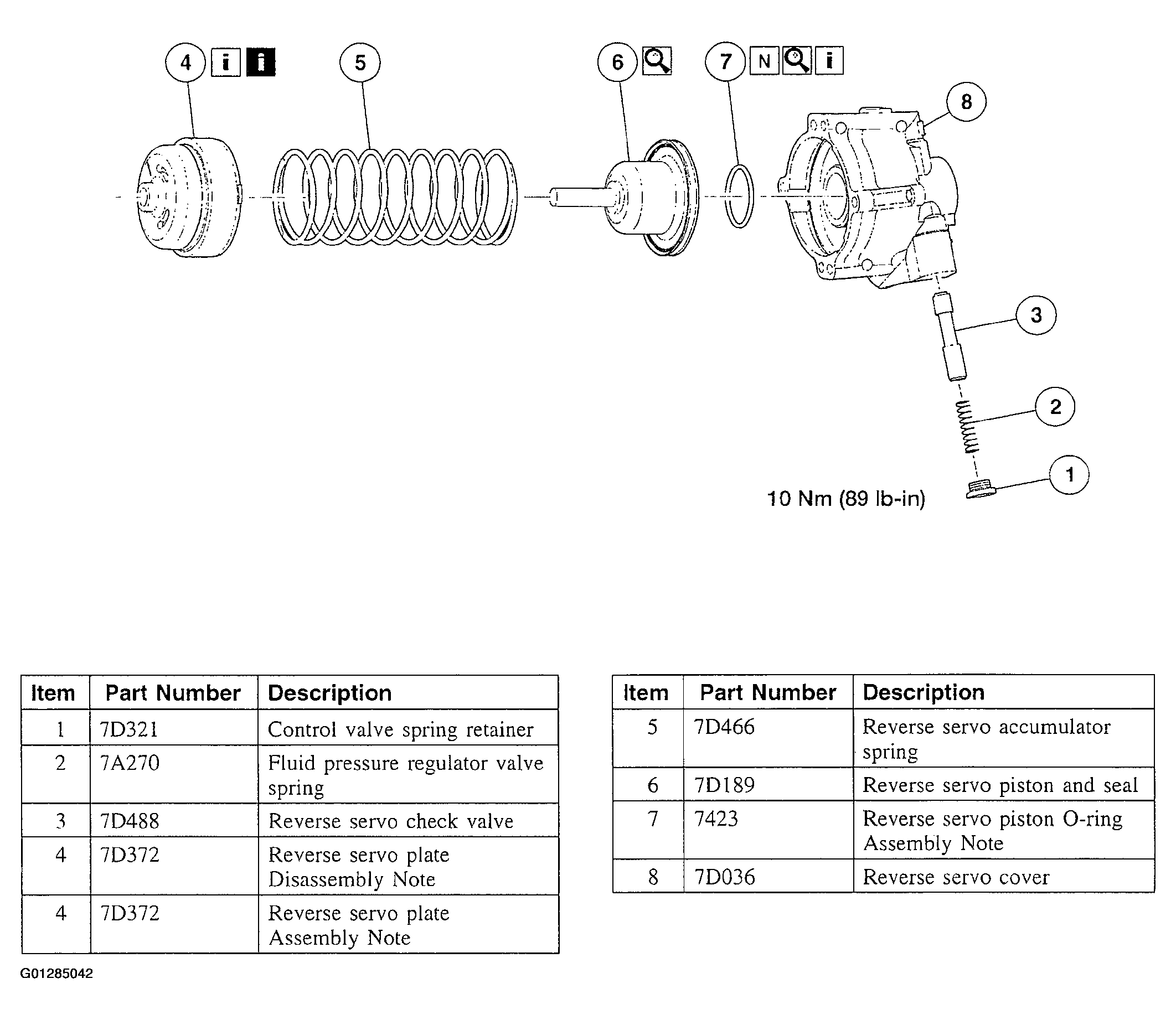

- Disassemble the components in the order indicated in the following illustration and table.
- To assemble, reverse the disassembly procedure.
