Torque Converter End Play Check: Notes

Special Tool(s)

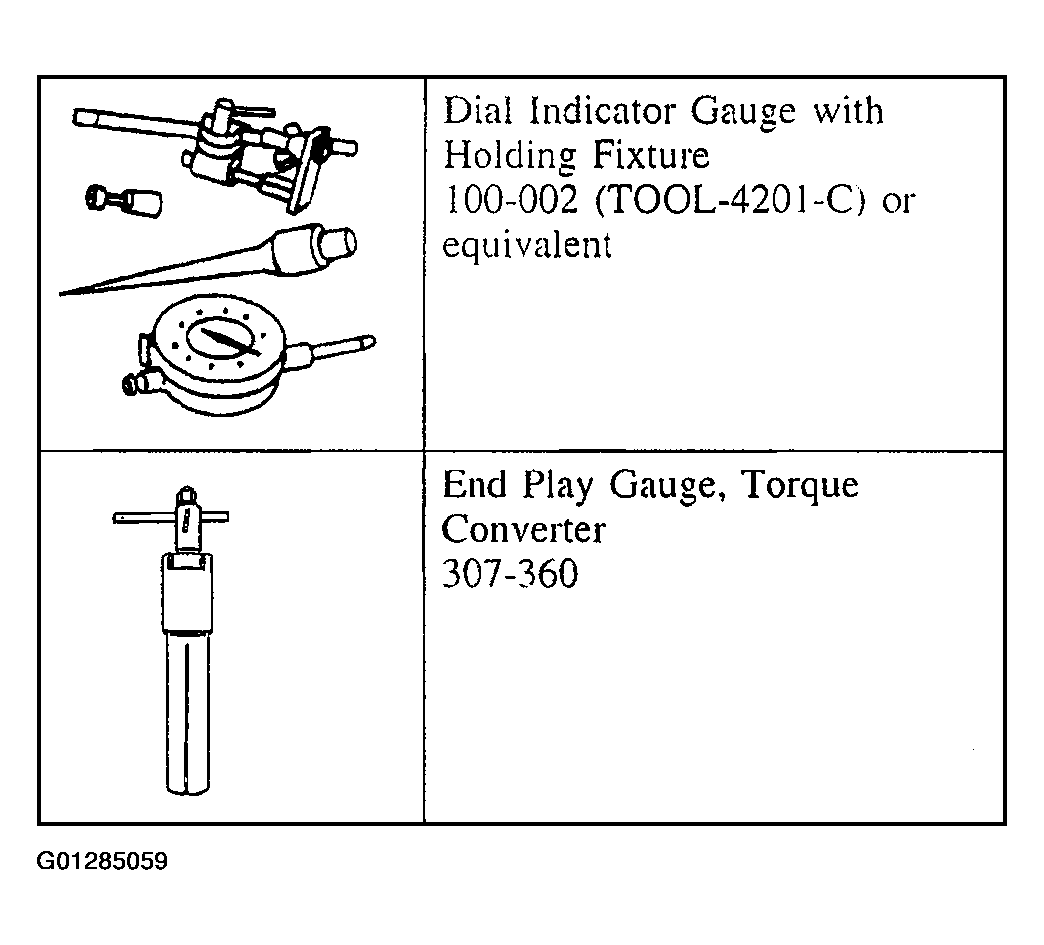

Fig 1: Identifying Special Tool(s)

Courtesy of FORD MOTOR CO.

1. Install the special tool into the torque converter until it bottoms out.
   • Tighten the inner post until the tool is securely locked.

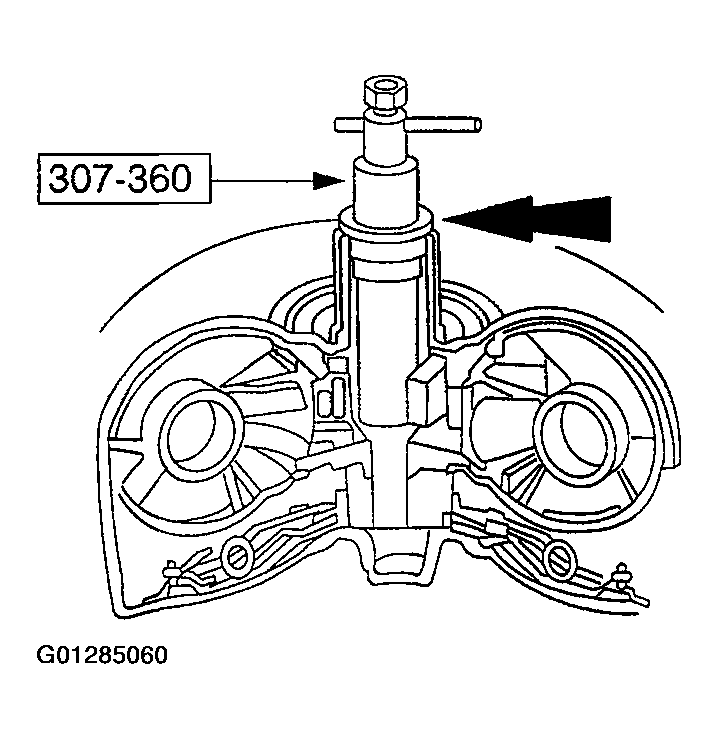

   Fig 2: Tightening Inner Post

   Courtesy of FORD MOTOR CO.
2. Install the special tool on the converter impeller housing and zero the dial.

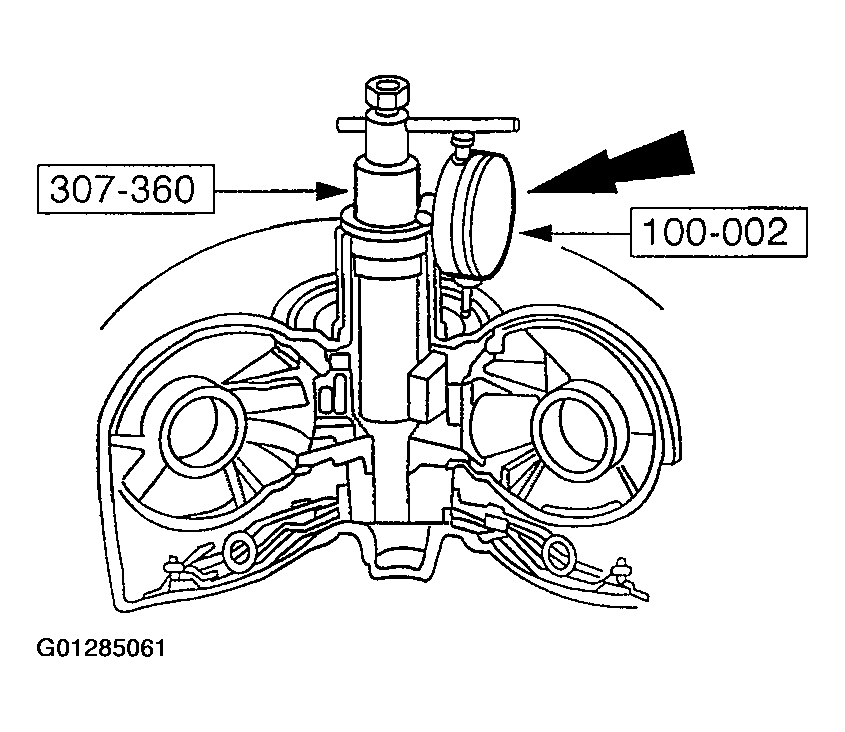

   Fig 3: Installing Special Tool On Converter Impeller Housing And Zero Dial

   Courtesy of FORD MOTOR CO.
3. Lift up on the special tool and note the dial indicator reading. If the reading exceeds end play limits, install a new or rebuilt torque converter.
