Automatic Transmission - LS: Disassembly: Transmission: Notes

Special Tool(s)

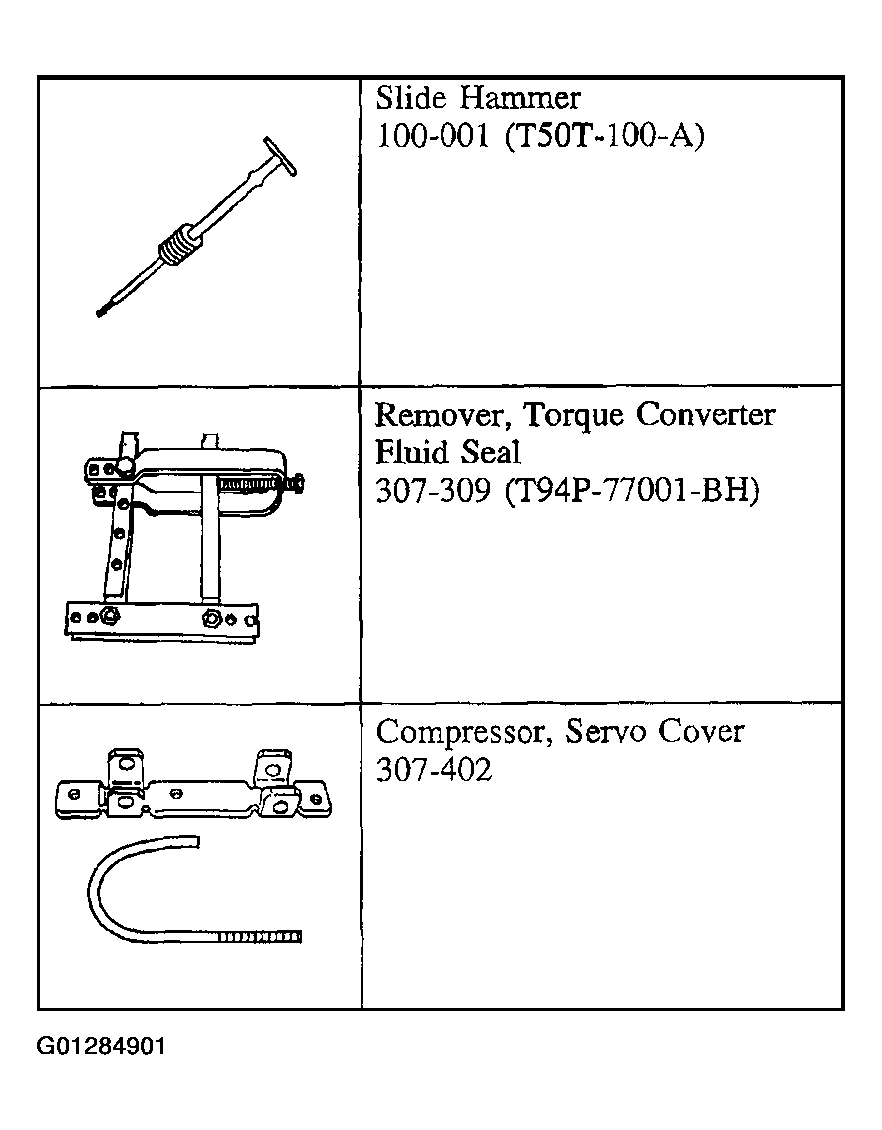

Fig 1: Identifying Special Tool (1 Of 3)

Courtesy of FORD MOTOR CO.

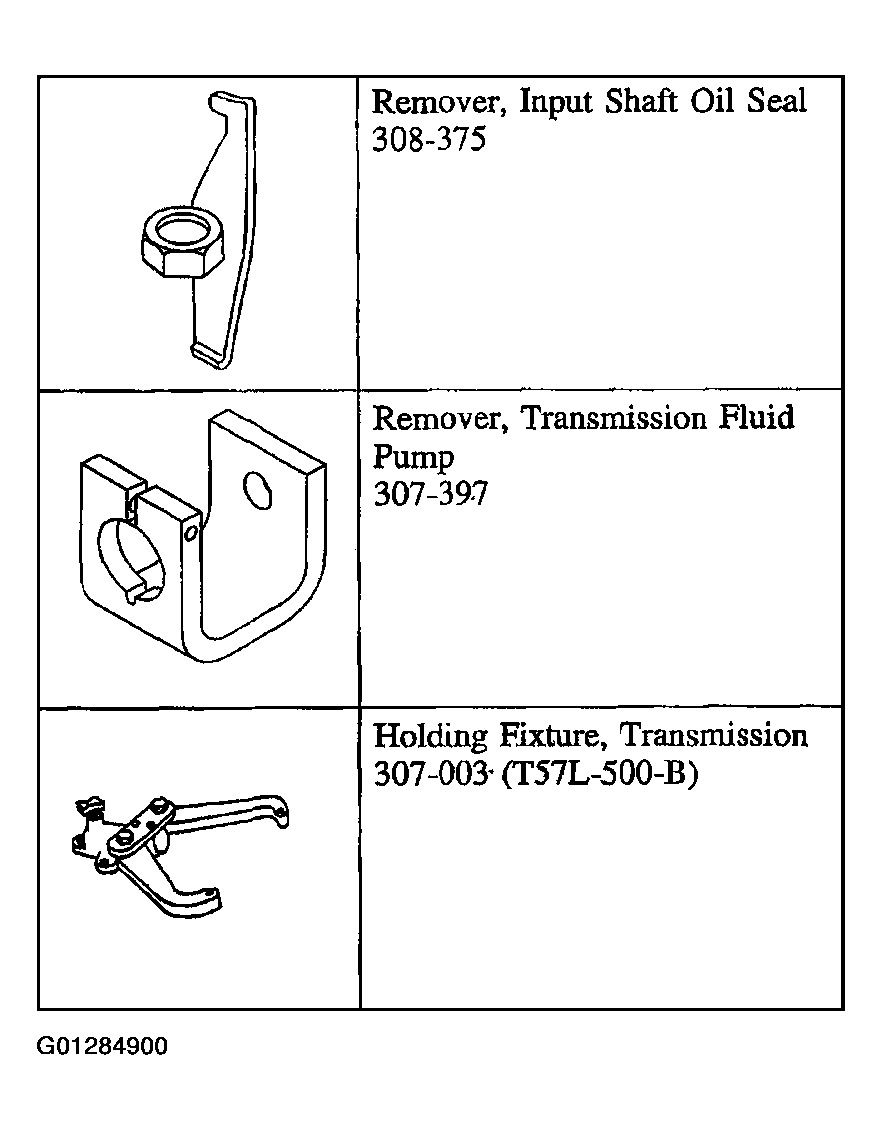

Fig 2: Identifying Special Tool (2 Of 3)

Courtesy of FORD MOTOR CO.

Fig 3: Identifying Special Tool (3 Of 3)

Courtesy of FORD MOTOR CO.

CAUTION: The screws are not reusable for assembly. Discard the screws. If the screws are reused, the housing may become separated from the transmission.

NOTE: The transmission fluid pan gasket is reusable. Clean and inspect the gasket for damage. If not damaged, the gasket should be reused.

NOTE: Tag and identify all parts for reassembly.

Illustration 1 of 2. Remove the components in the order indicated in the following 2 illustration and table.

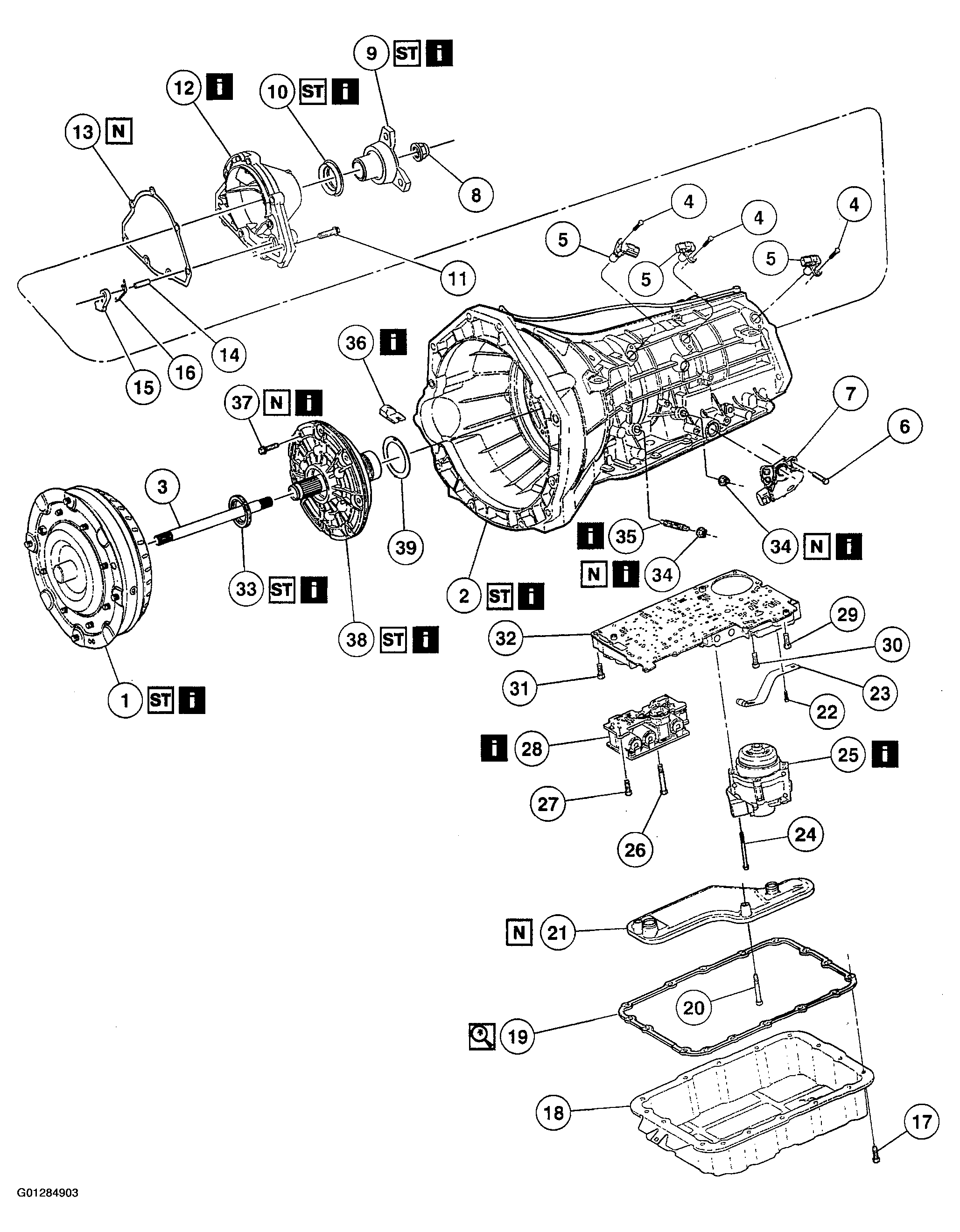

Fig 4: Identifying Torque Convertor Assembly Components
Courtesy of FORD MOTOR CO.

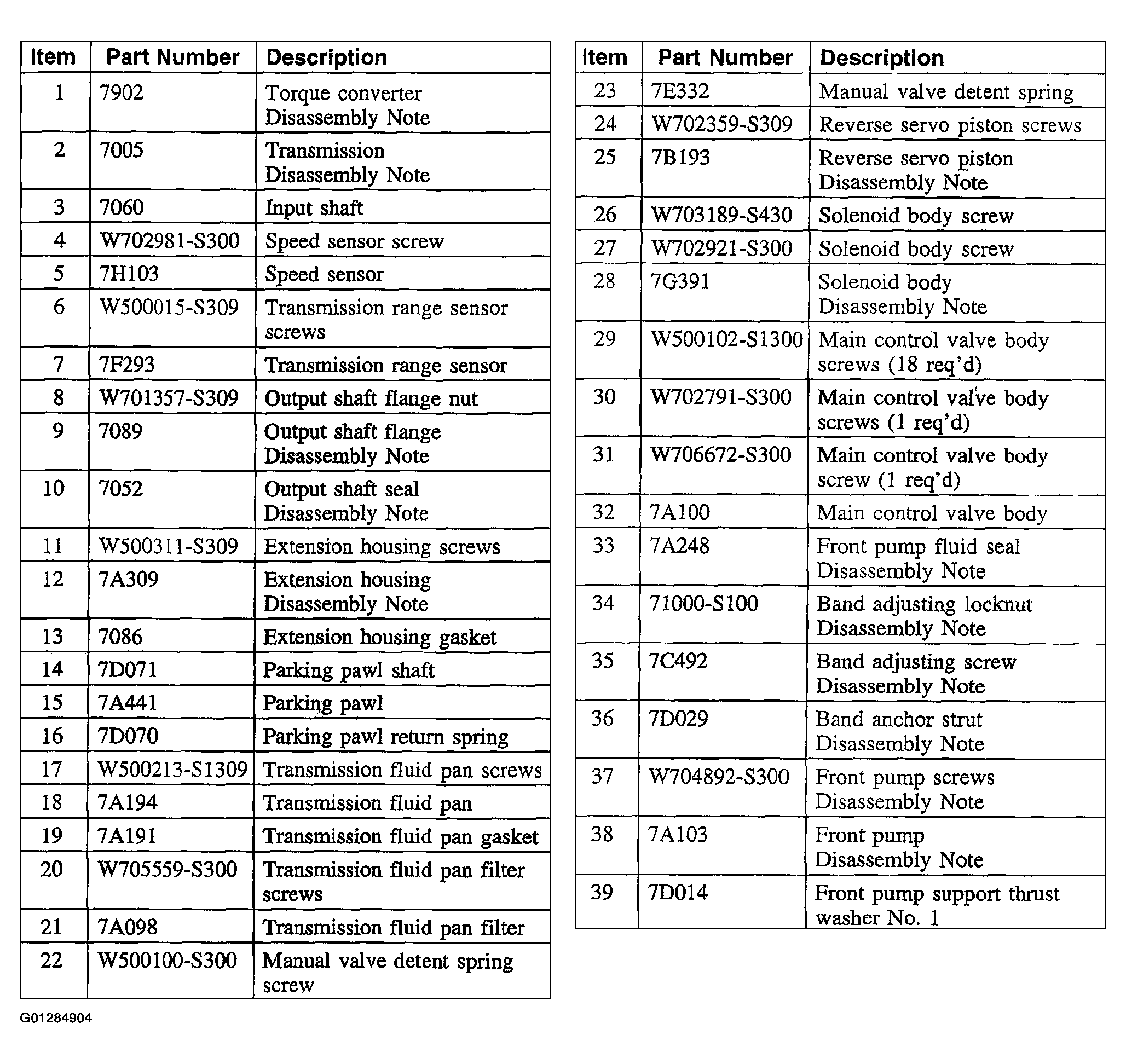

Fig 5: Parts Description Chart
Courtesy of FORD MOTOR CO.

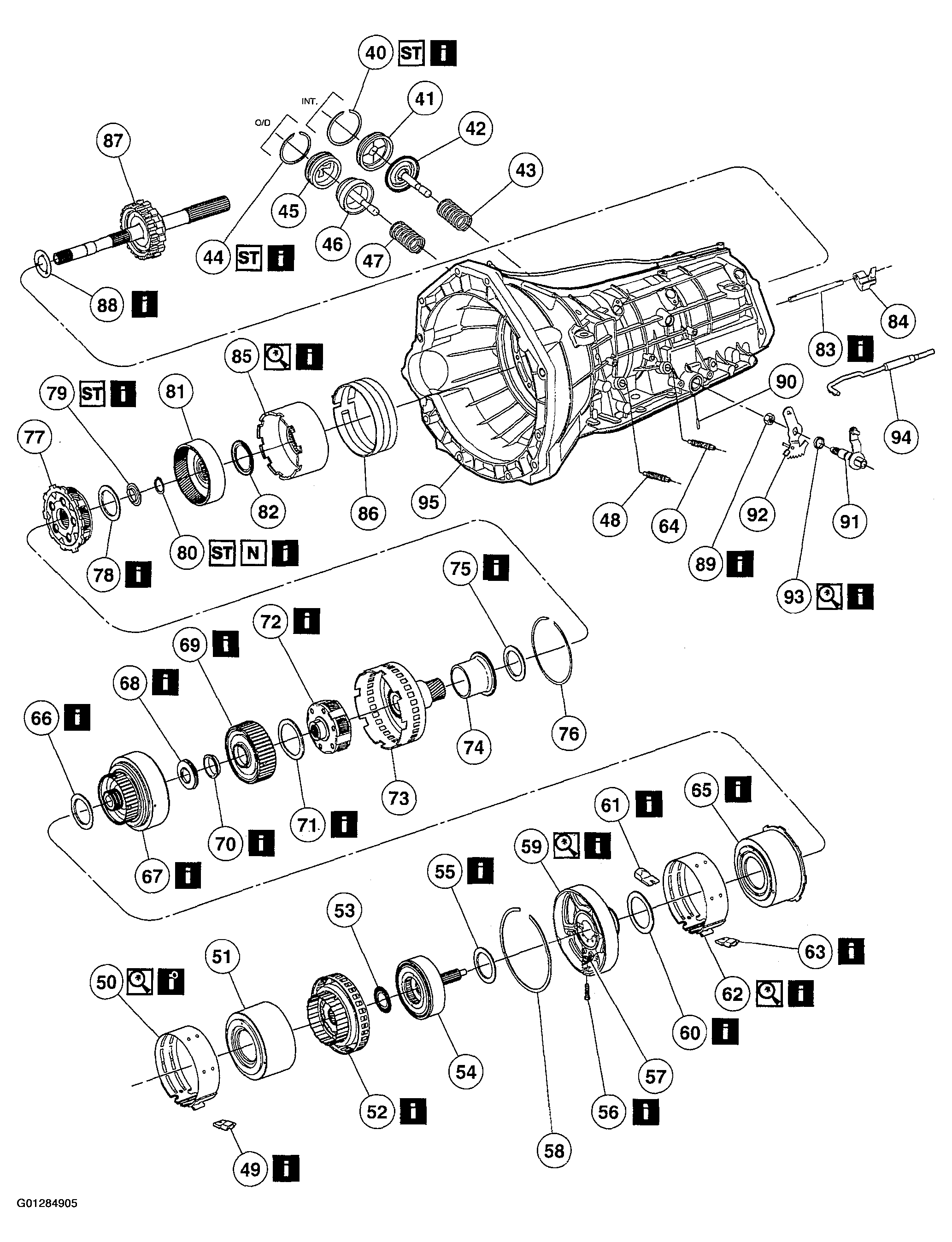

Illustration 2 of 2. Remove the components in the order indicated in the following 4 illustration and table.

Fig 6: Exploded View Of Intermediate Servo Components

Courtesy of FORD MOTOR CO.

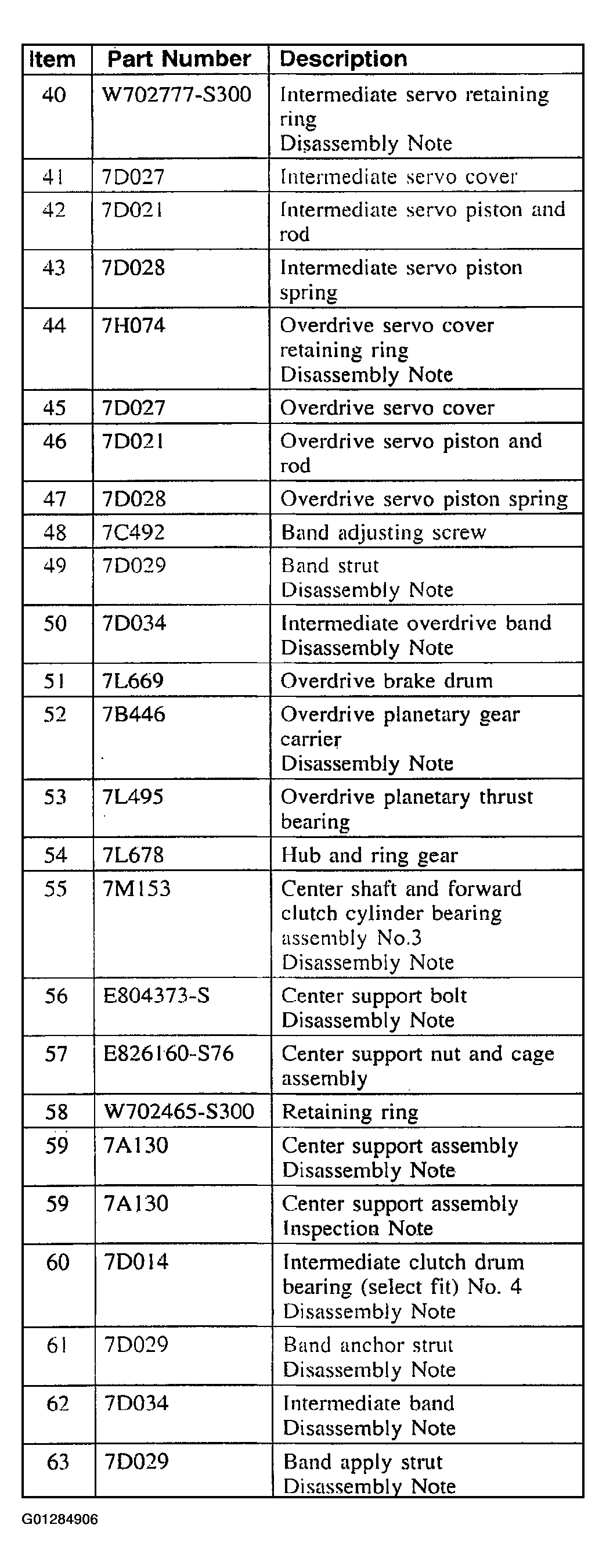

Fig 7: Parts Description Chart (1 Of 3)

Courtesy of FORD MOTOR CO.

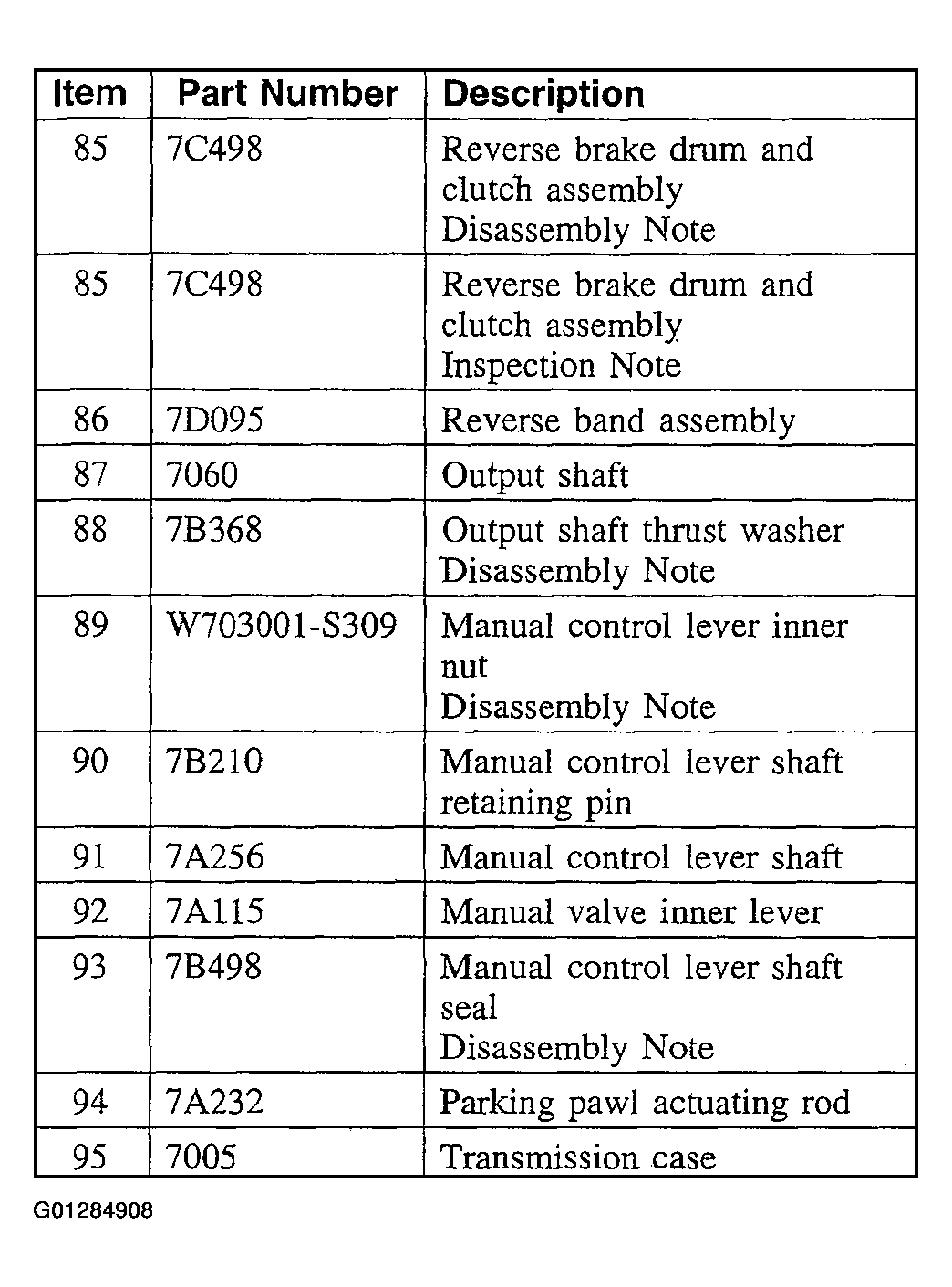

Fig 8: Parts Description Chart (2 Of 3)

Courtesy of FORD MOTOR CO.

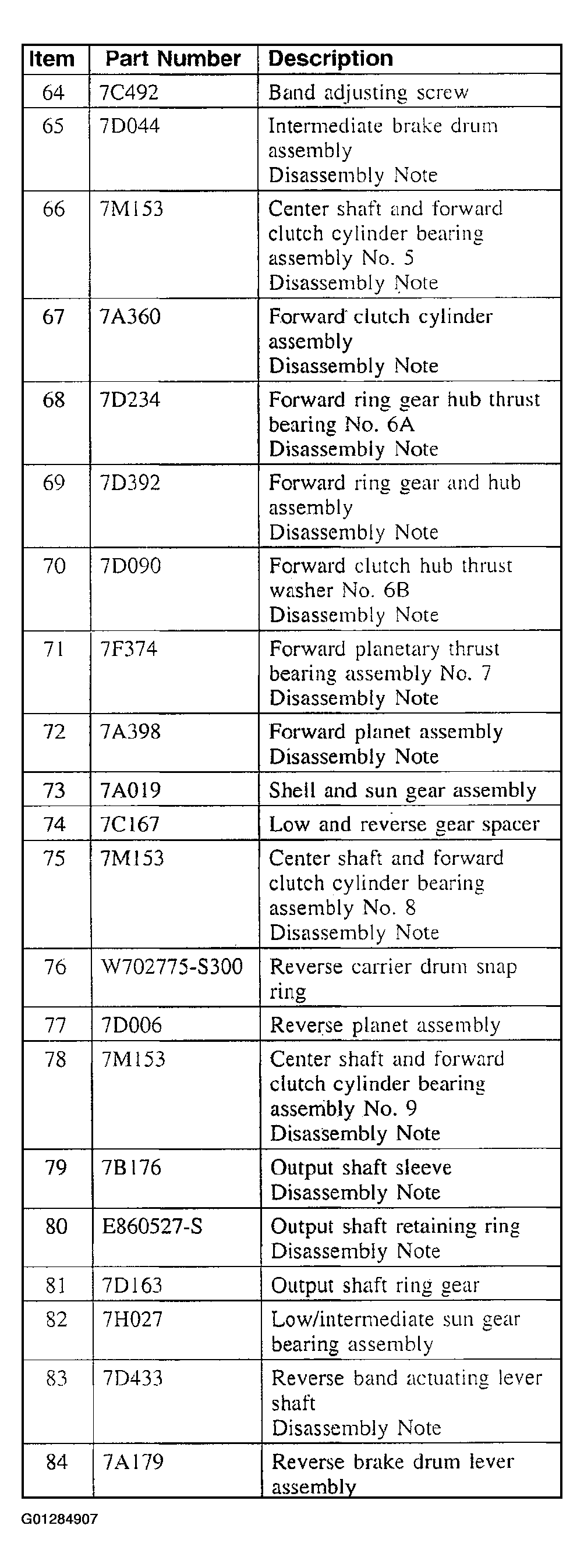

Fig 9: Parts Description Chart (3 Of 3)

Courtesy of FORD MOTOR CO.
