Park System: Installation

Illustration 2 of 2. Assemble the components in the order indicated in the following 3 illustration and table.

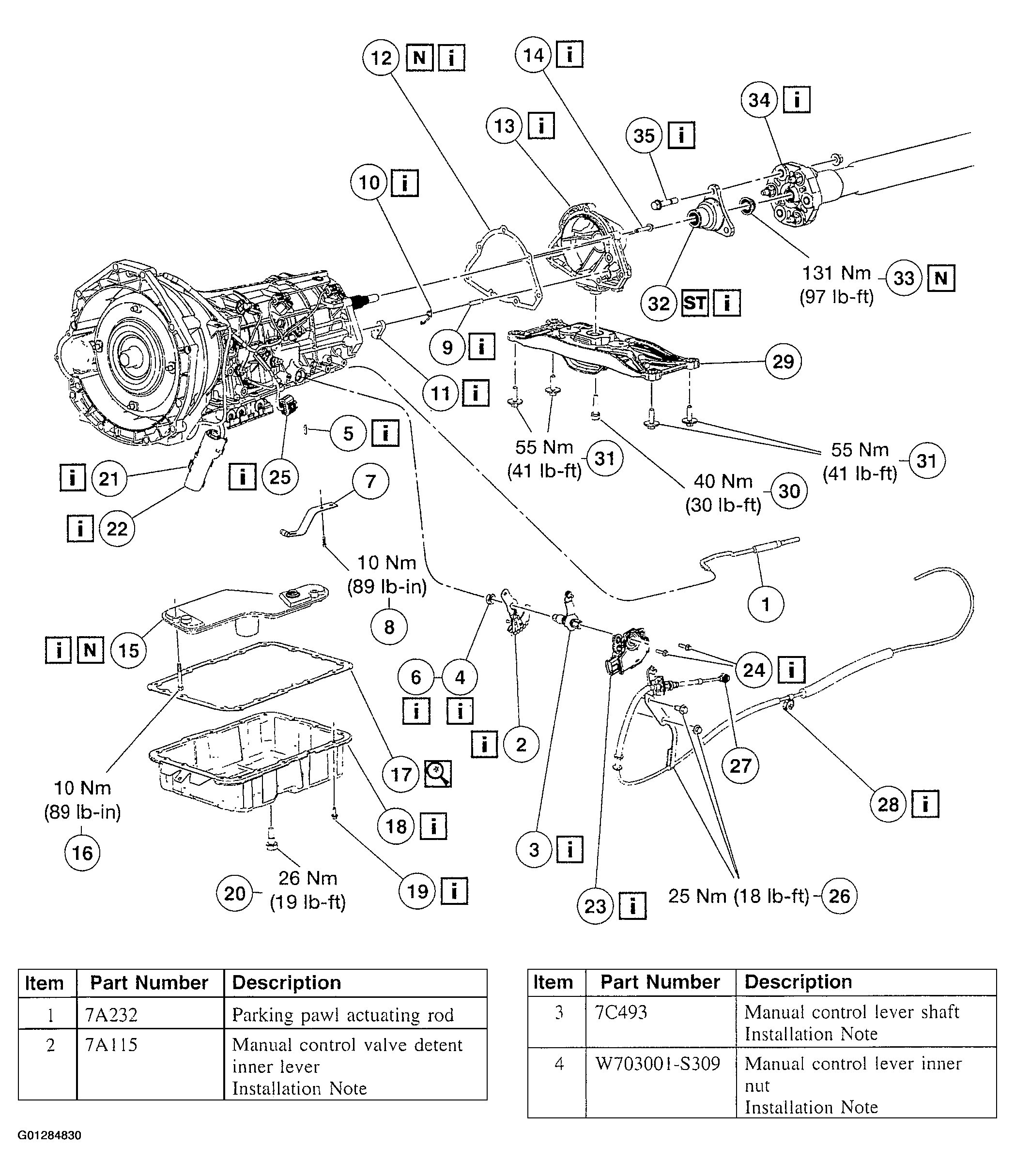

Fig 1: Identifying Manual Control Lever Shaft Components
Courtesy of FORD MOTOR CO.

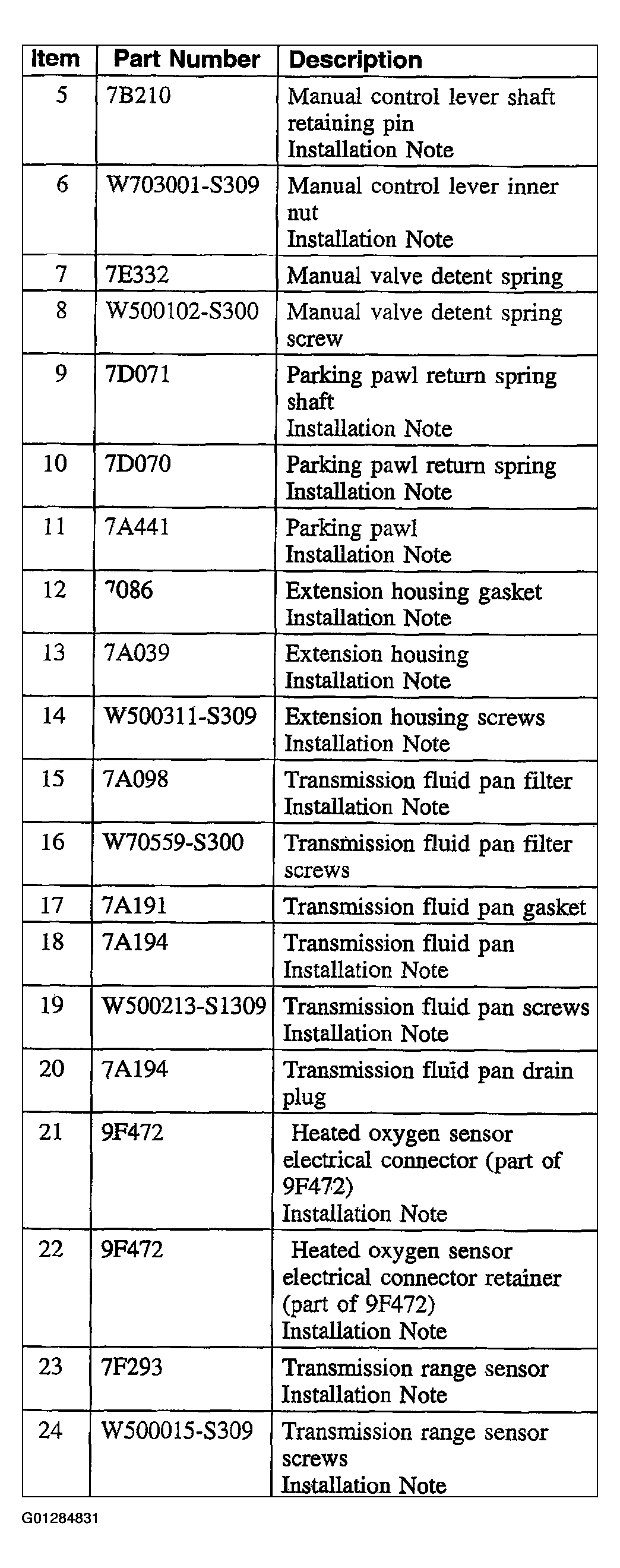

Fig 2: Parts Description Chart (1 Of 2)
Courtesy of FORD MOTOR CO.

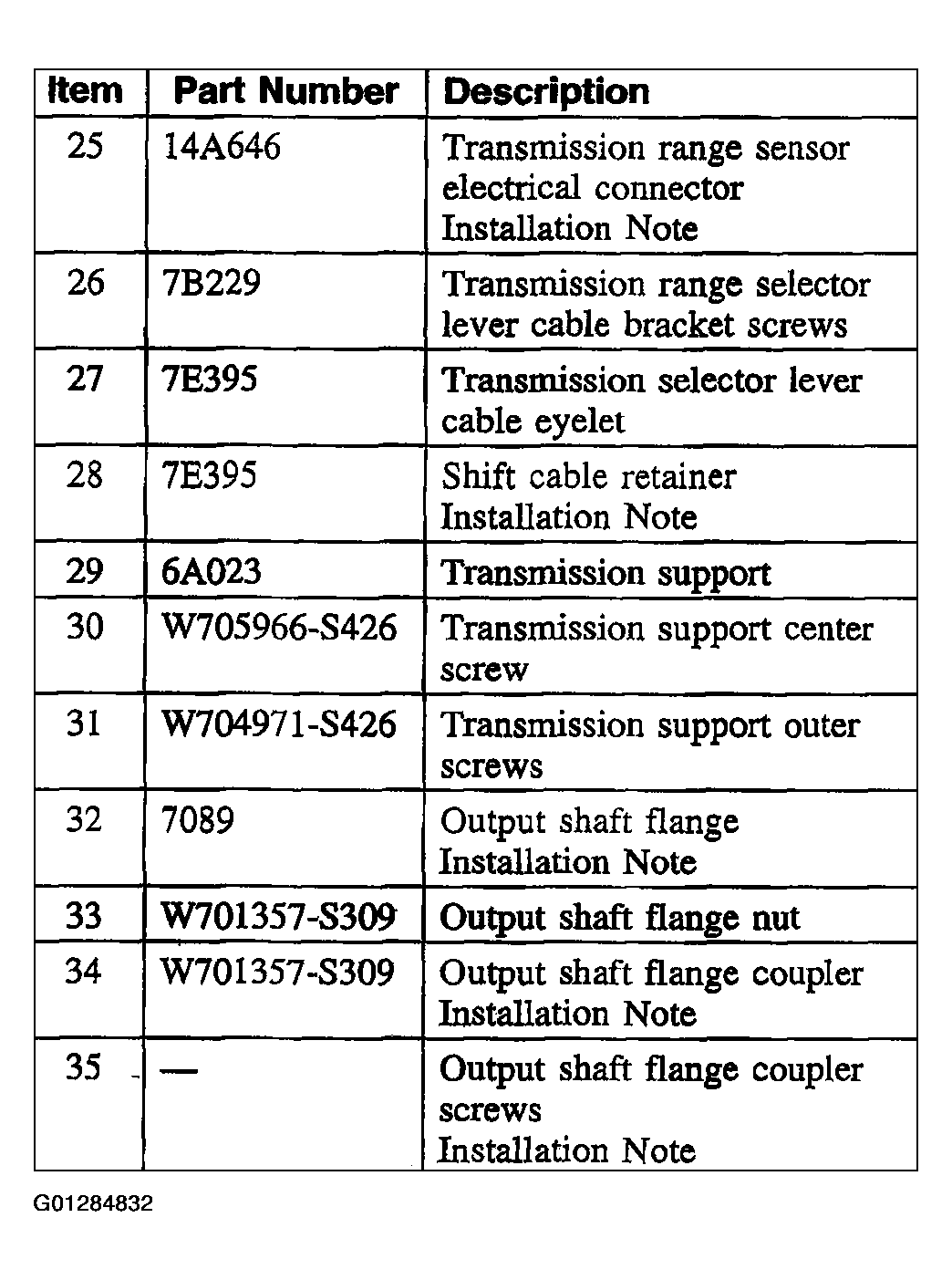

Fig 3: Parts Description Chart (2 Of 2)
Courtesy of FORD MOTOR CO.
Partially fill the transmission. For additional information, Refer to or TRANSMISSION FLUID DRAIN AND REFILL - WITHOUT TORQUE CONVERTER DRAIN PLUG .
