Transmission Fluid Cooler: Notes

Special Tool(s)

1. With the vehicle in NEUTRAL, position it on a hoist.
2. Remove the A/C condenser. For additional information, Refer to CLIMATE CONTROL SYSTEM .
3. Remove the components in the order indicated in the following 2 illustration and table. To remove individual components, carry out the following steps.

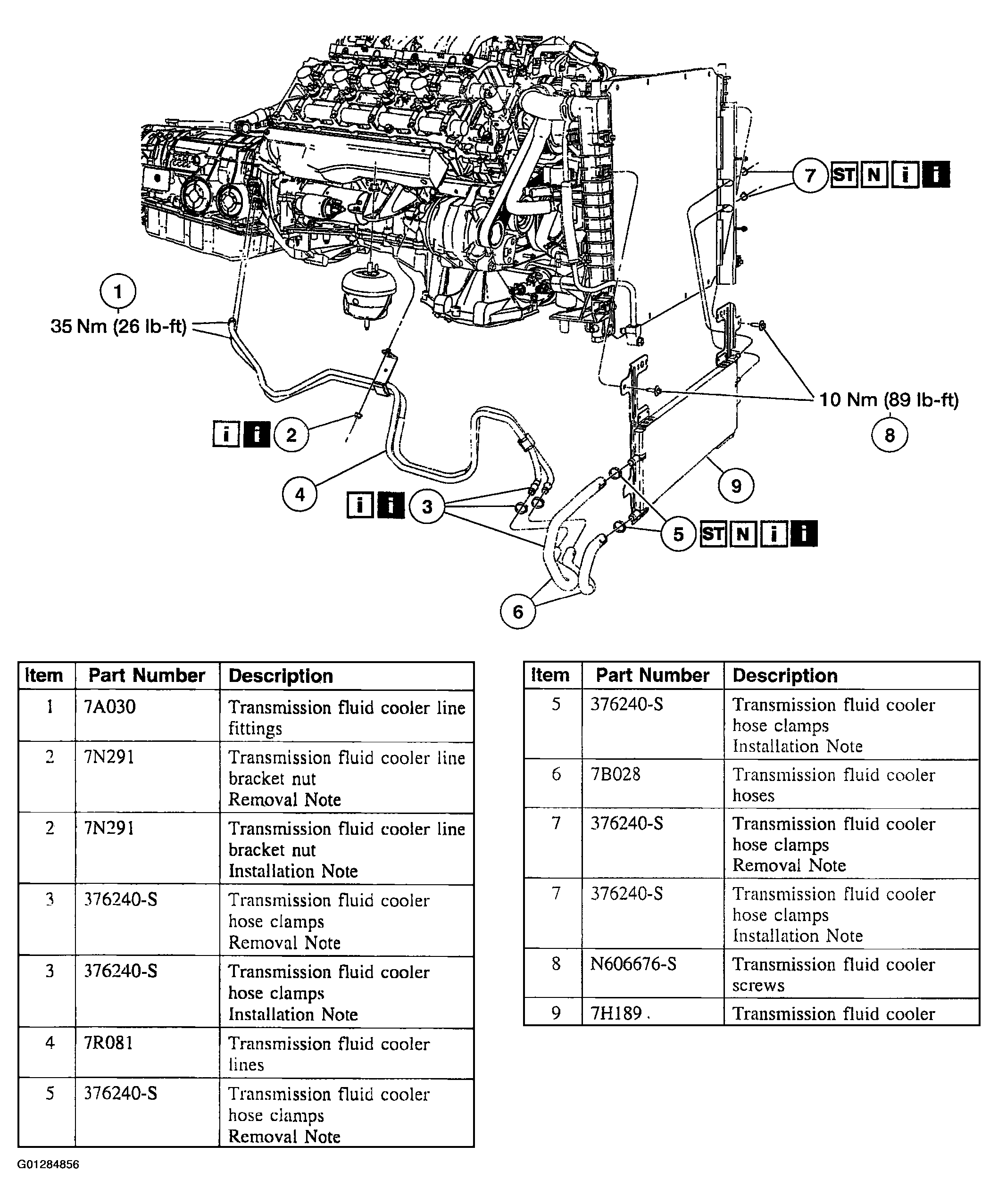

   Fig 2: Component Stepping Chart

   Courtesy of FORD MOTOR CO.
4. To install, reverse the removal procedure.
   Fig 3: Identifying Transmission Fluid Cooler Components

   Courtesy of FORD MOTOR CO.
