End Play Specifications

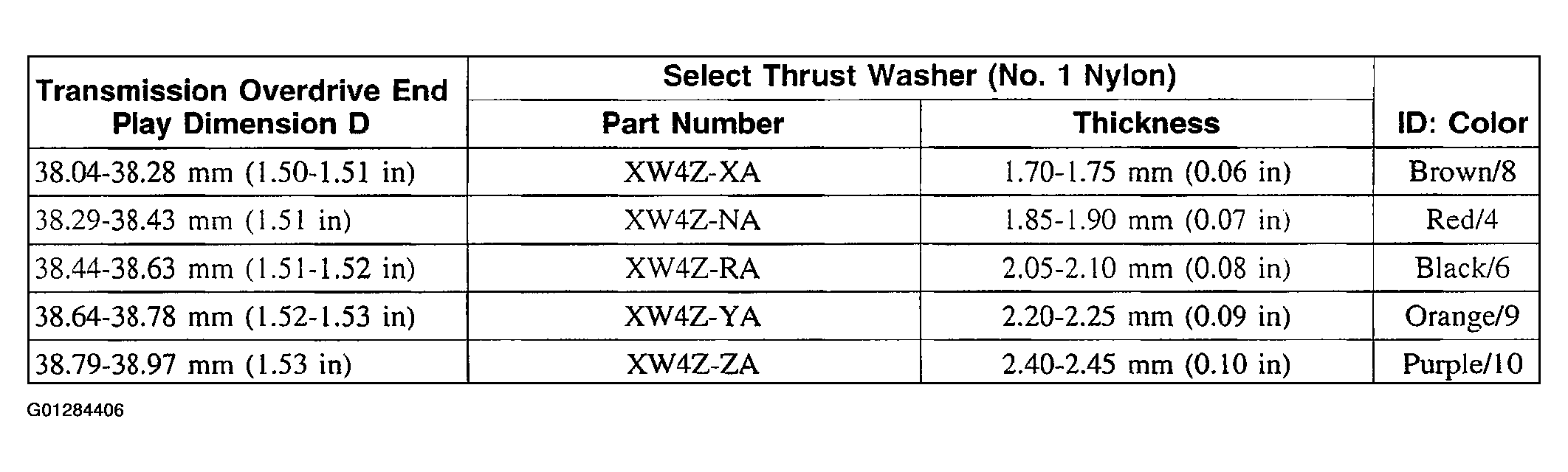

Fig 1: End Play Specifications (1 Of 2)
G01284406Courtesy of FORD MOTOR CO.

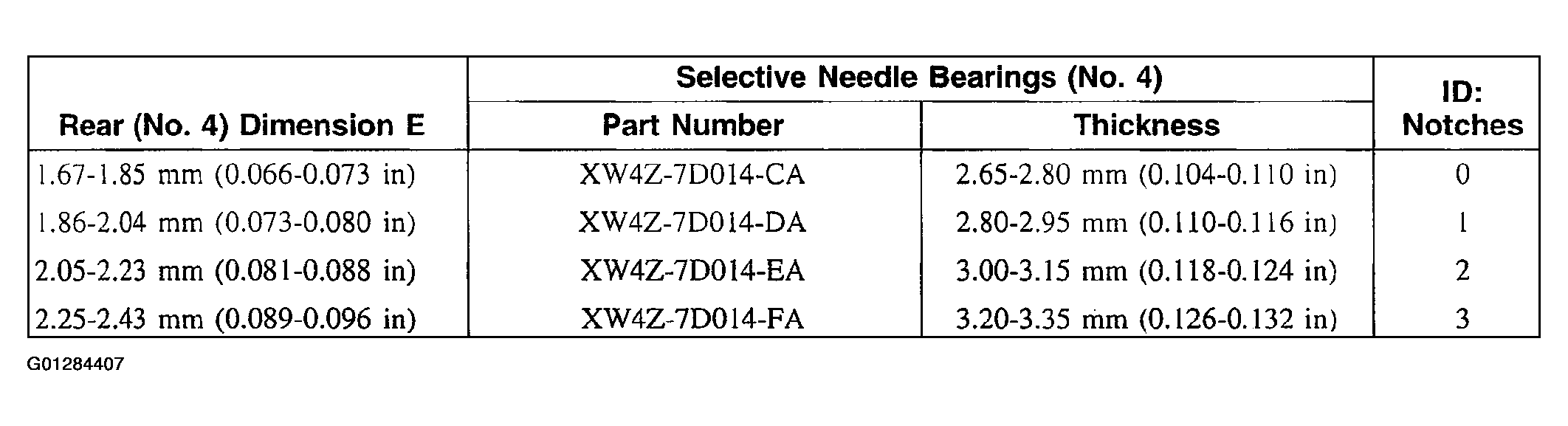

Fig 1: End Play Specifications (2 Of 2)
G01284407Courtesy of FORD MOTOR CO.
