Lincoln
›
2003
›
LS 3.9 A
›
Repair and Diagnosis
›
Transmission
›
Automatic Trans
›
Automatic Transmission - LS
›
Specifications
›
Line Pressure Chart - 3.9L Engine
Line Pressure Chart - 3.9L Engine

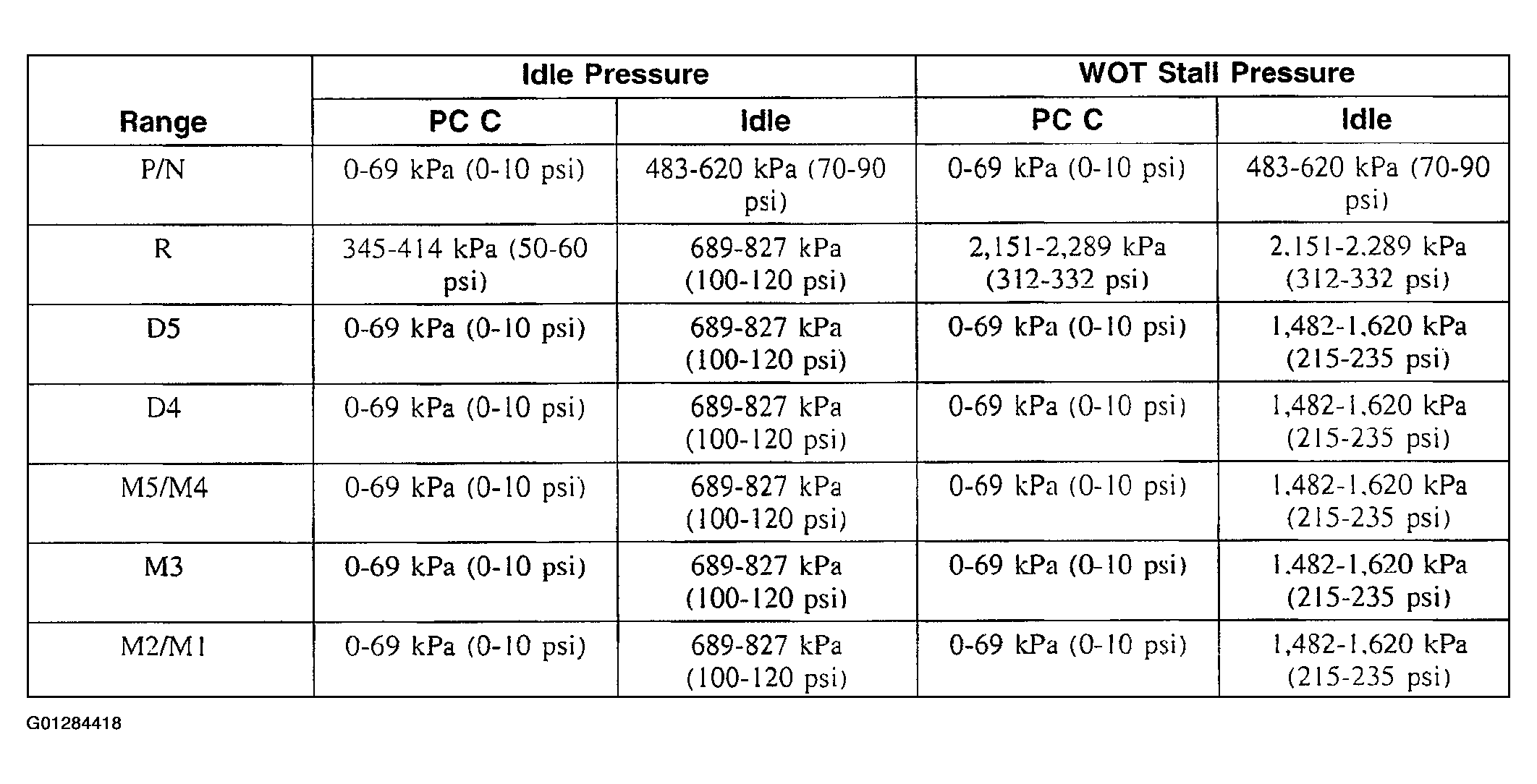

Fig 1: Line Pressure Chart - 3.9L Engine
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
