Lower Intake Manifold: Removal

1. Remove the upper intake manifold. For additional information, refer to UPPER INTAKE MANIFOLD .

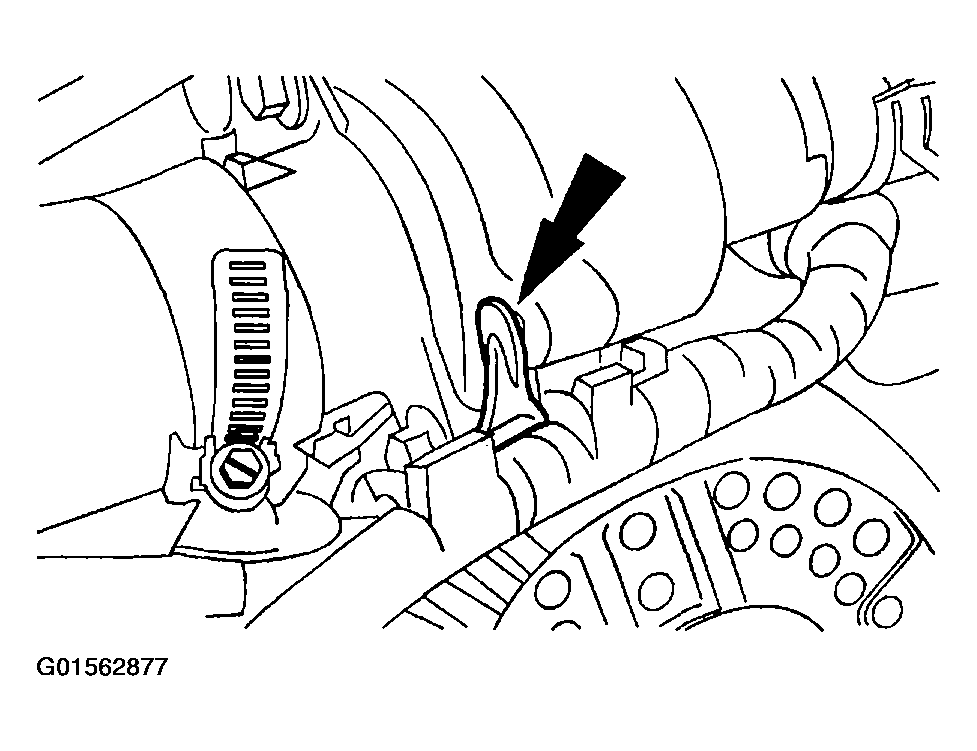

2. Disconnect the fuel hose spring lock couplings. For additional information, refer to FUEL SYSTEM-GENERAL INFORMATION .
3. Disconnect the engine water bypass hose.
   Fig 1: Disconnecting Engine Water Bypass Hose

   Courtesy of FORD MOTOR CO.

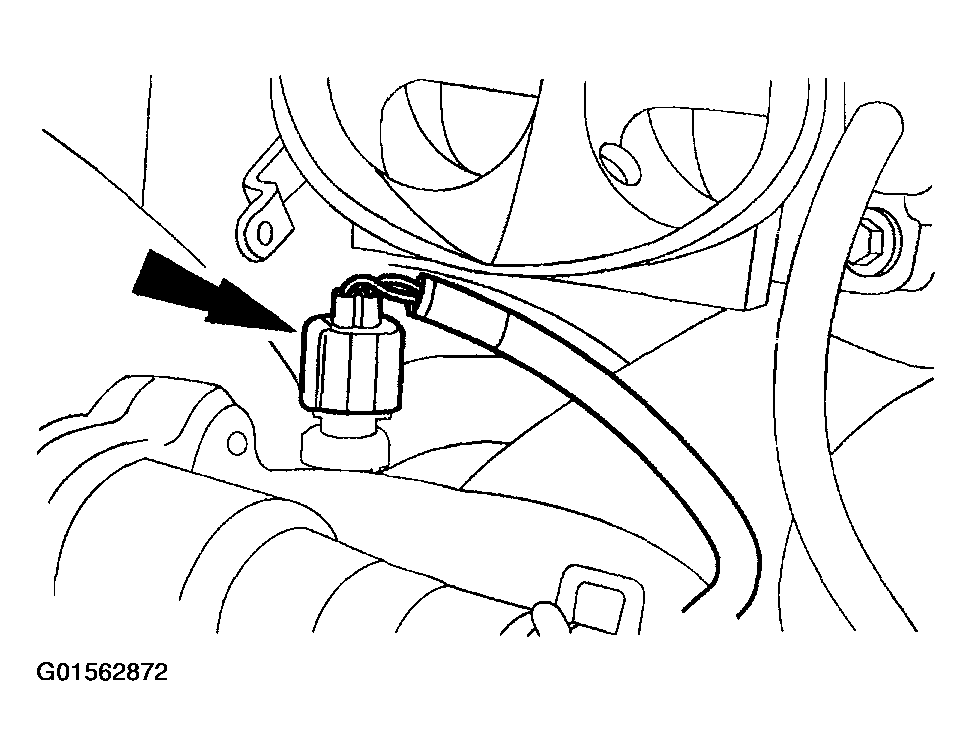

4. Disconnect the water temperature indicator sender electrical connector.
   Fig 2: Disconnecting Water Temperature Indicator Sender Electrical Connector

   Courtesy of FORD MOTOR CO.

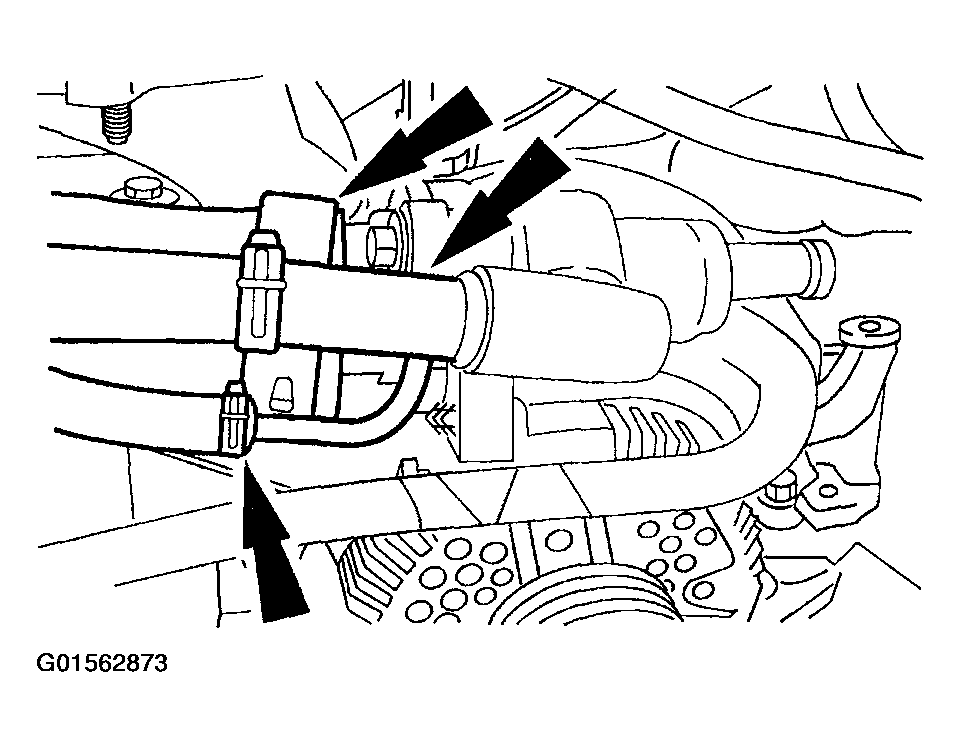

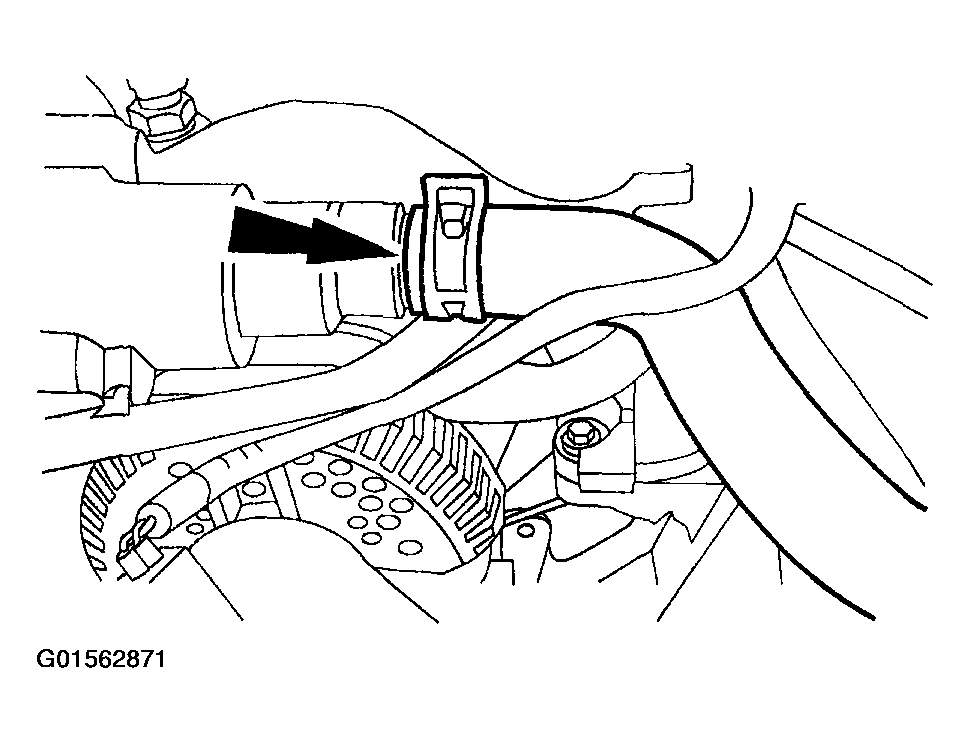

5. Disconnect the upper radiator hose, the heater water inlet hose and the heated positive crankcase ventilation (PCV) water heated fitting inlet hose.
   Fig 3: Disconnecting Upper Radiator Hose

   Courtesy of FORD MOTOR CO.

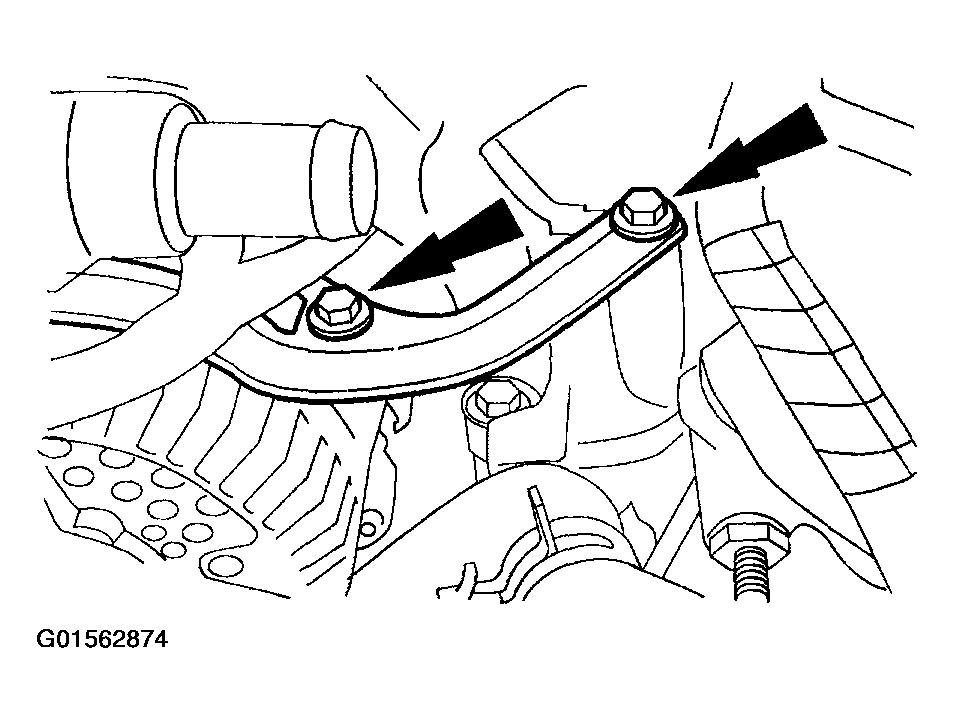

6. Remove the four bolts and the generator upper support bracket.
   Fig 4: Removing Bolts And Generator Upper Support Bracket

   Courtesy of FORD MOTOR CO.

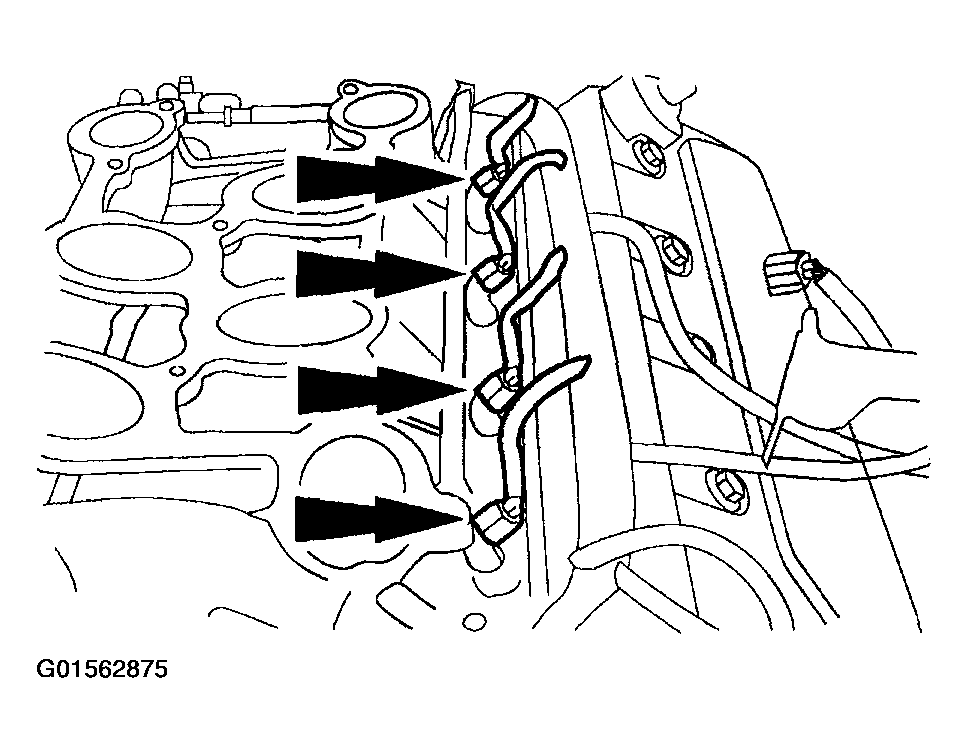

7. Disconnect the eight fuel injectors.
   Fig 5: Disconnecting Fuel Injectors

   Courtesy of FORD MOTOR CO.

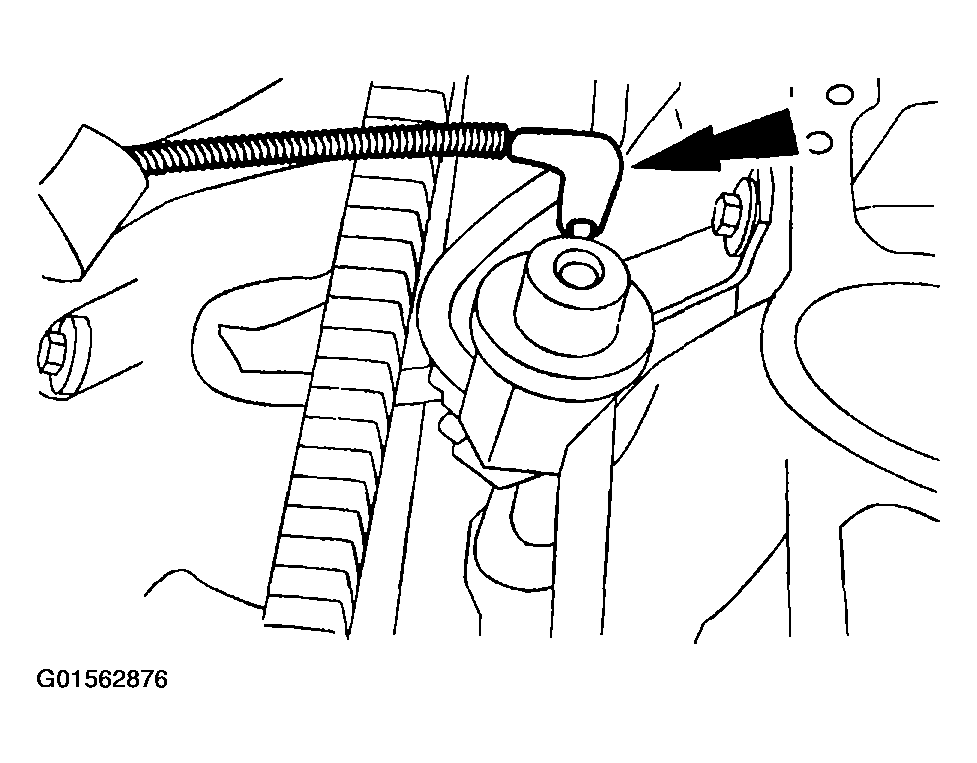

8. Disconnect the fuel injector pressure regulator vacuum hose and position out of the way.
   Fig 6: Disconnecting Fuel Injector Pressure Regulator Vacuum Hose

   Courtesy of FORD MOTOR CO.

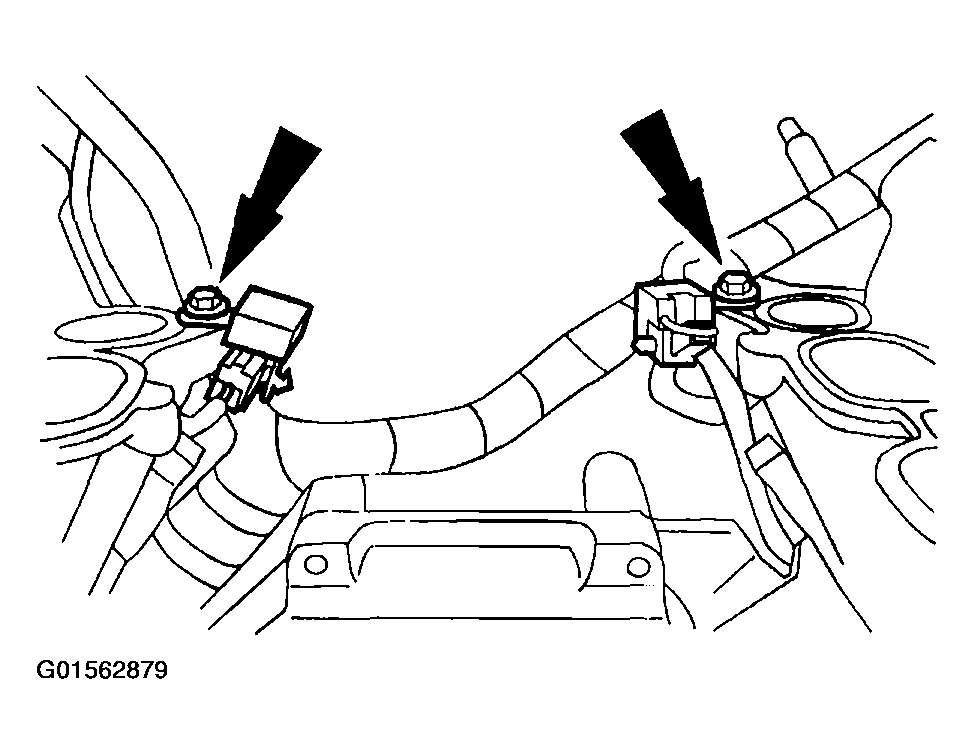

9. Disconnect the wire harness pin-type retainer.
   Fig 7: Disconnecting Wire Harness Pin-Type Retainer

   Courtesy of FORD MOTOR CO.

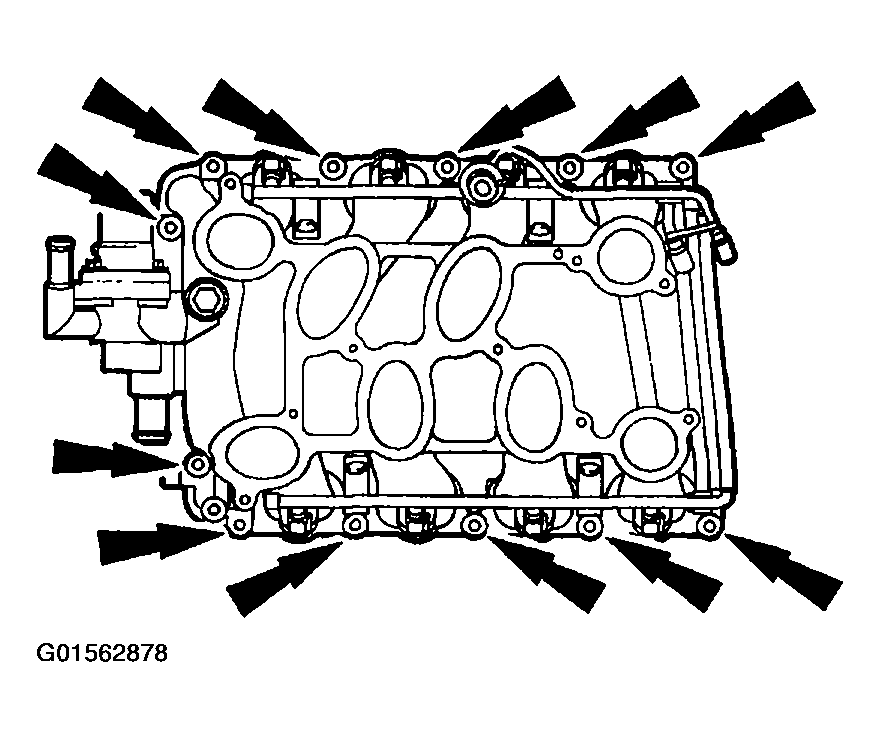

10. Remove the bolts and lower intake manifold.
    • Discard the bolts.
      Fig 8: Removing Bolts And Lower Intake Manifold

      Courtesy of FORD MOTOR CO.
11. Remove the bolts and the radio ignition interference capacitors.
    Fig 9: Removing Bolts And Radio Ignition Interference Capacitors

    Courtesy of FORD MOTOR CO.

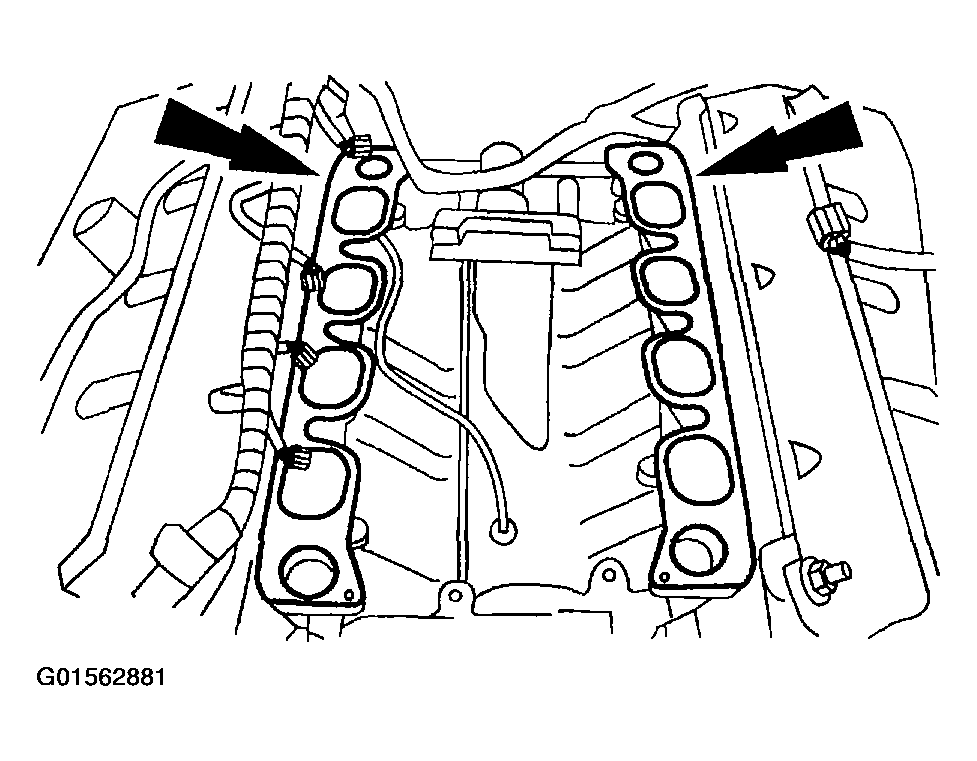

12. Remove and inspect the gaskets, and install new gaskets if necessary.
    Fig 10: Removing And Inspecting Gaskets

    Courtesy of FORD MOTOR CO.
CAUTION: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths. Use a plastic scraping tool to remove all traces of old sealant.

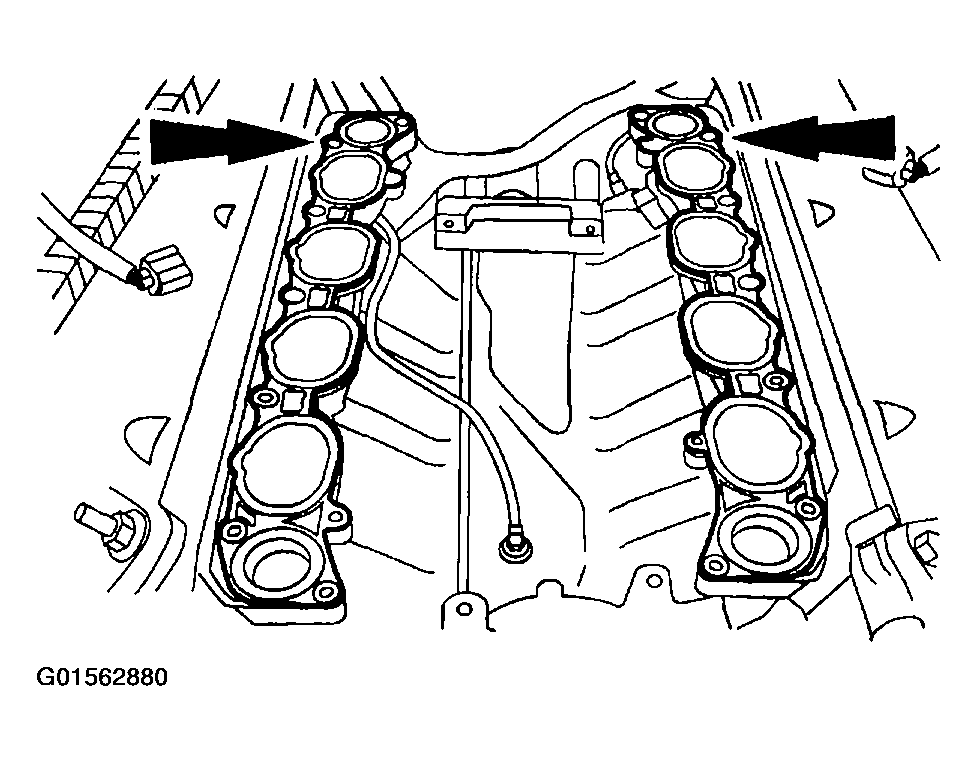

13. Clean the sealing surfaces.

Fig 11: Cleaning Sealing Surfaces

Courtesy of FORD MOTOR CO.
