WARNING: This page is about a different car, the 2003 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

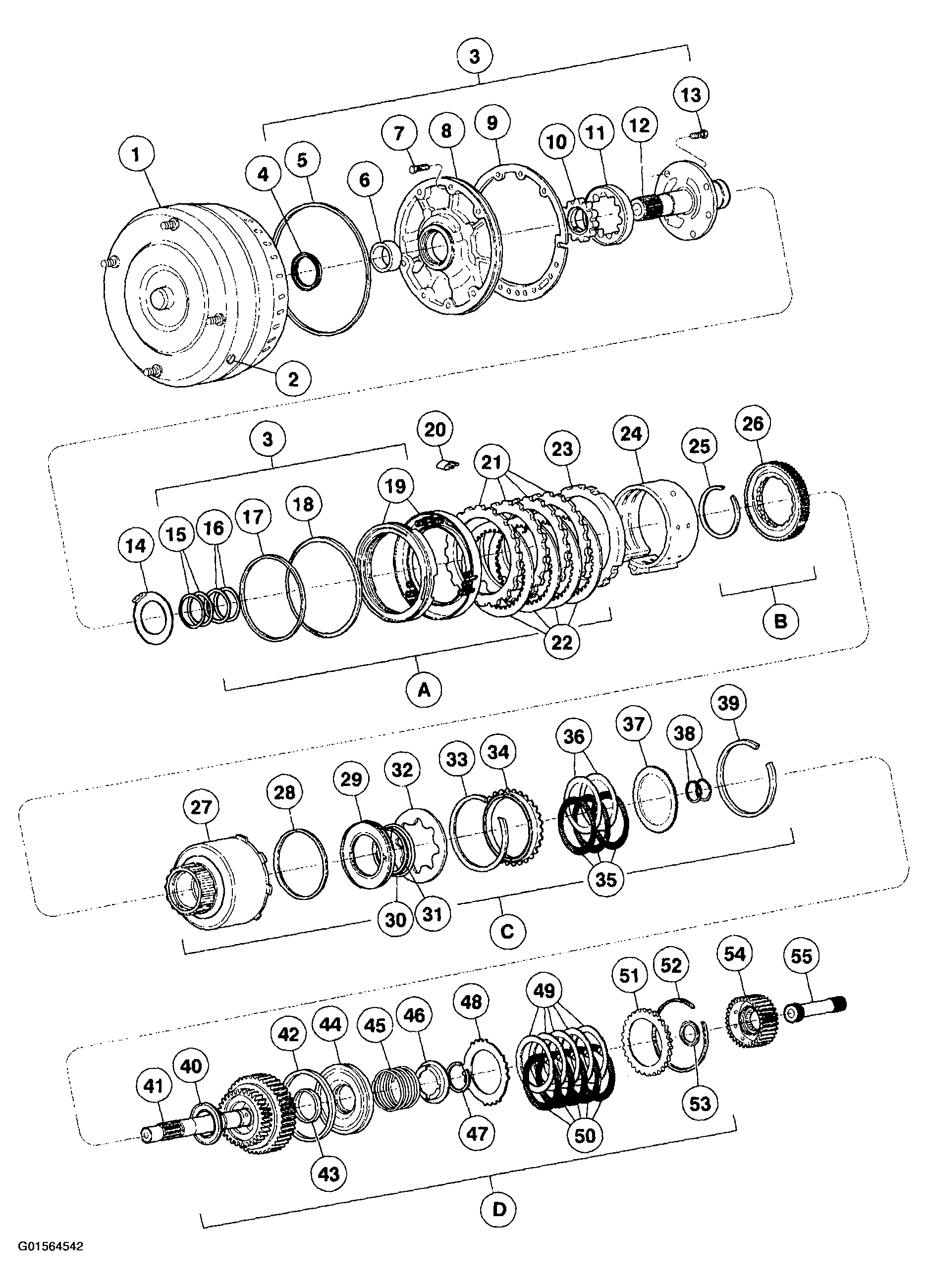

Fig 1: Exploded View Of Automatic Transmission System Components (1 Of 2)
Courtesy of FORD MOTOR CO.

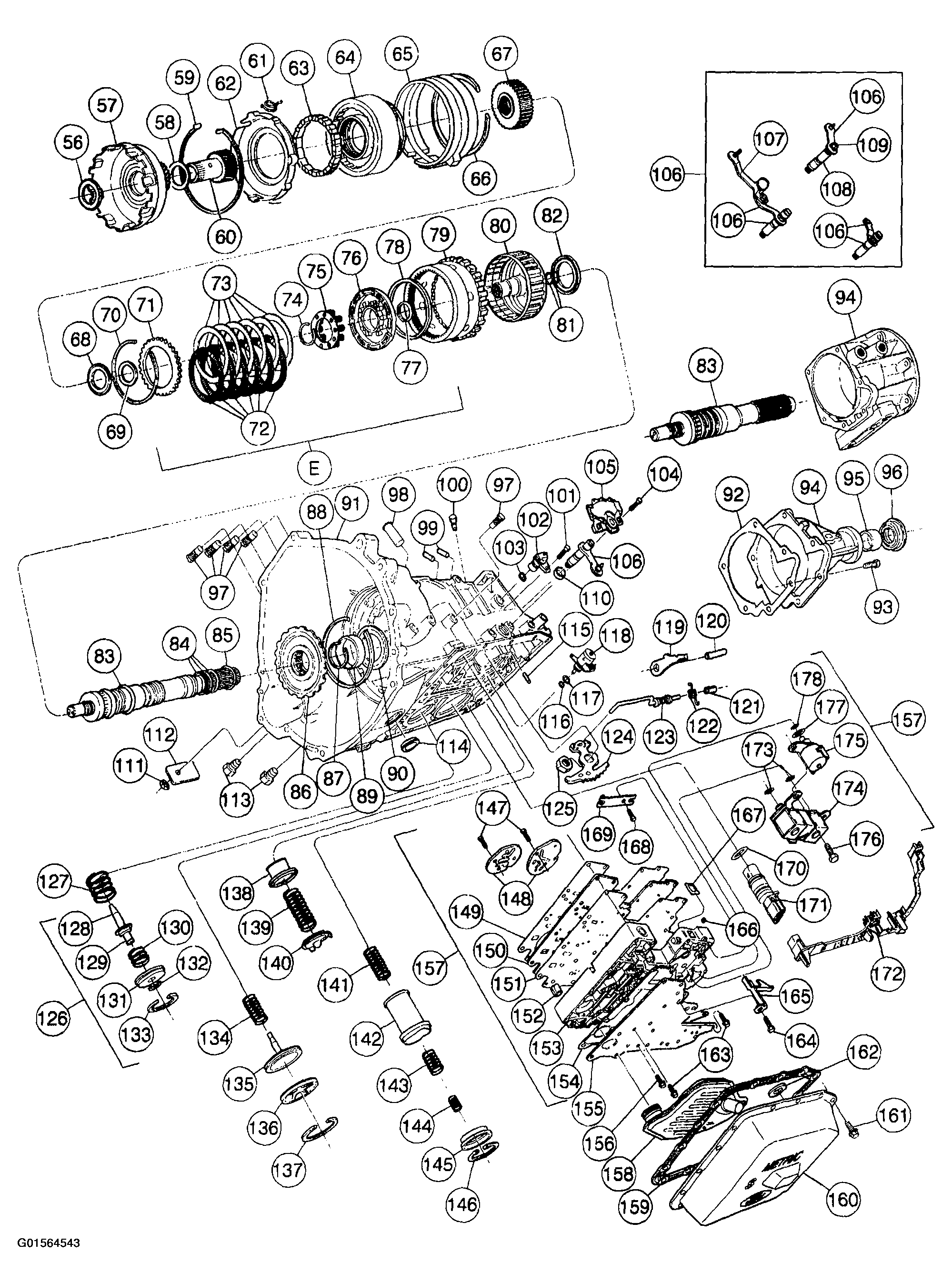

Fig 2: Exploded View Of Automatic Transmission System Components (2 Of 2)
Courtesy of FORD MOTOR CO.

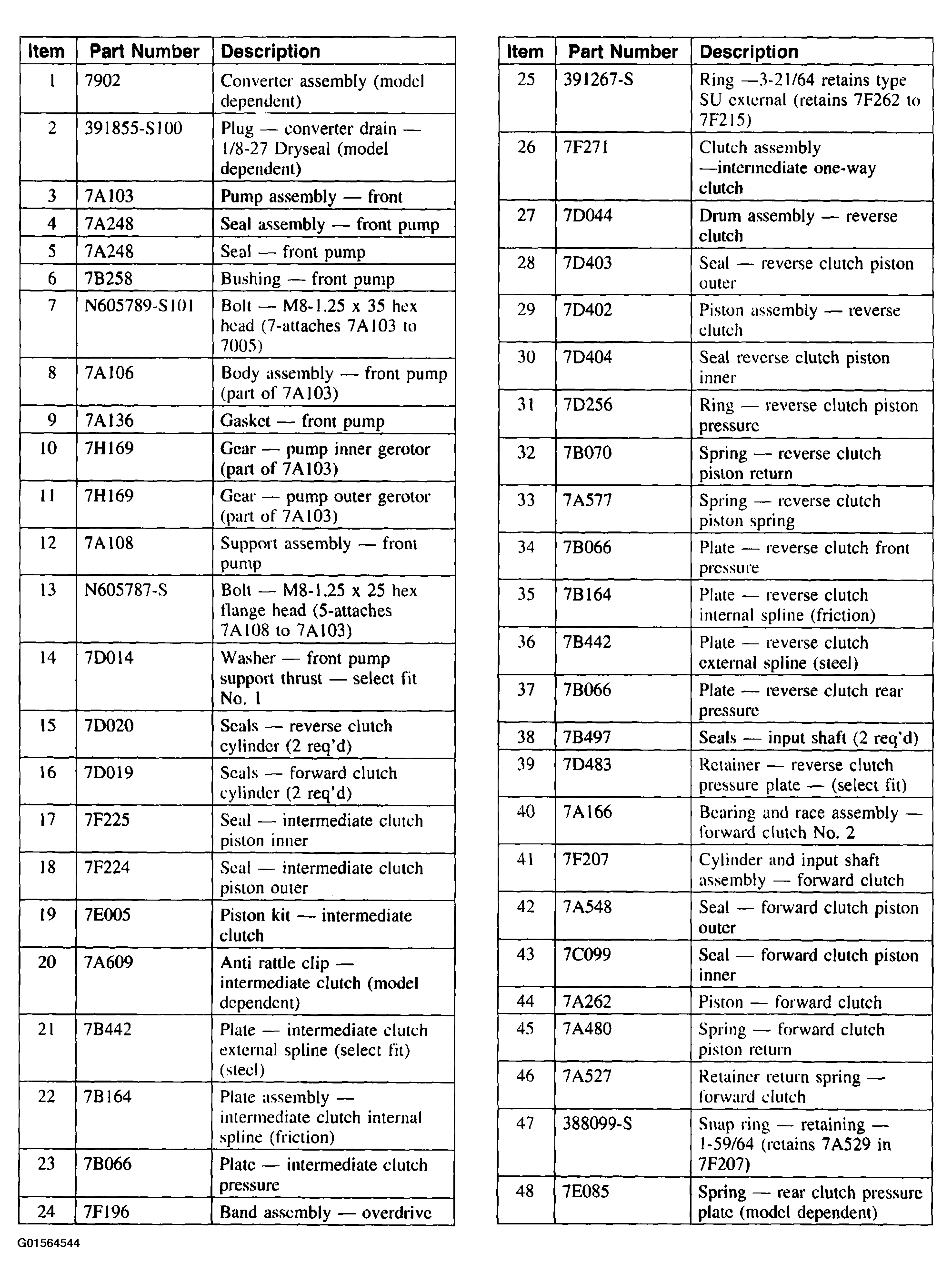

Fig 3: Automatic Transmission System Components Description Chart (1 Of 4)
Courtesy of FORD MOTOR CO.

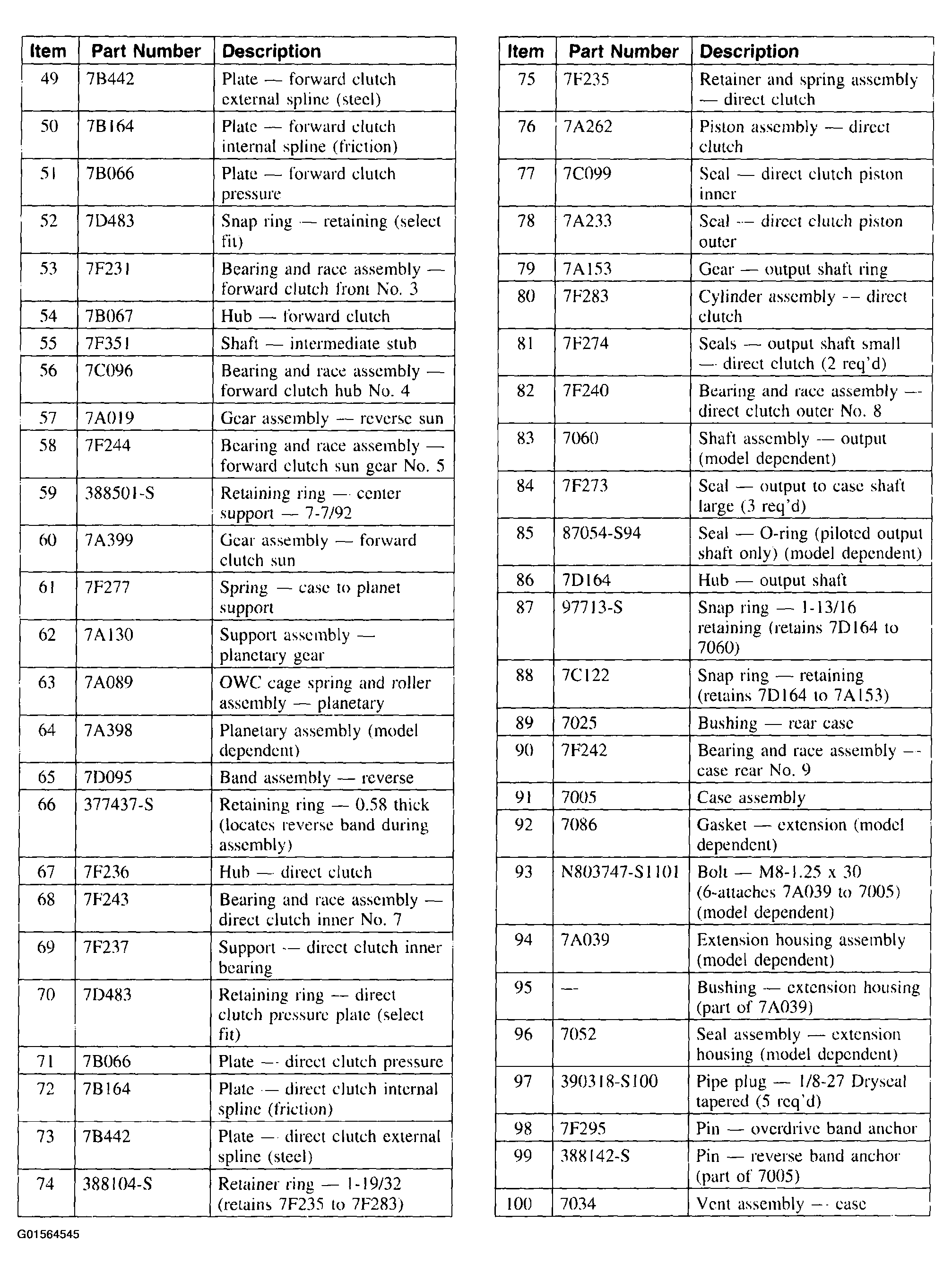

Fig 4: Automatic Transmission System Components Description Chart (2 Of 4)
Courtesy of FORD MOTOR CO.

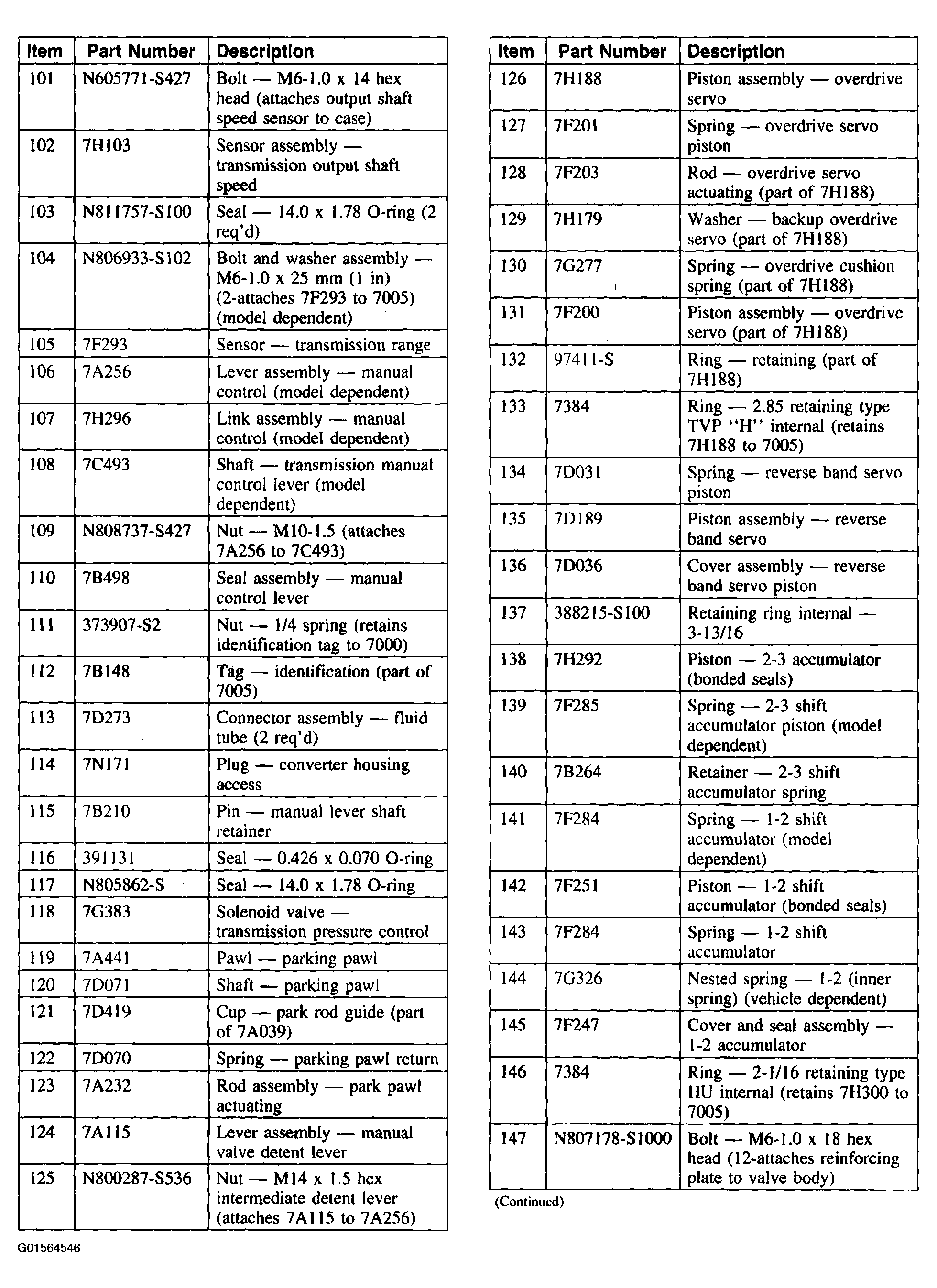

Fig 5: Automatic Transmission System Components Description Chart (3 Of 4)
Courtesy of FORD MOTOR CO.

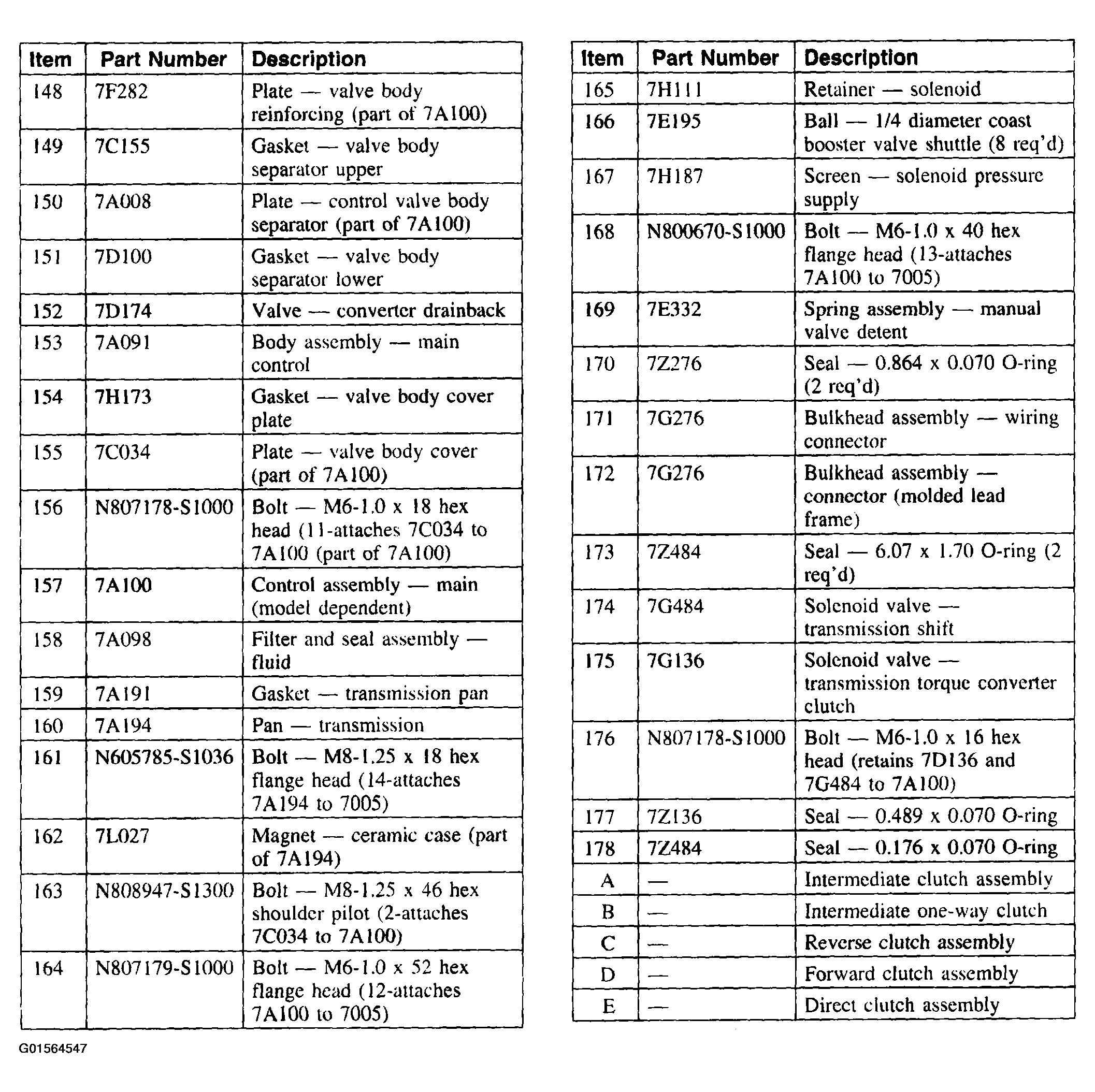

Fig 6: Automatic Transmission System Components Description Chart (4 Of 4)
