Diagnostic Flow Chart

WARNING: This page is about a different car, the 2003 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

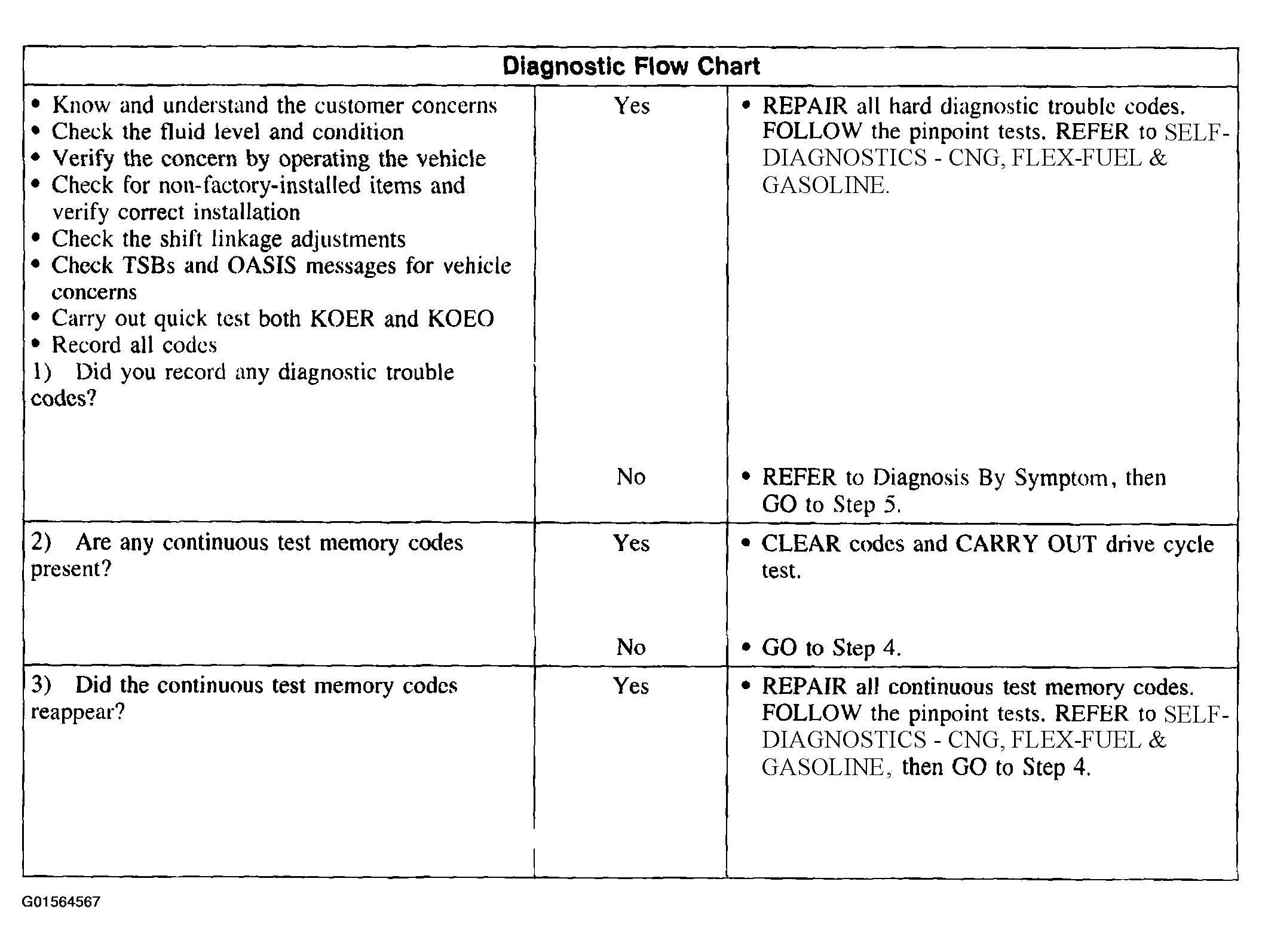

Fig 1: Identifying Diagnostic Flow Chart (1 Of 2)

Courtesy of FORD MOTOR CO.

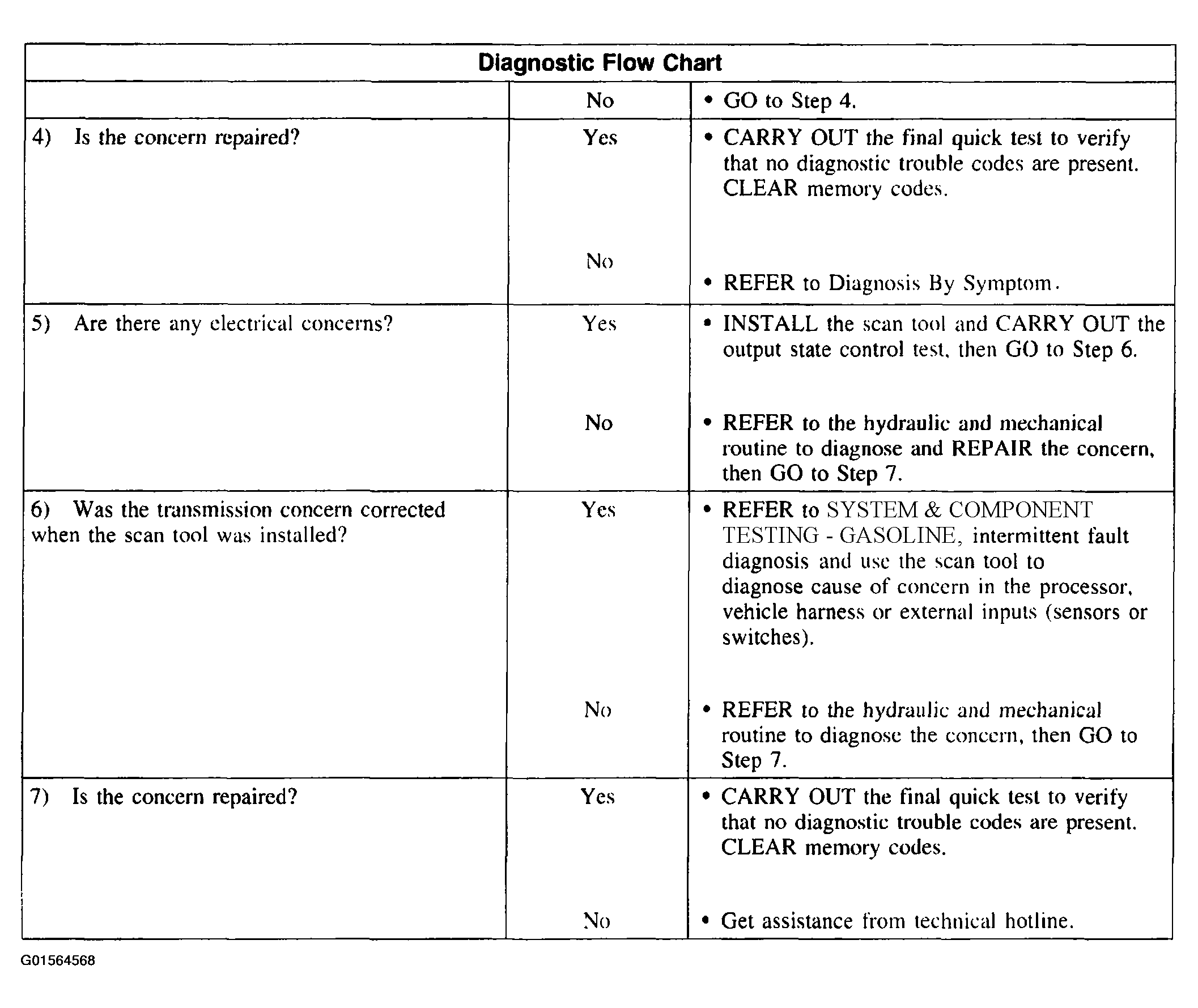

Fig 2: Identifying Diagnostic Flow Chart (2 Of 2)

Courtesy of FORD MOTOR CO.
