Inspection and Verification
- Verify the customer's concern by operating the active restraint system to duplicate the condition.

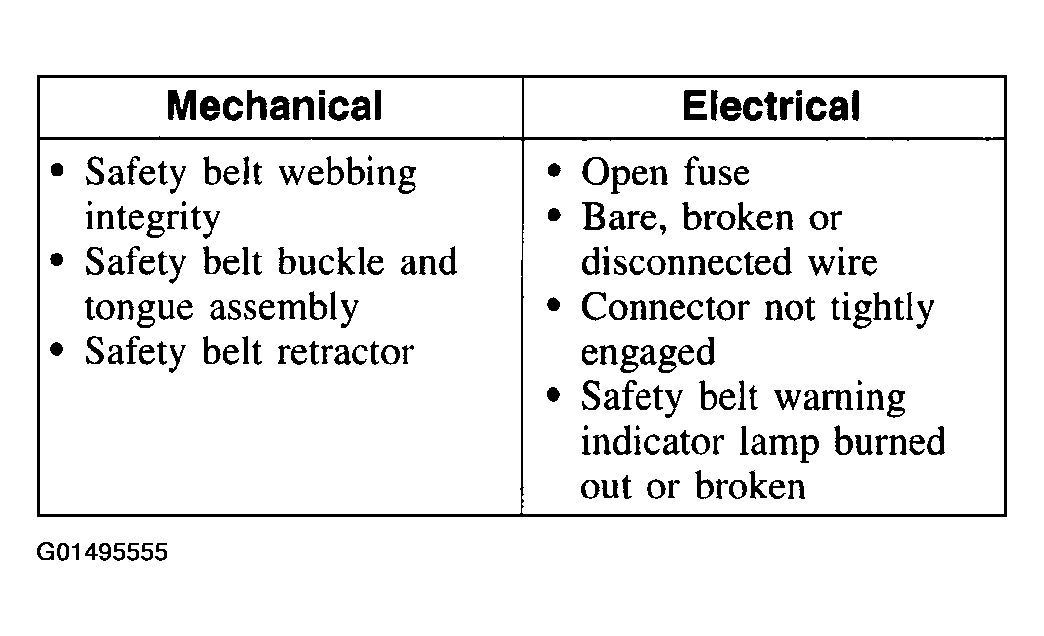

- Inspect to determine if any of the following mechanical or electrical concerns apply:
Courtesy of FORD MOTOR CO.
- If the inspection reveals an obvious concern(s) that can be readily identified, service as required. With the exception of removing a twist from the safety belt webbing, do not attempt to repair a component of the safety belt system; new components must be installed.
- If the concern remains after the inspection, determine the symptom. GO to SYMPTOM CHART .
- To check the active restraint system for correct operation, carry out the appropriate Functional Test(s).
