Main Components And Functions

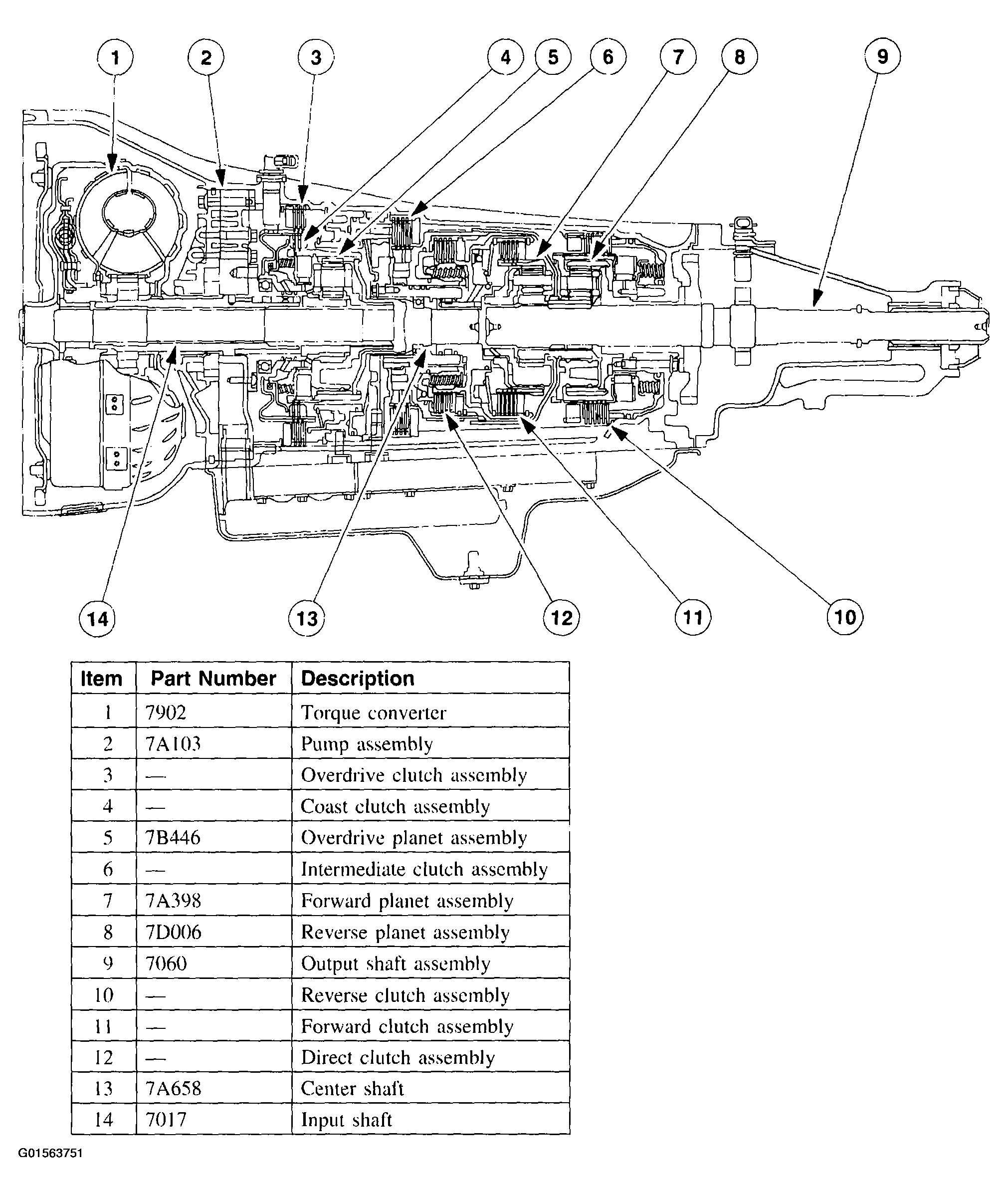

Fig 1: Automatic Transmission - Cross Sectional View And Item Description Chart

Courtesy of FORD MOTOR CO.

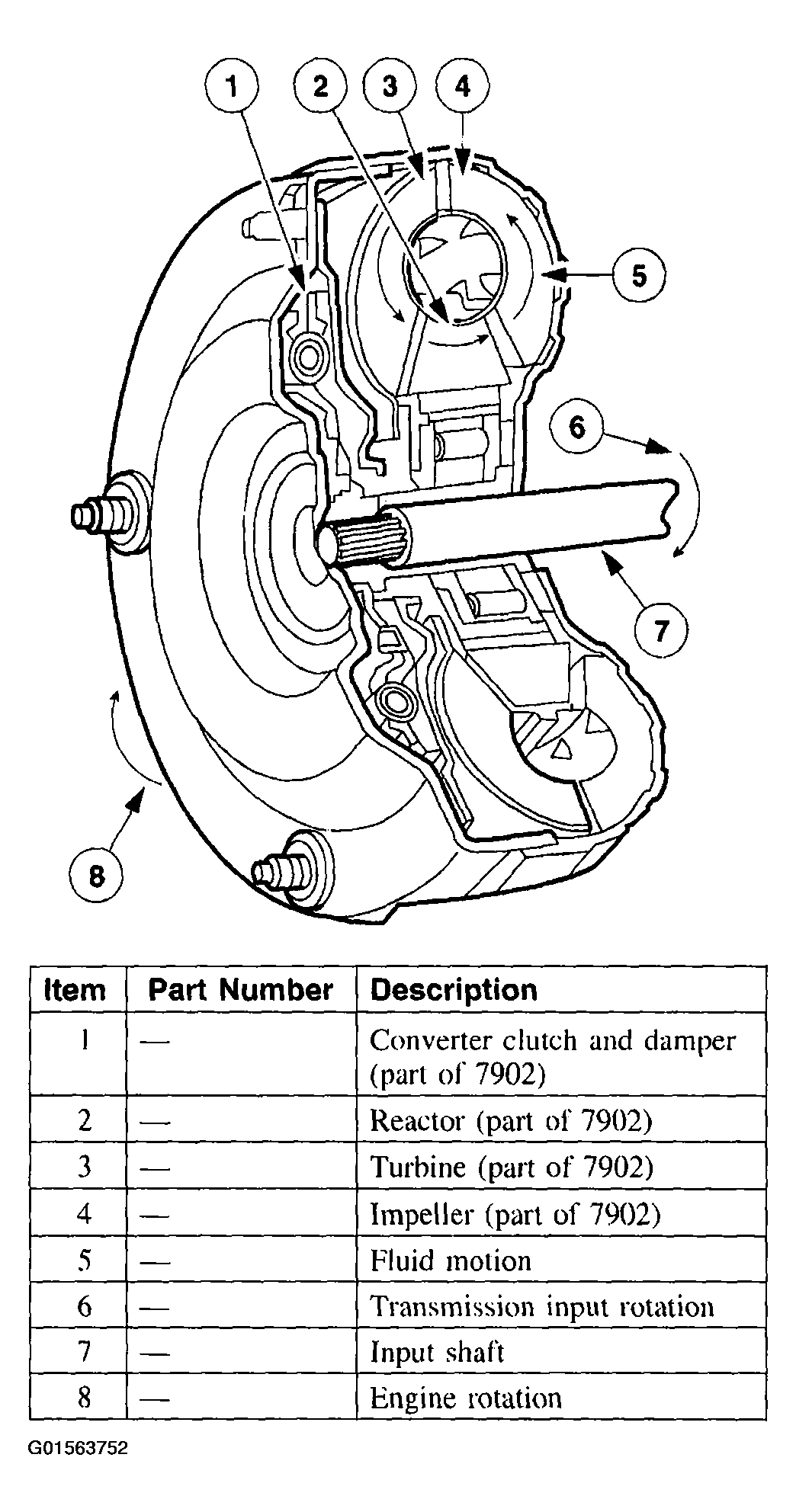

Fig 2: View Of Torque Convertor And Item Description Chart

Courtesy of FORD MOTOR CO.
