Diagnosis By Symptom: Notes

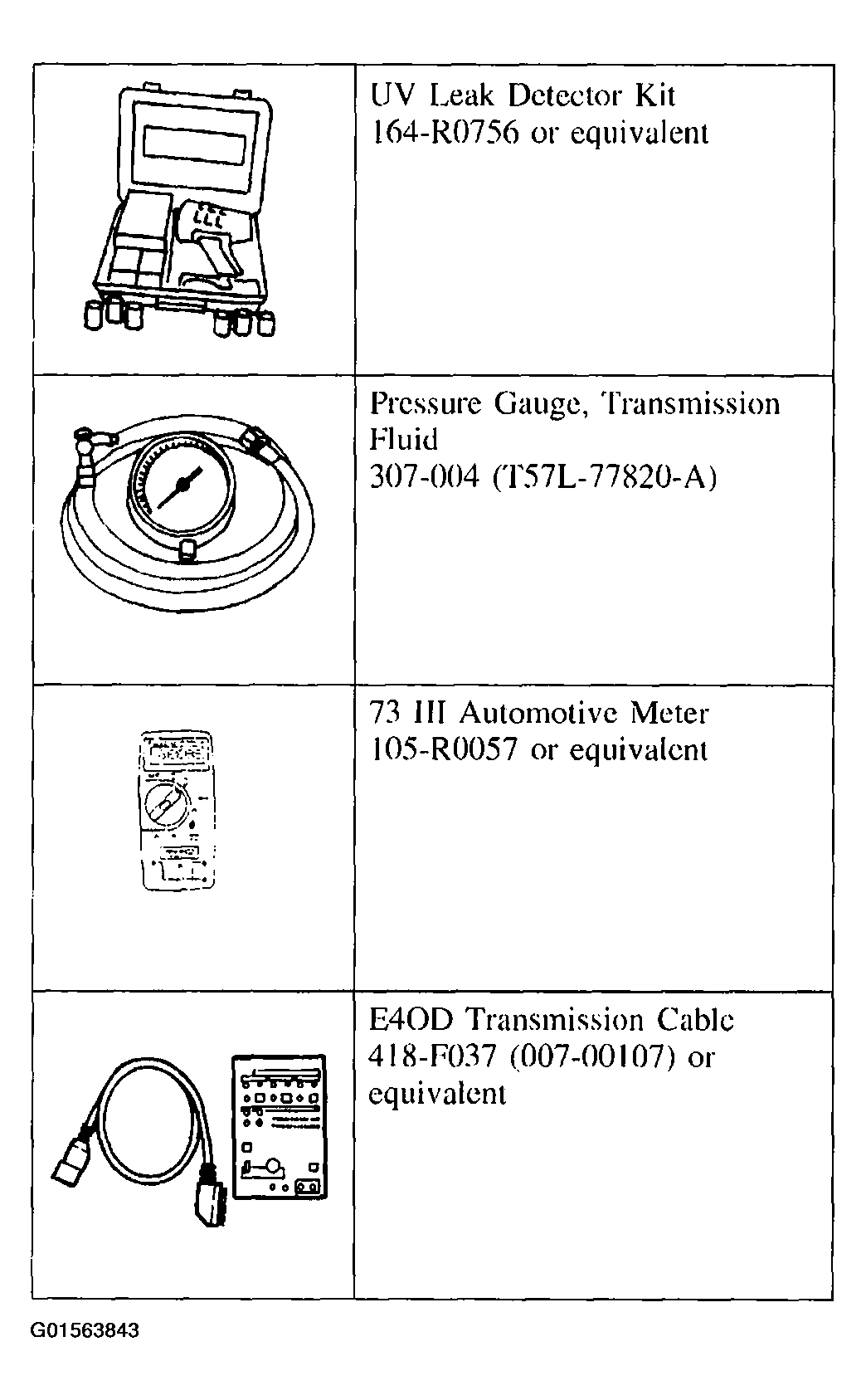

Fig 1: Identifying Special Tools (1 Of 2)

Courtesy of FORD MOTOR CO.

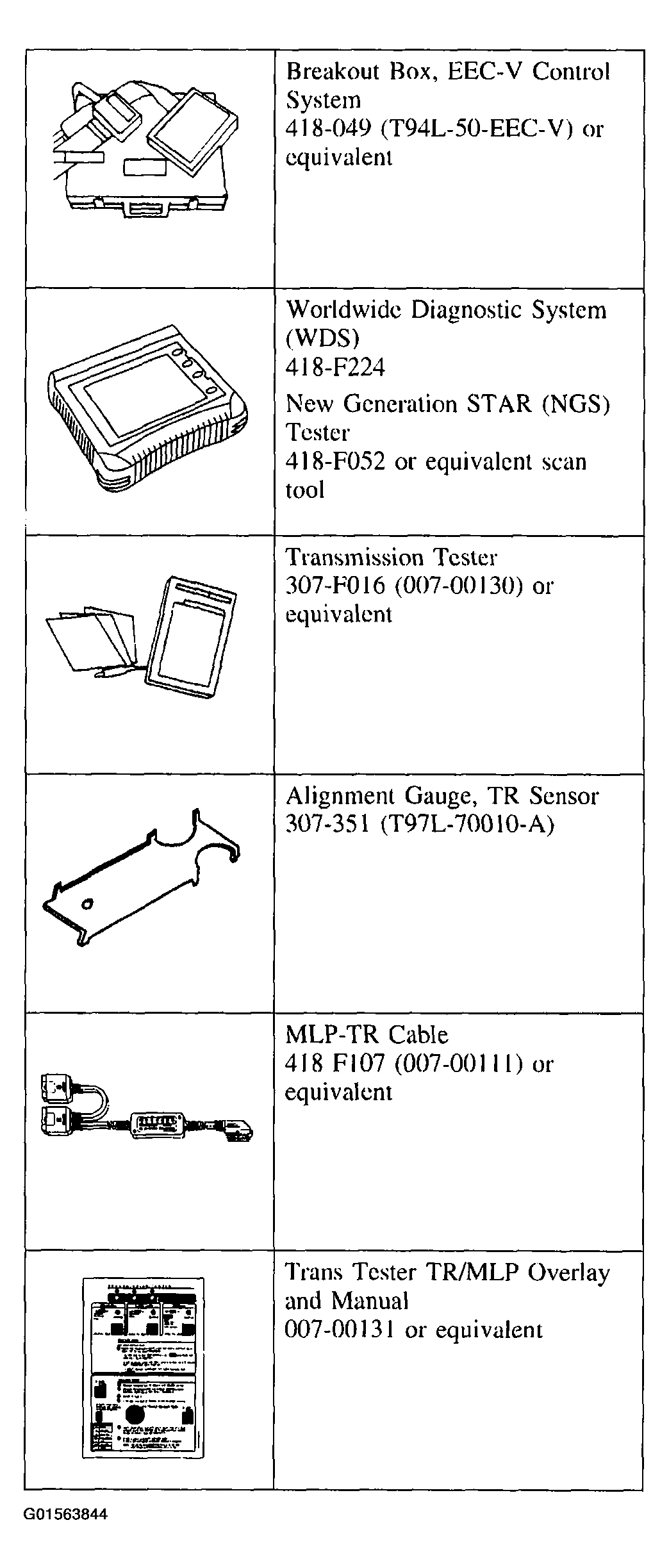

Fig 2: Identifying Special Tools (2 Of 2)

Courtesy of FORD MOTOR CO.

The Diagnosis by Symptom Charts give the technician diagnostic information and direction and list possible components, using a SYMPTOM as a starting point.

The Diagnosis by Symptom Charts are divided into two categories: electrical routines, indicated by 200 series numbers, and hydraulic/mechanical routines, indicated by 300 series numbers. The electrical routines list the possible electrical components that could have caused or contributed to the symptom described. The hydraulic/mechanical routines list the possible hydraulic or mechanical components that could cause or contribute to the symptom described.
