Main Control Valve Body - Accumulator Body Check: Assembly

  1. Install the control valves and springs.

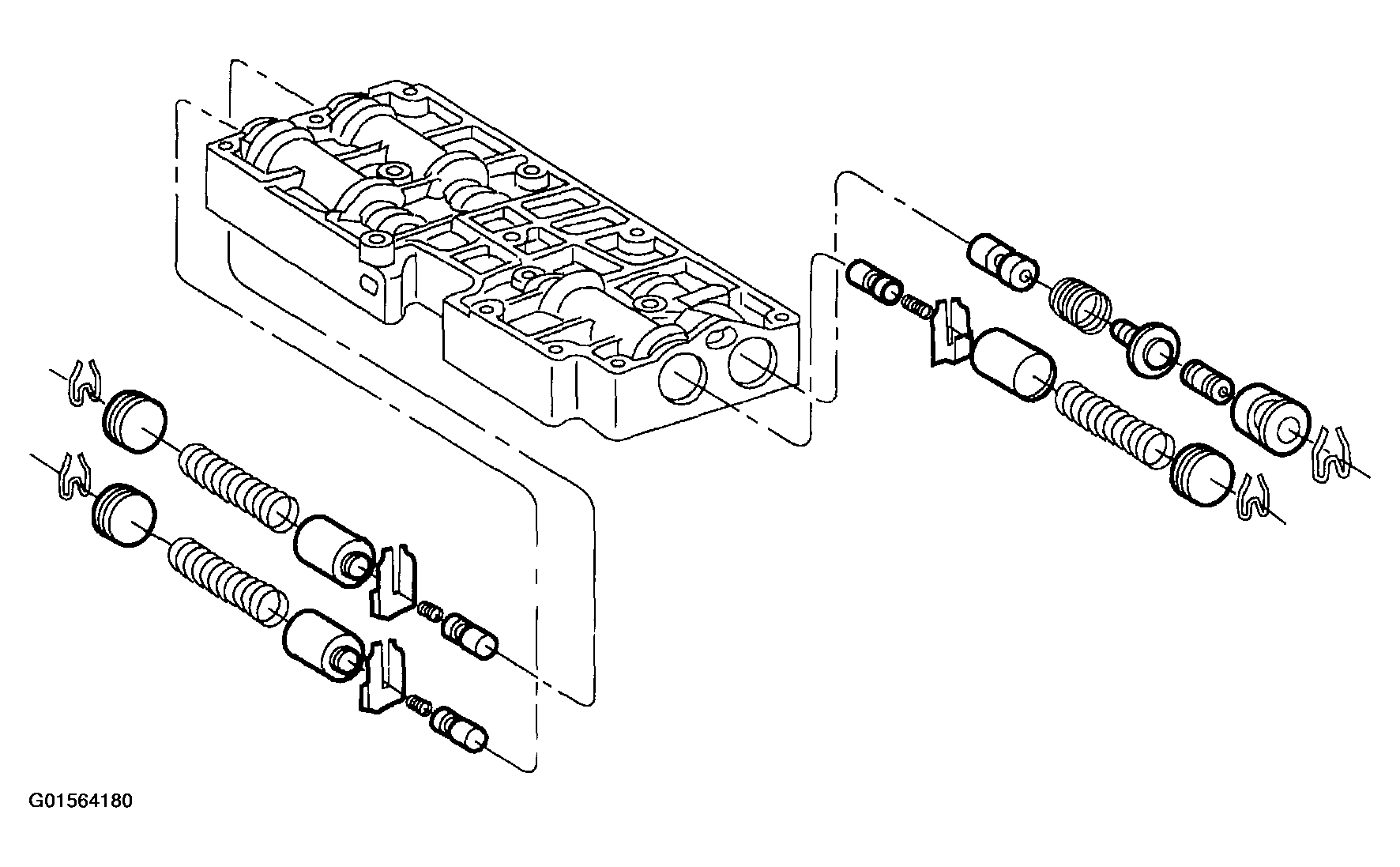

    Fig 1: Installing Control Valves And Springs To Main Control Valve Body
    G01564180Courtesy of FORD MOTOR CO.
