Removal and Installation

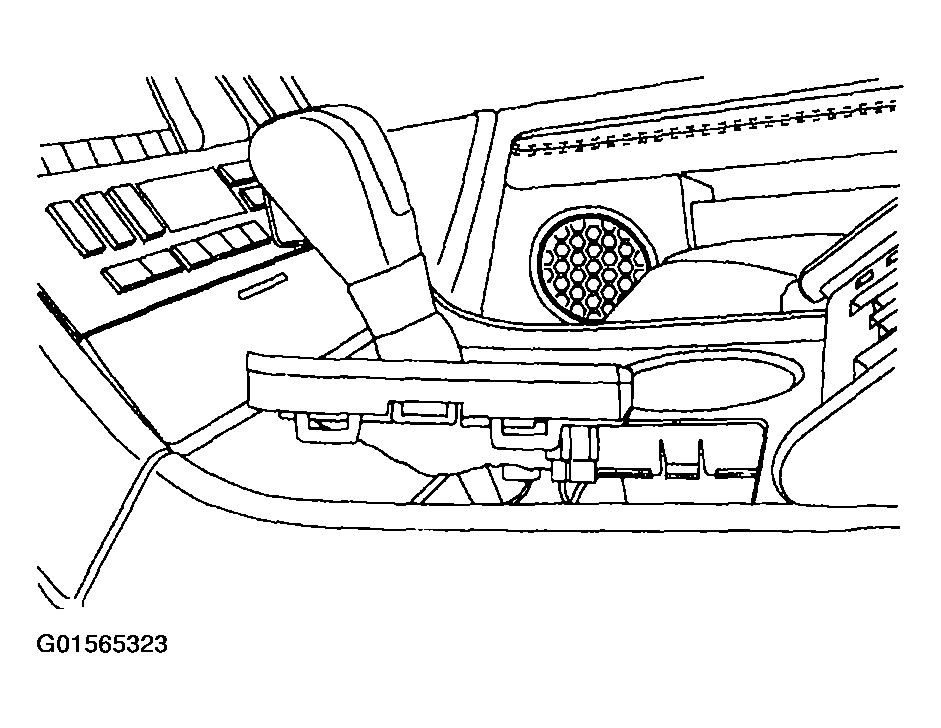

Lift the floor shift PRNDL bezel.

Fig 1: Lifting Floor Shift PRNDL Bezel
Courtesy of FORD MOTOR CO.

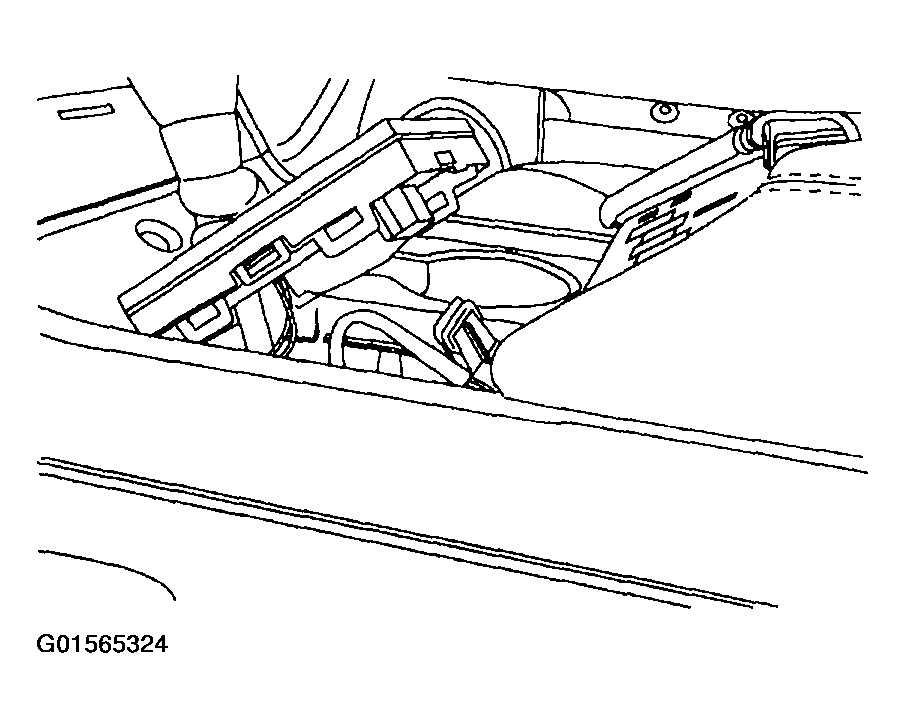

Disconnect the PRNDL bezel wire harness connector.

Fig 2: Disconnecting PRNDL Bezel Wire Harness Connector
Courtesy of FORD MOTOR CO.

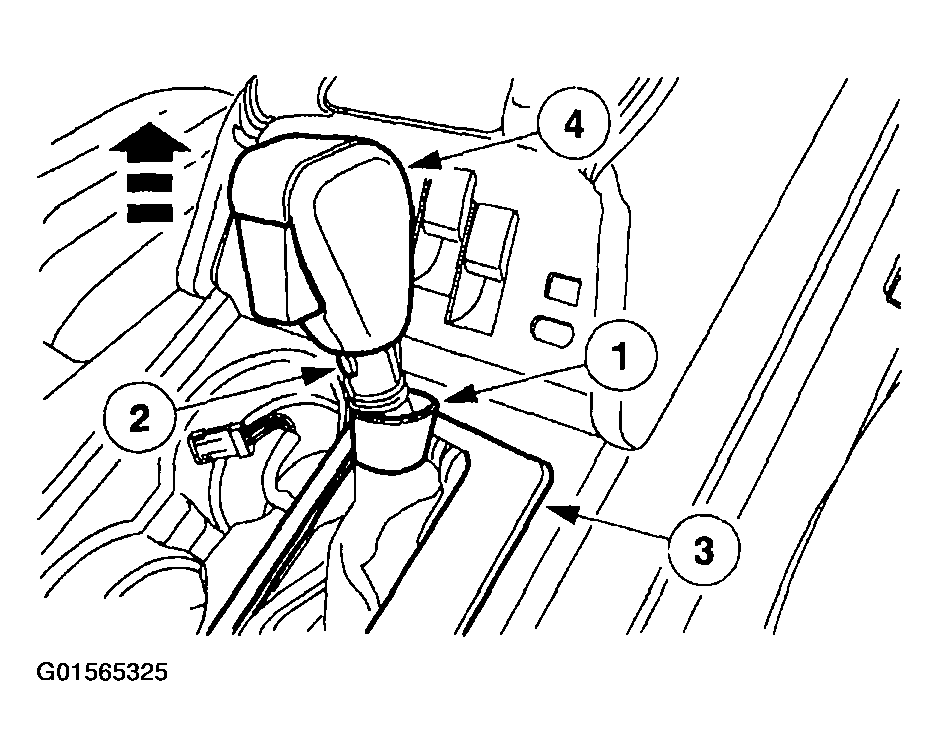

Remove the shift lever handle and cover.
1. Slide the handle bezel down.
2. Remove the screw.
3. Disconnect the TCS wire harness.
4. Lift assembly from the shifter lever.

  Fig 3: Removing Shift Lever Handle And Cover
  Courtesy of FORD MOTOR CO.
Remove TCS switch from shift handle.
- Lift switch from handle body.
- Route harness through handle passage.

  Fig 4: Removing TCS Switch From Shift Handle
  Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
