Pinpoint Test A Chart: No Communication With Powertrain Control Module (PCM)

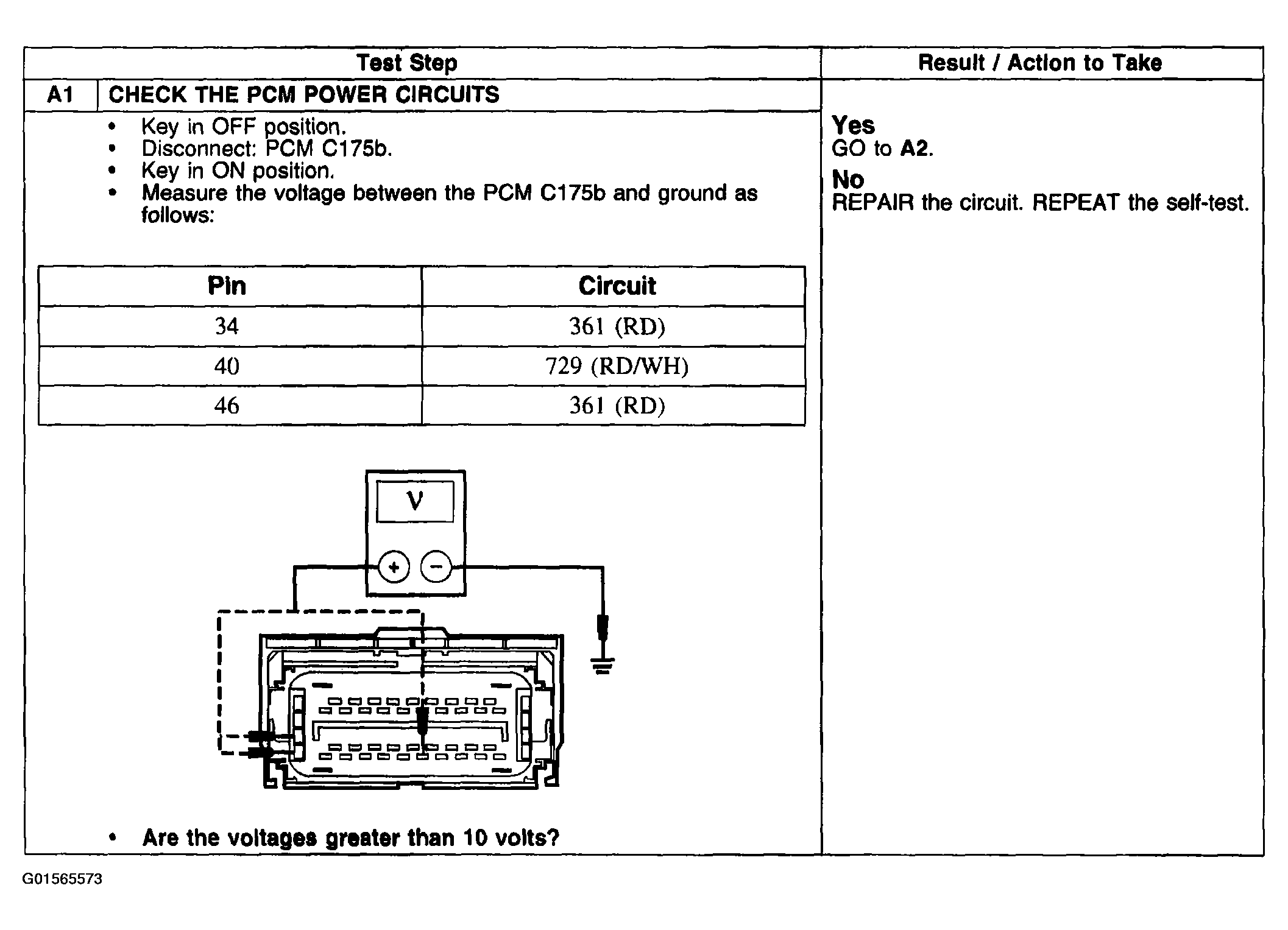

Fig 1: Pinpoint Test A Chart: No Communication With Powertrain Control Module (PCM) (A1)
G01565573Courtesy of FORD MOTOR CO.

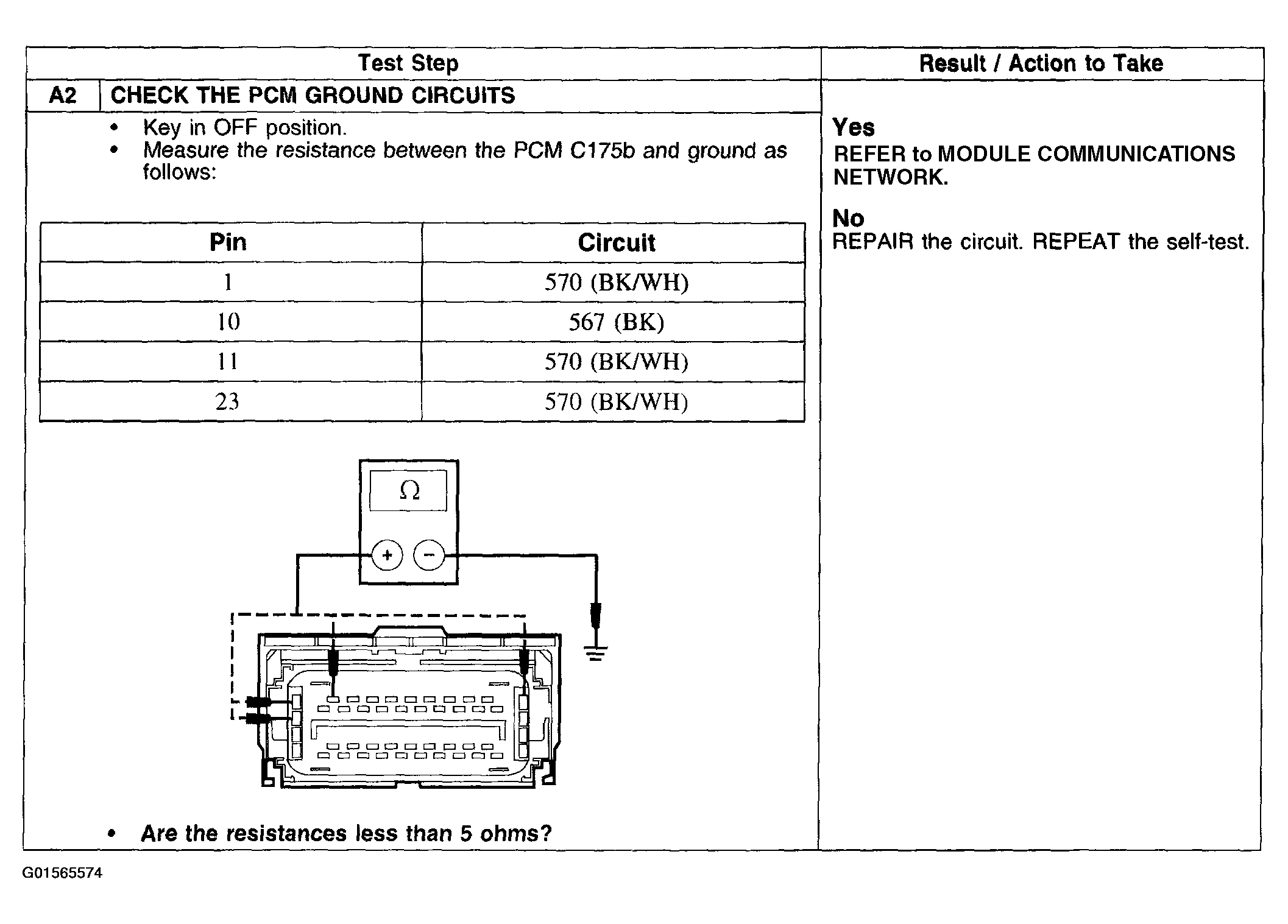

Fig 2: Pinpoint Test A Chart: No Communication With Powertrain Control Module (A2)
G01565574Courtesy of FORD MOTOR CO.
