Removal and Installation

Remove the parking brake shoes. For additional information, refer to PARKING BRAKE & ACTUATION .
Disconnect the wheel speed sensor wire from the retaining clips.

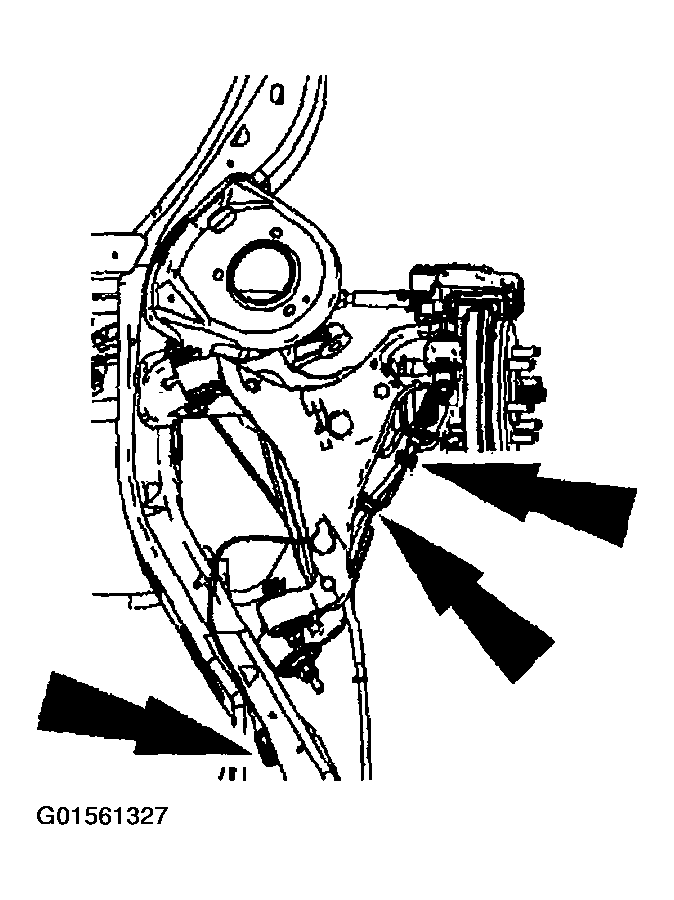

Fig 1: Disconnecting Wheel Speed Sensor Wire From Retaining Clips
Courtesy of FORD MOTOR CO.
Remove the bolt and remove the rear wheel speed sensor.

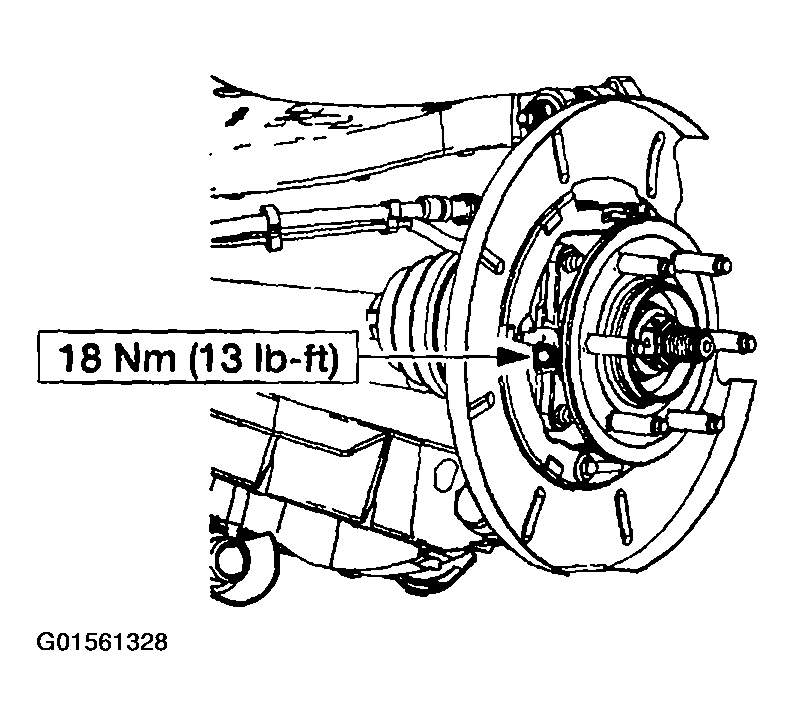

Fig 2: Removing Bolt And Rear Wheel Speed Sensor
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
