In-Vehicle Repair: Flywheel: Installation

  1. Position the flywheel and install the bolts in the sequence shown.

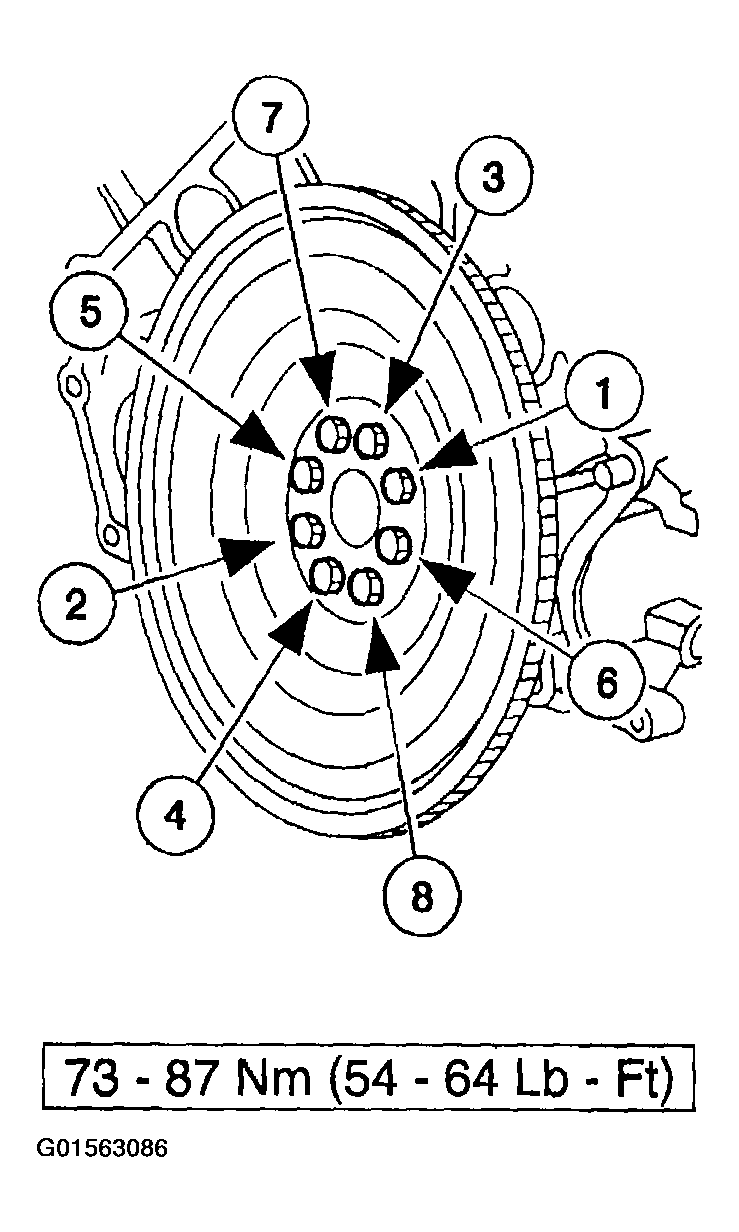

    Fig 1: Positioning Flywheel And Installing Bolts In Sequence
    G01563086Courtesy of FORD MOTOR CO.
  2. Install the transmission. For additional information, refer to AUTOMATIC TRANSAXLE/TRANSMISSION-4R100 .
