In-Vehicle Repair: Flywheel: Removal

  1. Remove the transmission. For additional information, refer to AUTOMATIC TRANSAXLE/TRANSMISSION-4R100 .
  2. Remove the bolts and the flywheel (6375).

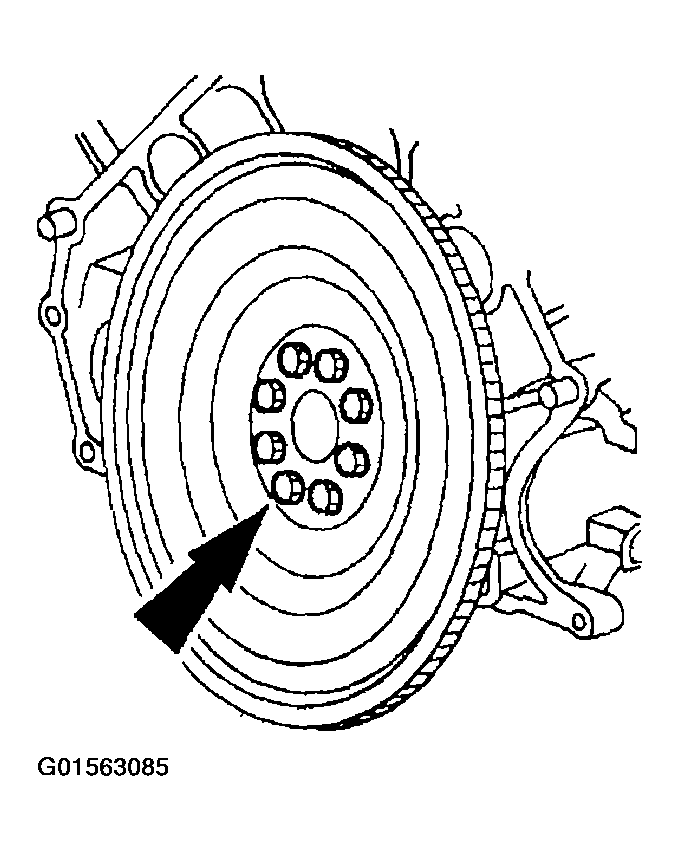

    Fig 1: Removing Bolts And Flywheel
    G01563085Courtesy of FORD MOTOR CO.
