Valve Seals: Installation

  1. Using the special tools, install the new intake valve stem seals.

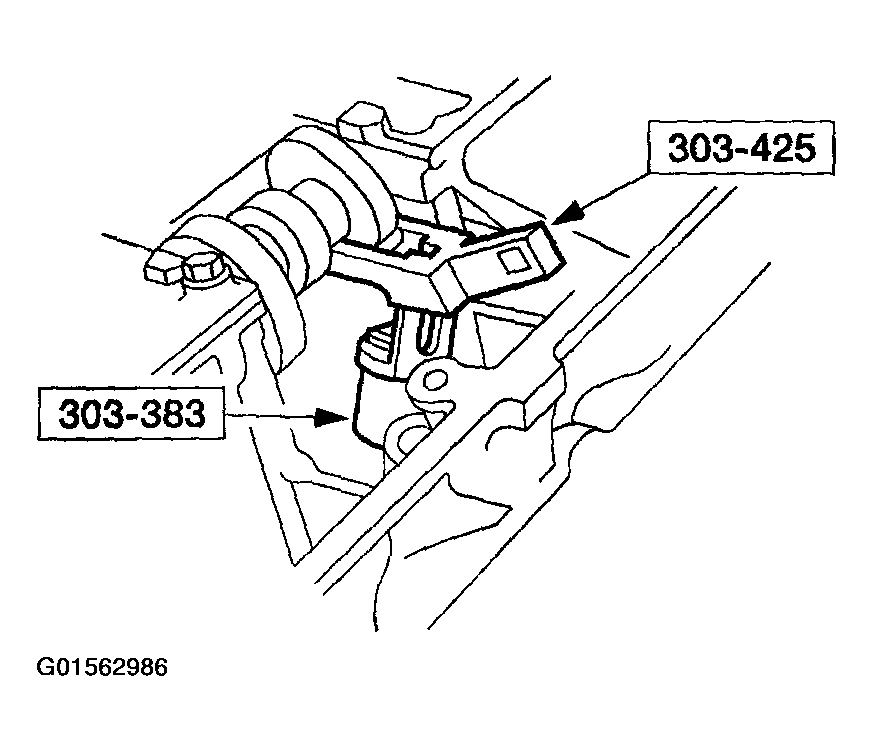

    Fig 1: Installing Intake Valve Stem Seals Using Special Tool
    G01562986Courtesy of FORD MOTOR CO.
  2. Using the special tools, install the new exhaust valve stem seals.

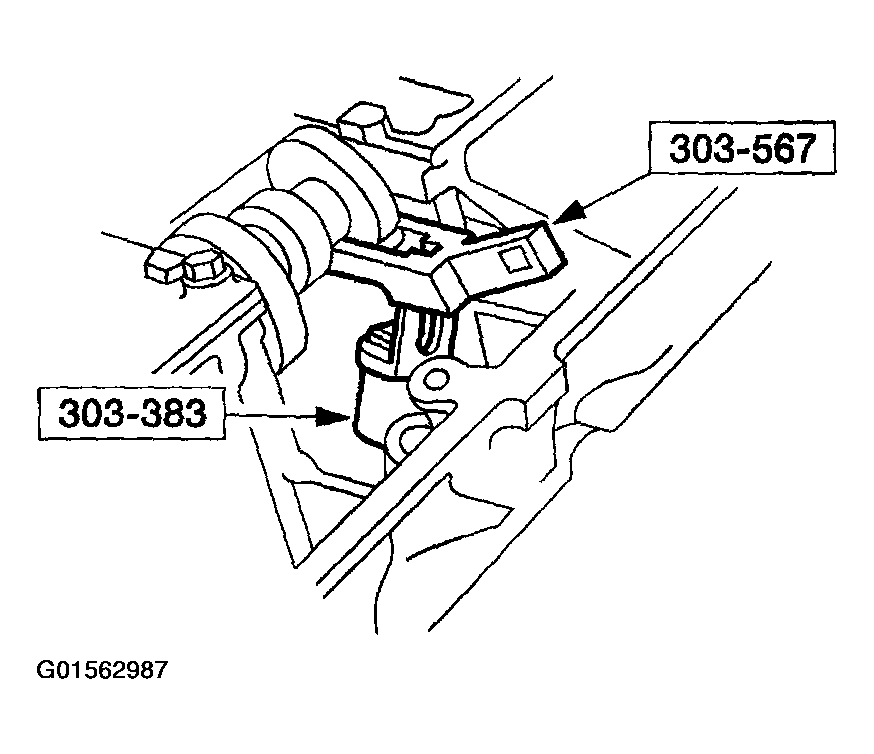

    Fig 2: Installing New Exhaust Valve Stem Seals Using Special Tool
    G01562987Courtesy of FORD MOTOR CO.
  3. Install the special tool between the valve spring coils to protect the intake valve stem seal from damage.
    Fig 3: Installing Special Tool Between Valve Spring Coils
    G01562988Courtesy of FORD MOTOR CO.
  4. Using the special tool, install the intake valve spring, the spring retainer and the valve spring retainer keys.

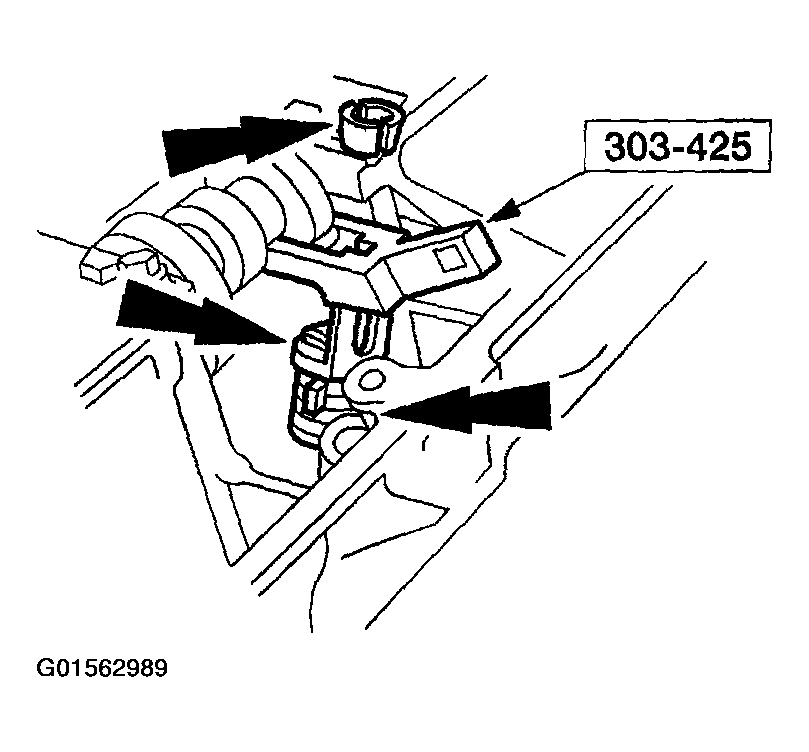

    Fig 4: Installing Intake Valve Spring, Spring Retainer And Valve Spring Retainer Keys Using Special Tool
    G01562989Courtesy of FORD MOTOR CO.
  5. Install the special tool between the valve spring coils to protect the intake valve stem seal from damage.
    Fig 5: Installing Special Tool Between Valve Spring Coils
    G01562990Courtesy of FORD MOTOR CO.
  6. Using the special tool, install the exhaust valve spring, the spring retainer and the valve spring retainer keys.
    Fig 6: Installing Exhaust Valve Spring, Spring Retainer And Valve Spring Retainer Keys Using Special Tool
    G01562991Courtesy of FORD MOTOR CO.
  7. Remove the compressed air hose from the cylinder.
  8. Install the spark plugs. For additional information, refer to REMOVAL & INSTALLATION - BLACKWOOD, EXPEDITION, F150 PICKUP & NAVIGATOR - GASOLINE .
  9. Install the roller followers. For additional information, refer to CAMSHAFT ROLLER FOLLOWER .
