Section 239 (Engine-3.0L): Removal: Engine: Removal

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the vehicle in NEUTRAL, position on a hoist.
  2. Disconnect the battery ground cable. For additional information, Refer to BATTERY AND CHARGING SYSTEM .
  3. Remove the air cleaner assembly.
  4. Release the fuel system pressure. For additional information, Refer to FUEL SYSTEM .
  5. Drain the engine cooling system. For additional information, Refer to ENGINE COOLING .
  6. Discharge the A/C system. For additional information, Refer to CLIMATE CONTROL SYSTEM .
  7. Remove the clean air inlet duct. For additional information, Refer to CLIMATE CONTROL SYSTEM .
  8. Remove the drive shaft. For additional information, Refer to DRIVELINE SYSTEM .
  9. Remove the exhaust system. For additional information, Refer to EXHAUST STEM .
  10. Remove the RH and LH inner fender splash shields.
  11. Remove the front splash shield.
  12. Remove the RH and LH subframe splash shields.
  13. Illustration 1 of 17. Remove the components in the order indicated in the following illustration and table.

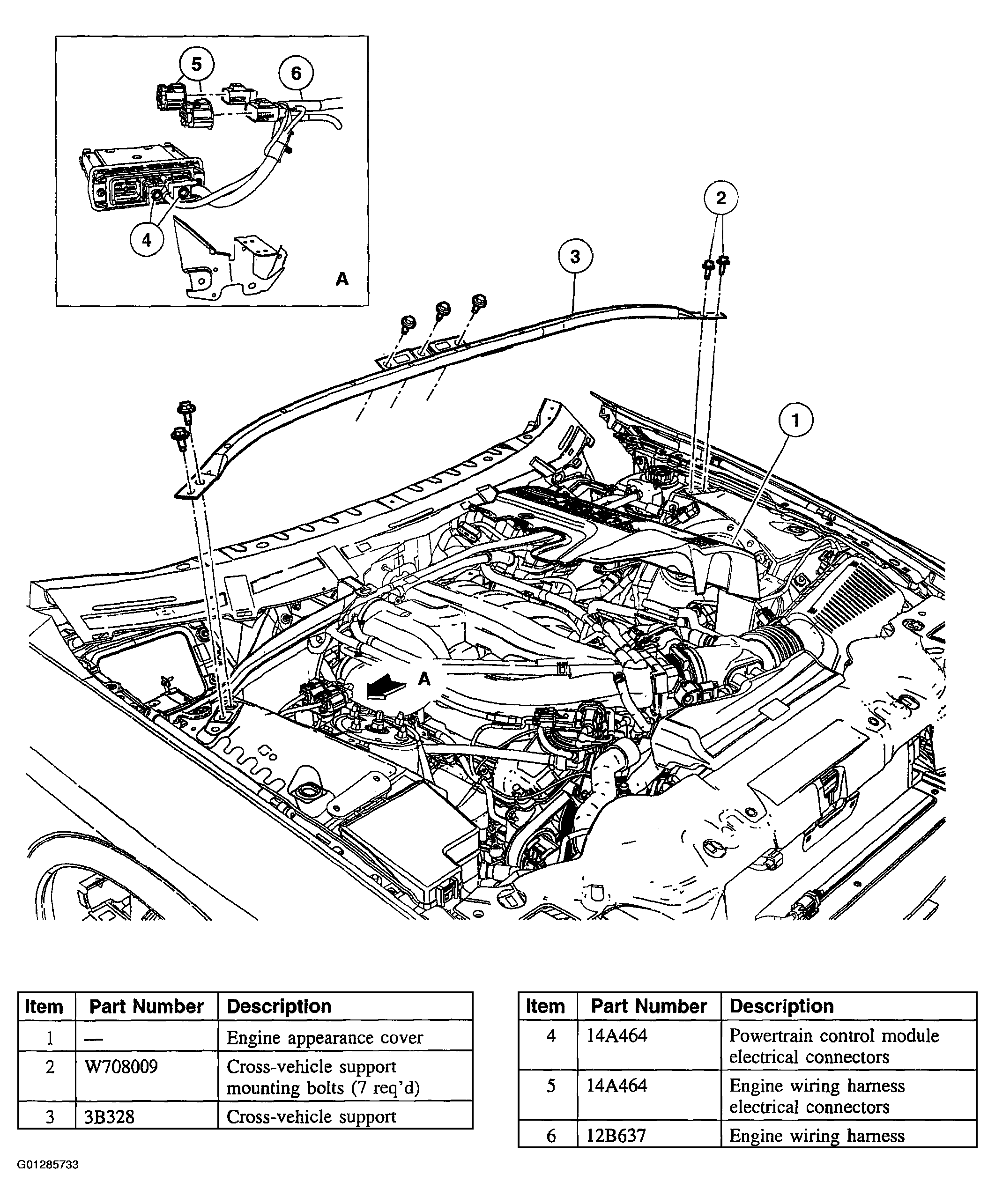

    Fig 1: Identifying Cross Vehicle Support
    G01285733Courtesy of FORD MOTOR CO.
  14. Illustration 2 of 17. Remove the components in the order indicated in the following illustration and table.

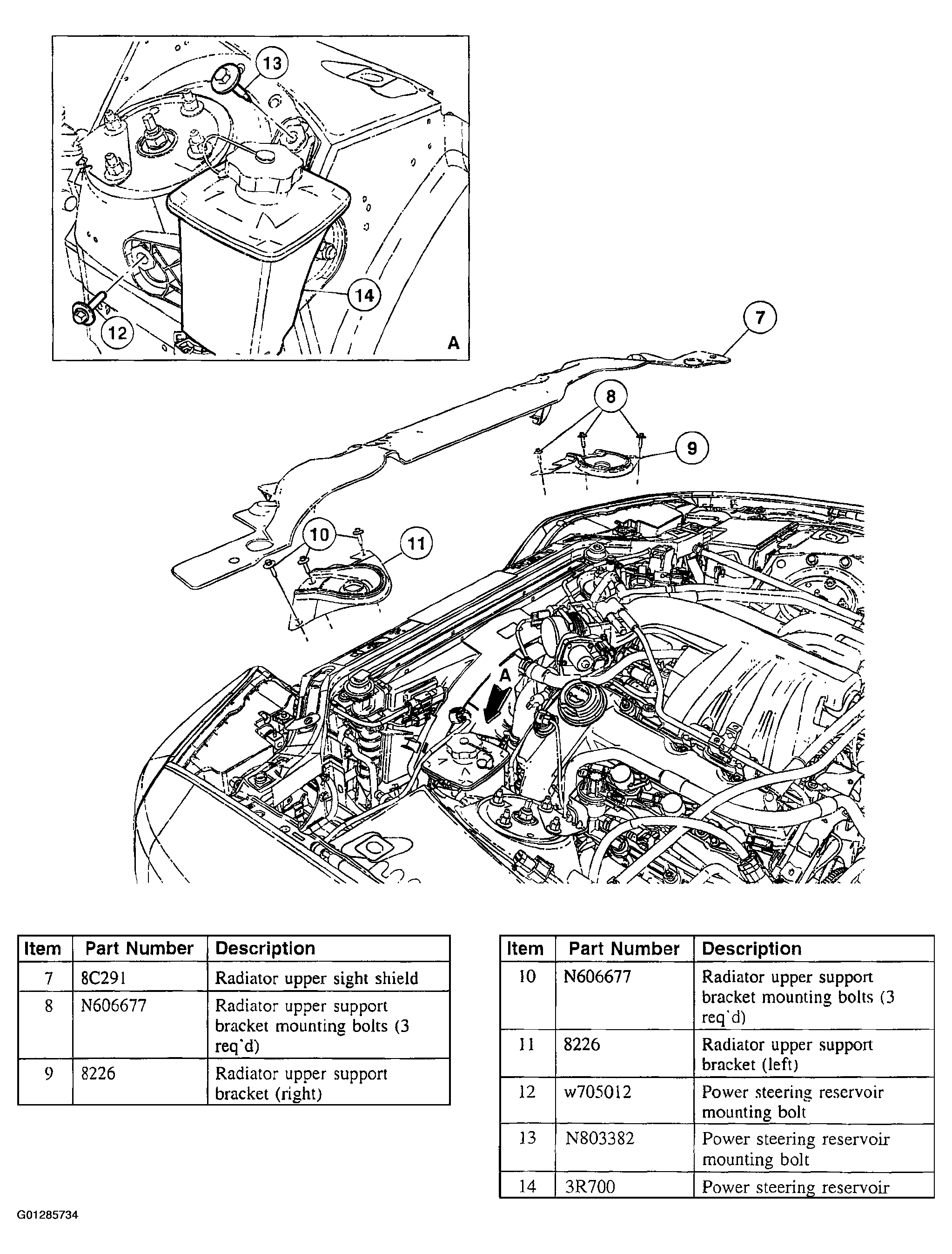

    Fig 2: Identifying Radiator Upper Sight Shield
    G01285734Courtesy of FORD MOTOR CO.
  15. Illustration 3 of 17. Remove the components in the order indicated in the following illustration and table.

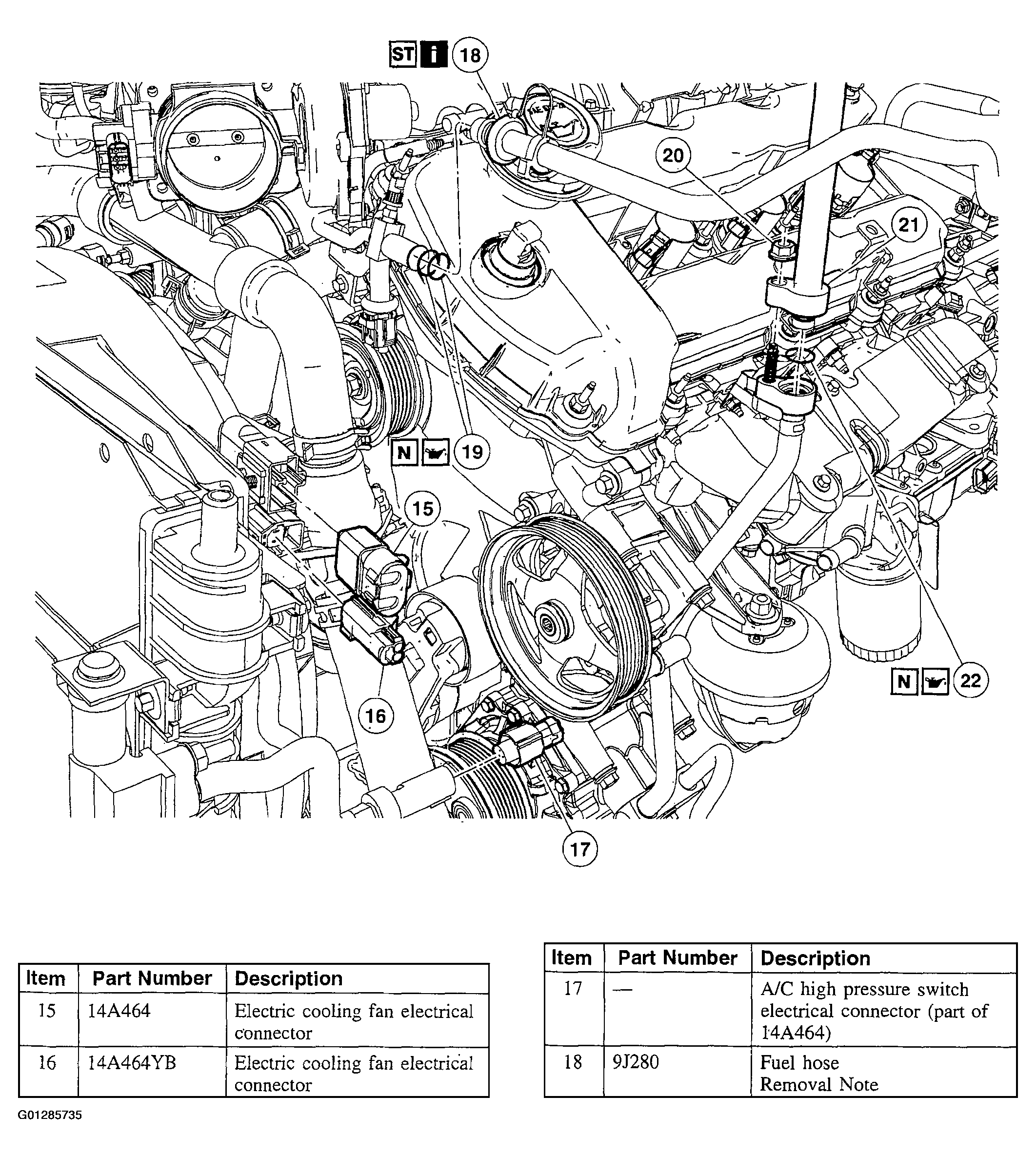

    Fig 3: Identifying Electric Cooling Fan Electrical Connector
    G01285735Courtesy of FORD MOTOR CO.
    Fig 4: Removing Fuel Hose O-Ring
    G01285736Courtesy of FORD MOTOR CO.
  16. Illustration 4 of 17. Remove the components in the order indicated in the following illustration and table.

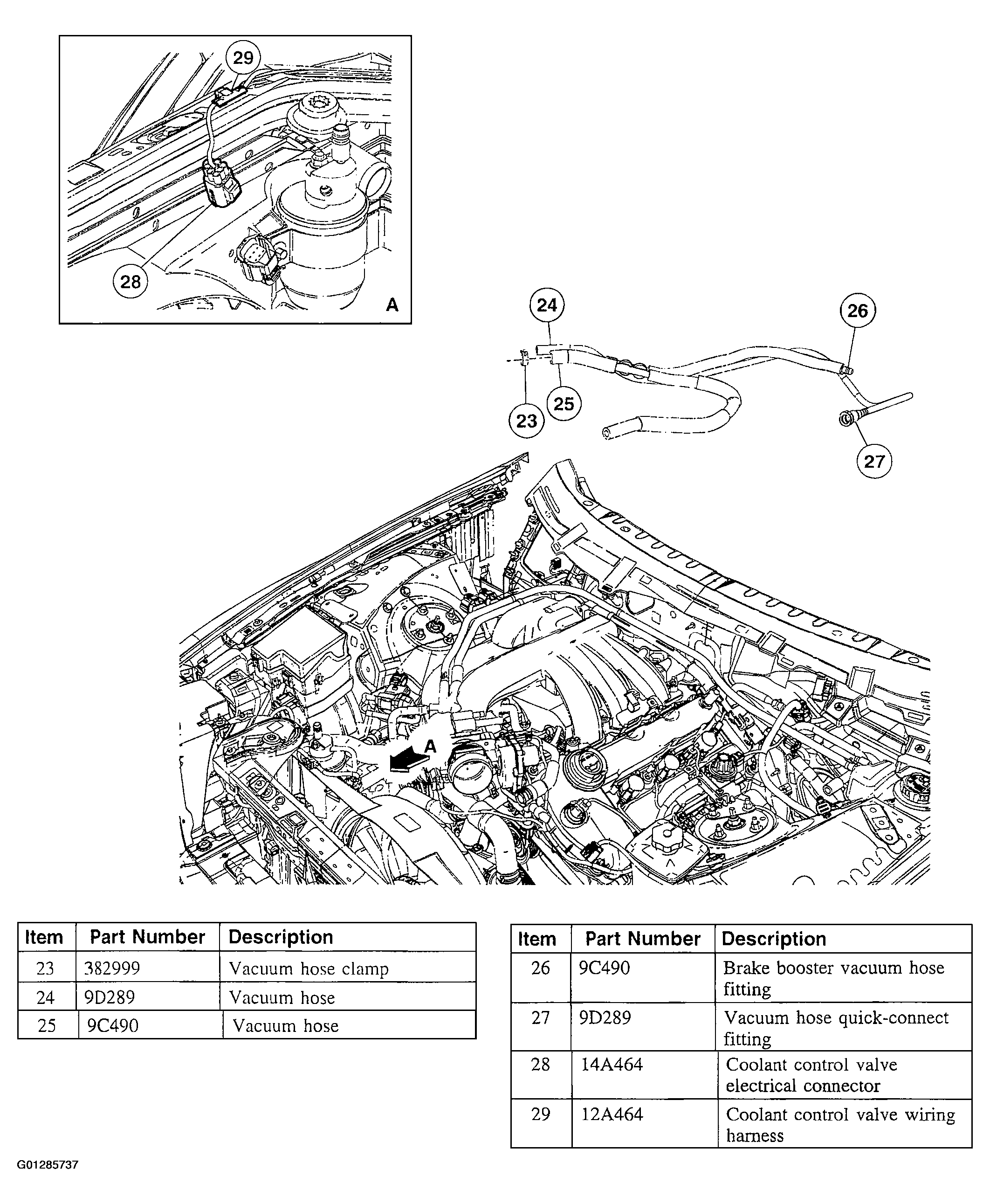

    Fig 5: Removing Vacuum Hose Clamp
    G01285737Courtesy of FORD MOTOR CO.
  17. Illustration 5 of 17. Remove the components in the order indicated in the following illustration and table.

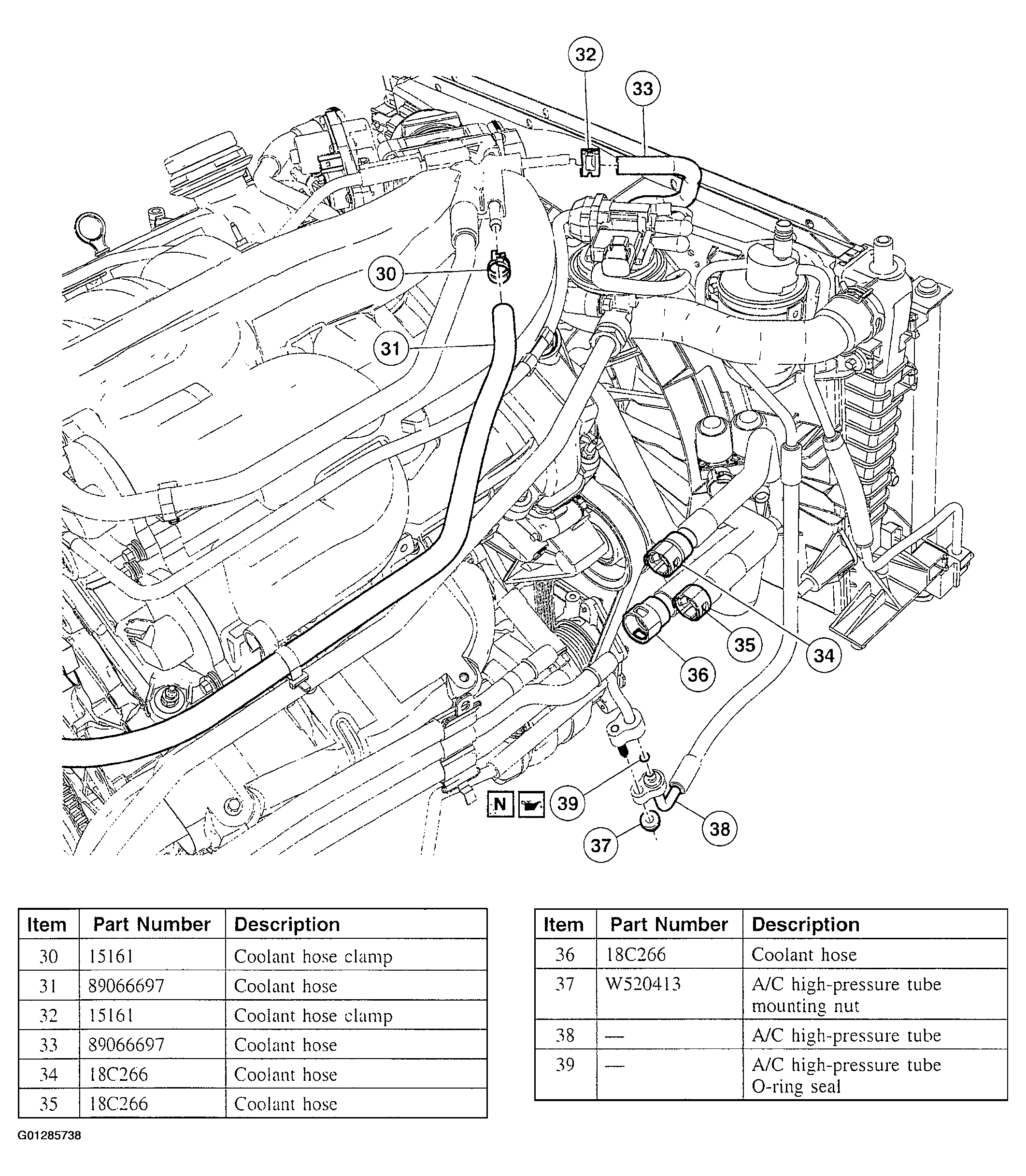

    Fig 6: Removing Cooling Hose Clamp
    G01285738Courtesy of FORD MOTOR CO.
  18. Illustration 6 of 17. Remove the components in the order indicated in the following illustration and table.

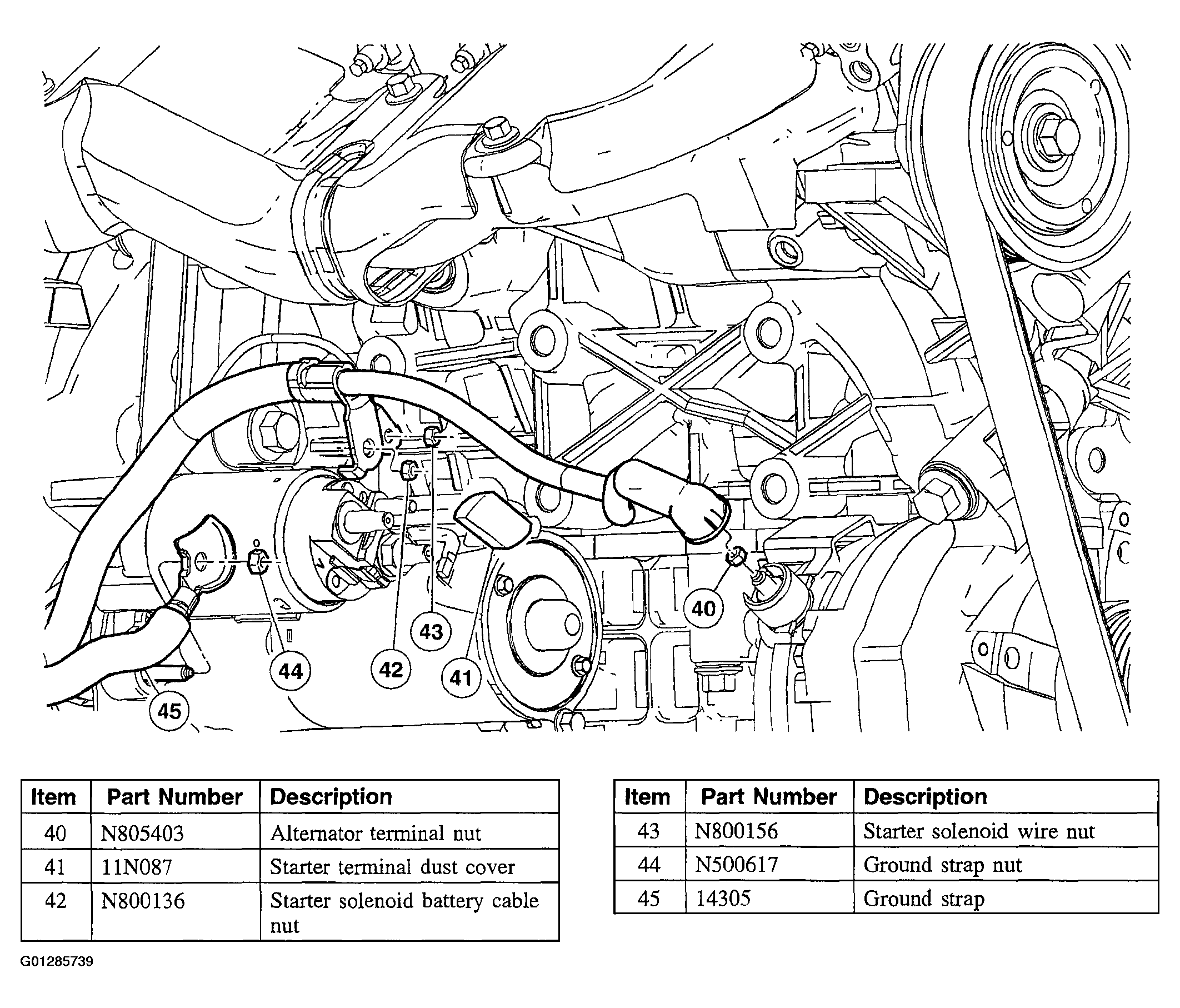

    Fig 7: Removing Alternator Nut
    G01285739Courtesy of FORD MOTOR CO.
  19. Illustration 7 of 17. Remove the components in the order indicated in the following illustration and table.

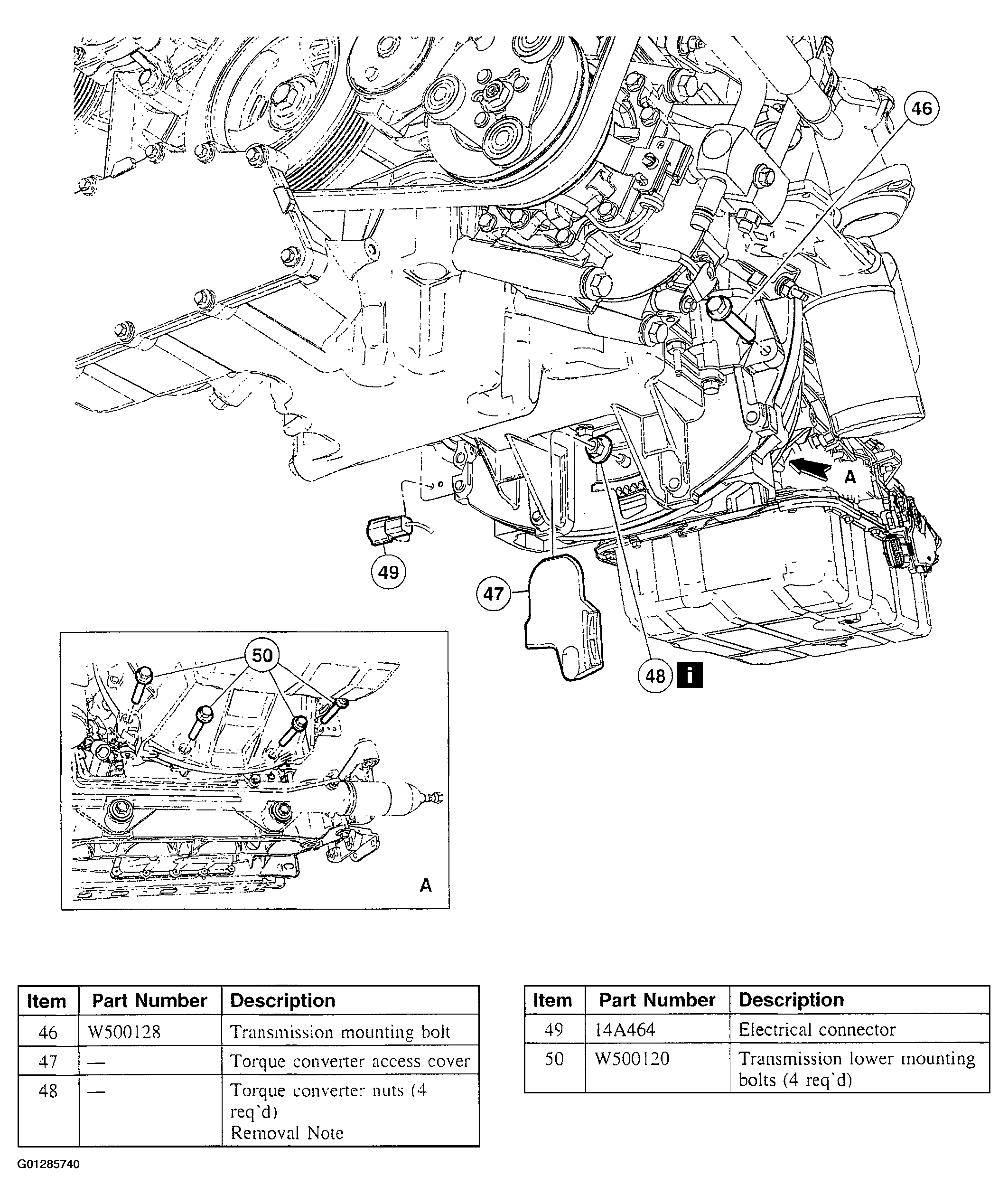

    Fig 8: Removing Transmission Mounting Bolt
    G01285740Courtesy of FORD MOTOR CO.
  20. Illustration 8 of 17. Remove the components in the order indicated in the following illustration and table.

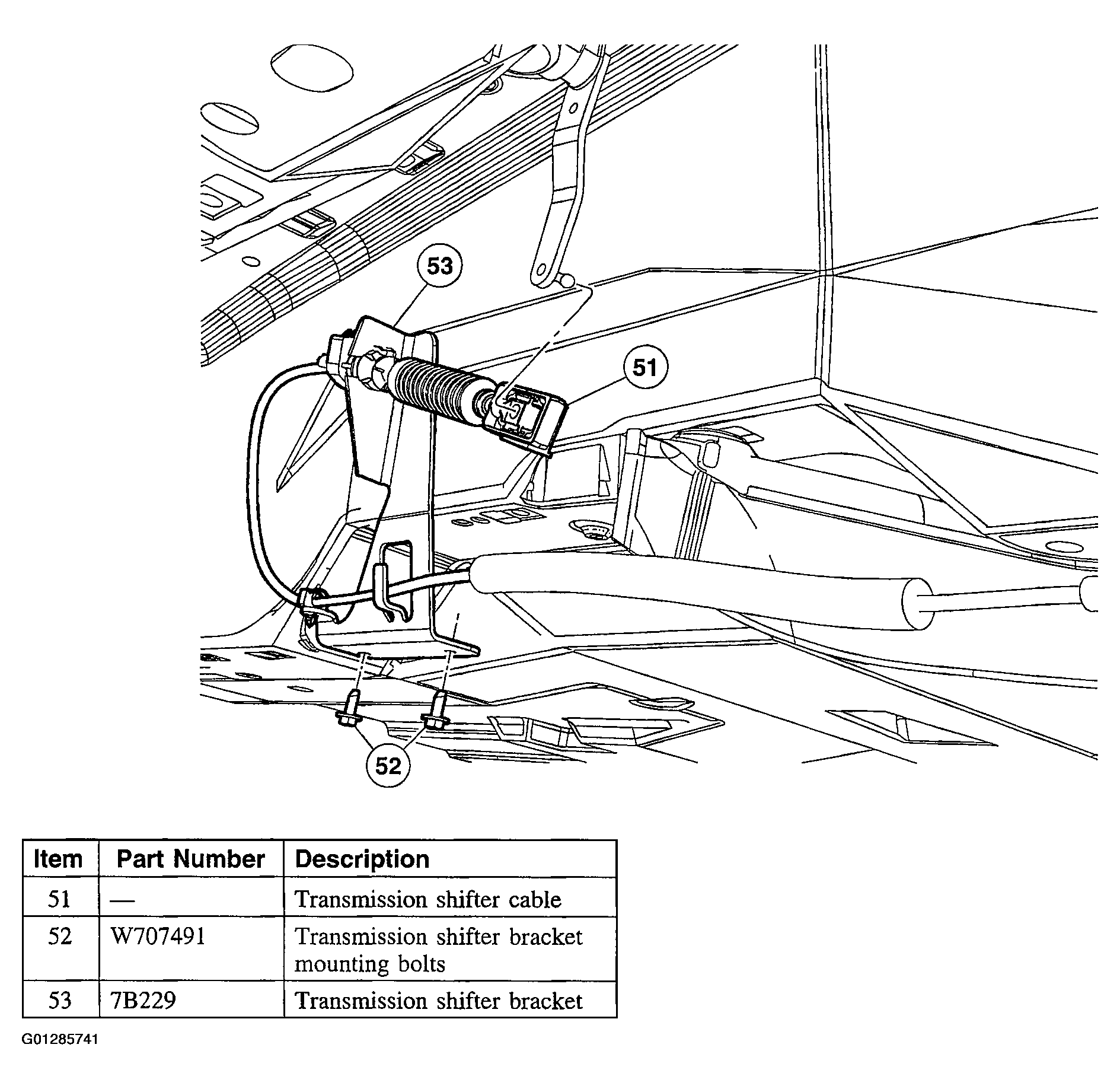

    Fig 9: Removing Transmission Shifting Cable
    G01285741Courtesy of FORD MOTOR CO.
  21. Illustration 9 of 17. Remove the components in the order indicated in the following illustration and table.

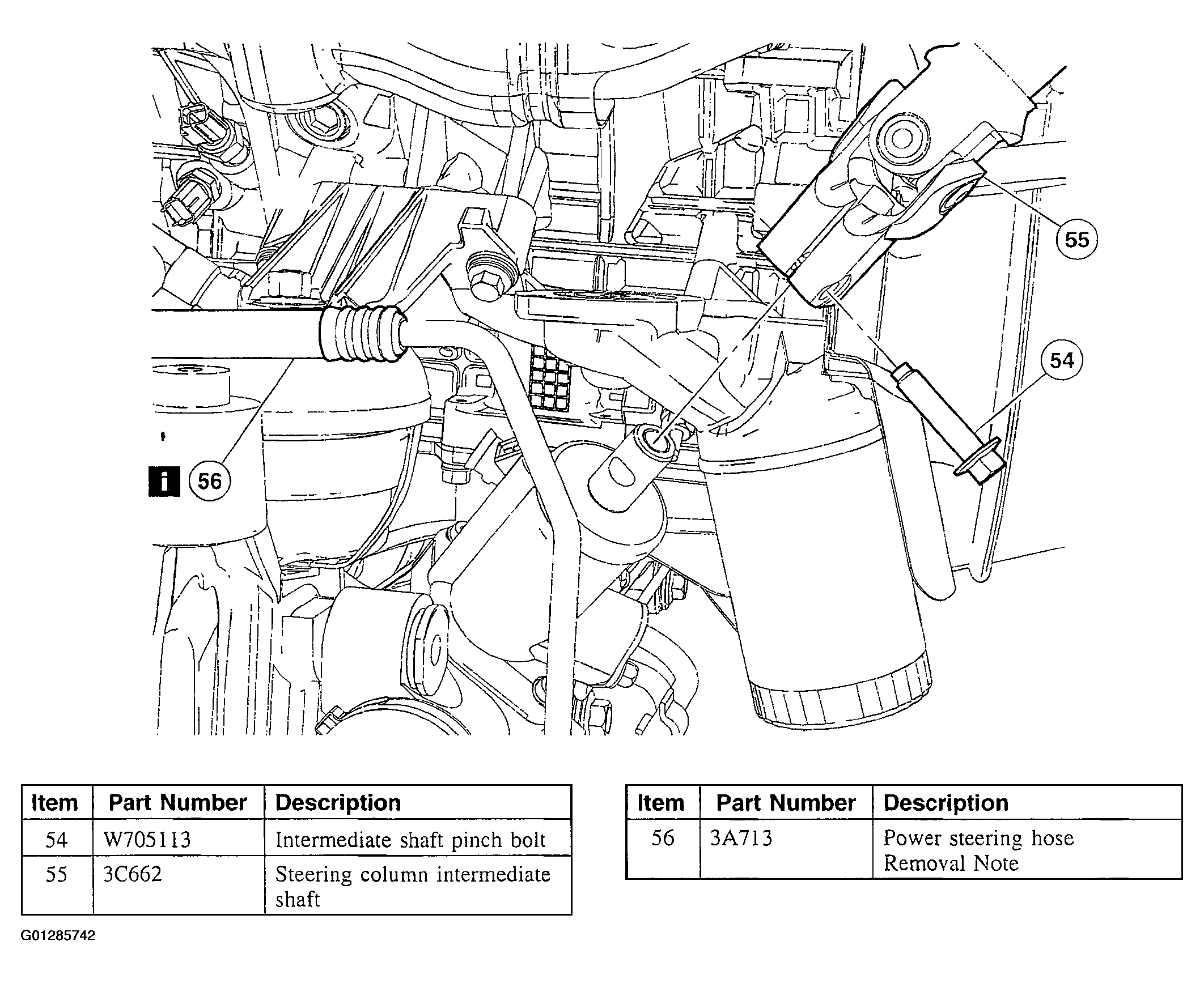

    Fig 10: Removing Intermediate Shaft Pinch Bolt
    G01285742Courtesy of FORD MOTOR CO.
  22. Illustration 10 of 17. Remove the components in the order indicated in the following illustration and table.

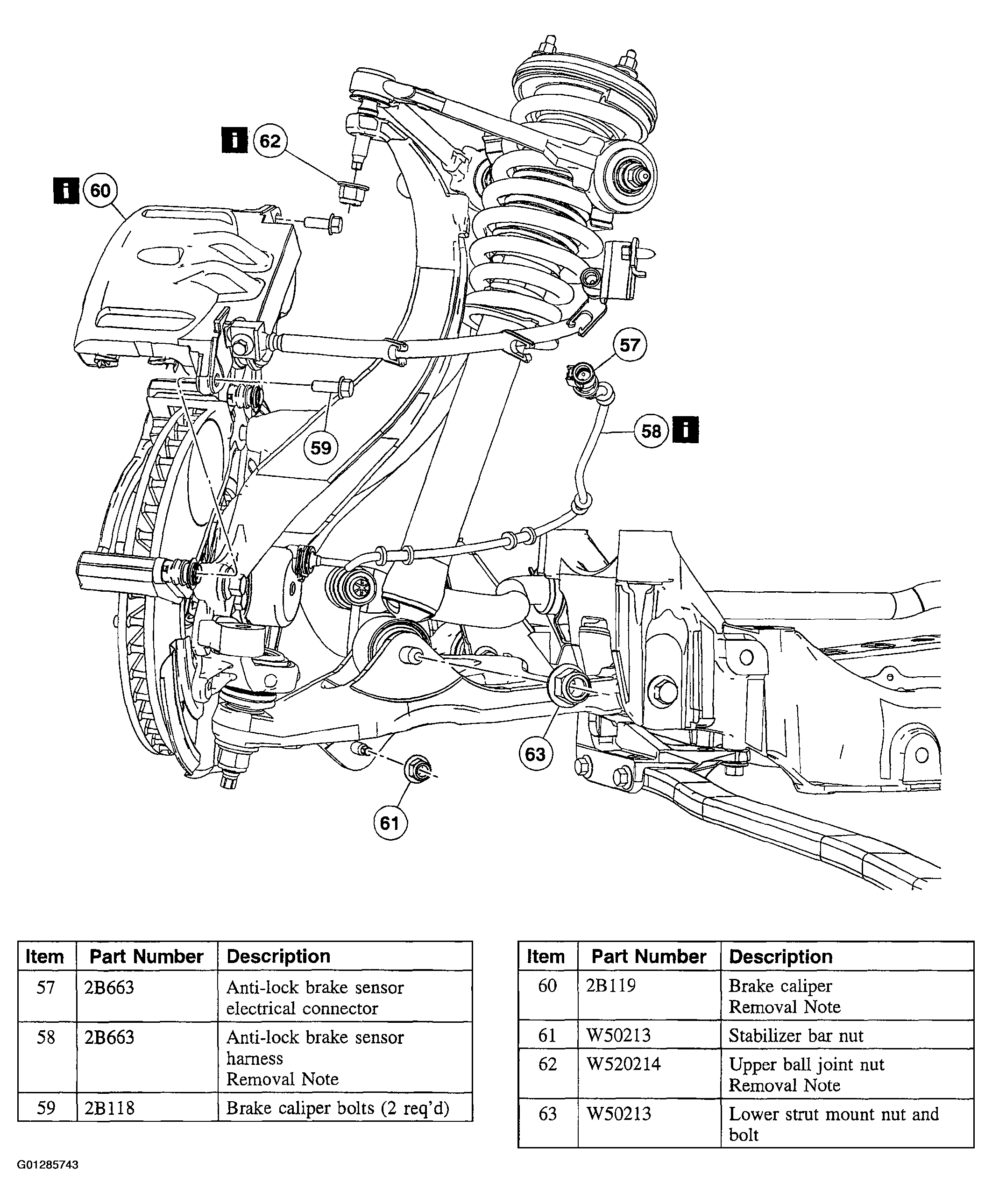

    Fig 11: Removing Anti-Brake Sensor Electric Connector
    G01285743Courtesy of FORD MOTOR CO.
  23. Illustration 11 of 17. Remove the components in the order indicated in the following illustration and table.

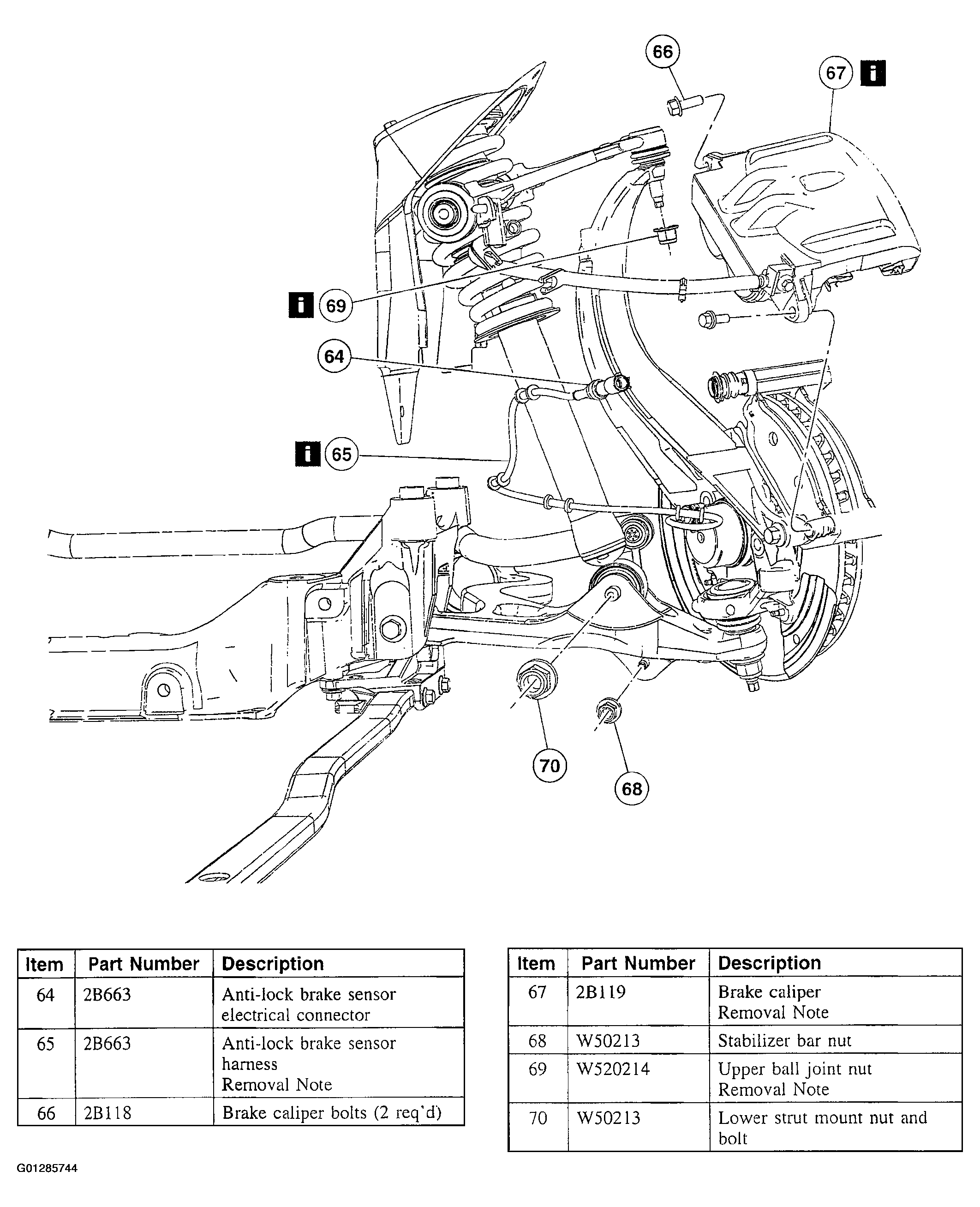

    Fig 12: Removing Brake Caliper
    G01285744Courtesy of FORD MOTOR CO.
  24. Illustration 12 of 17. Remove the components in the order indicated in the following illustration and table.

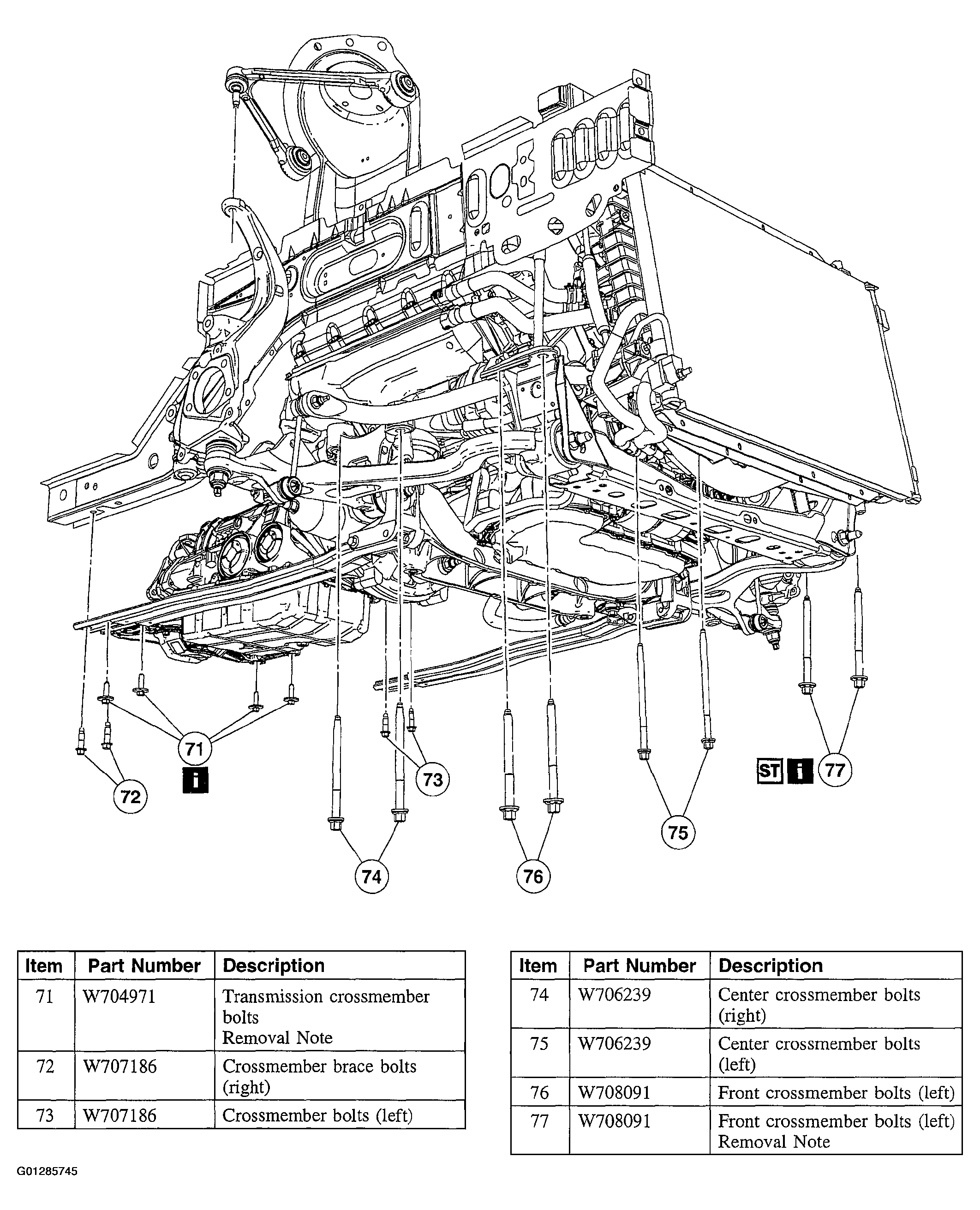

    Fig 13: Removing Transmission Crossmember Bolt
    G01285745Courtesy of FORD MOTOR CO.
  25. Illustration 13 of 17. Remove the components in the order indicated in the order indicated in the following illustration and table.

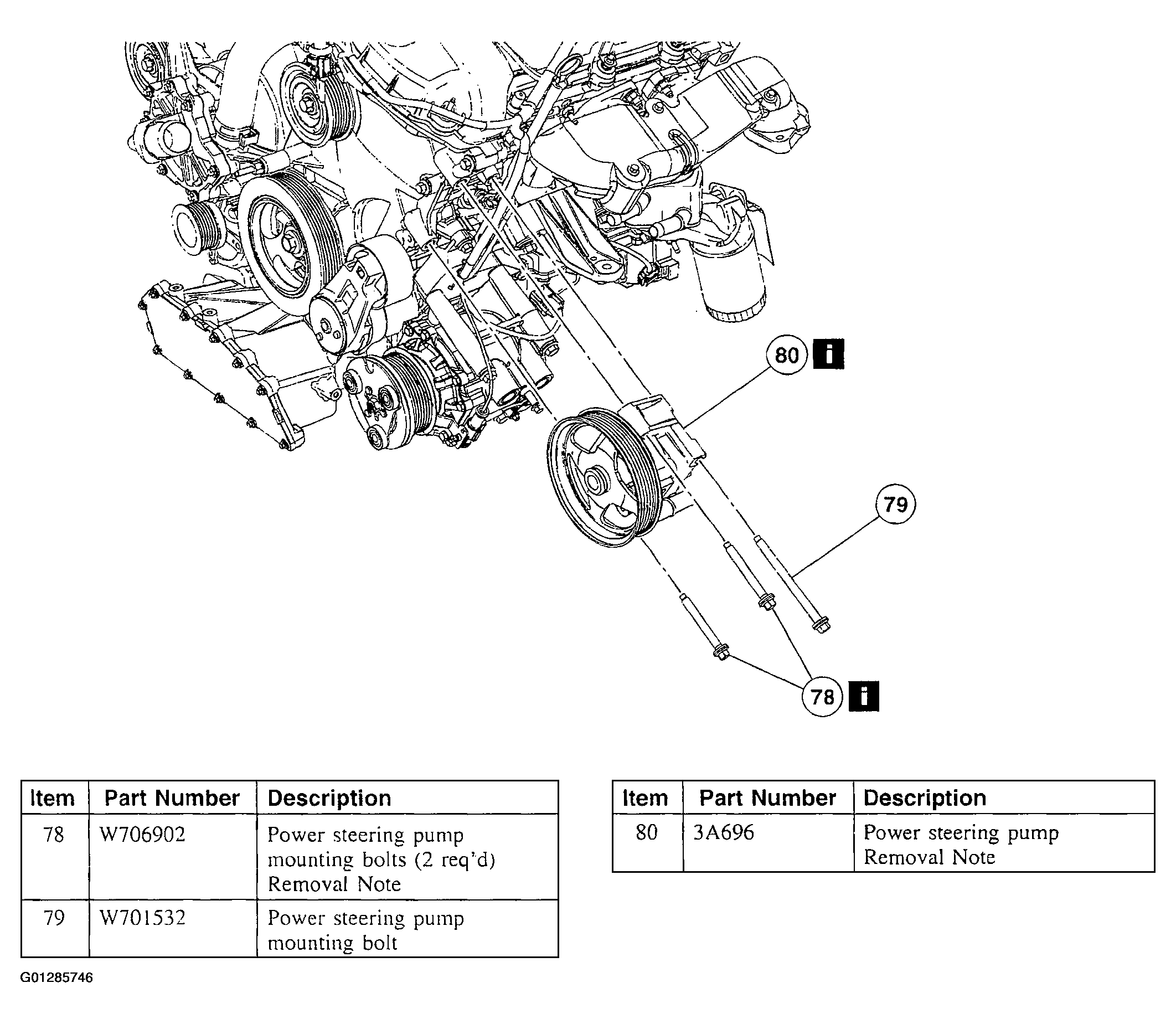

    Fig 14: Removing Power Steering Pump Mounting Bolt
    G01285746Courtesy of FORD MOTOR CO.
  26. Illustration 14 of 17. Remove the components in the order indicated in the following illustration and table.

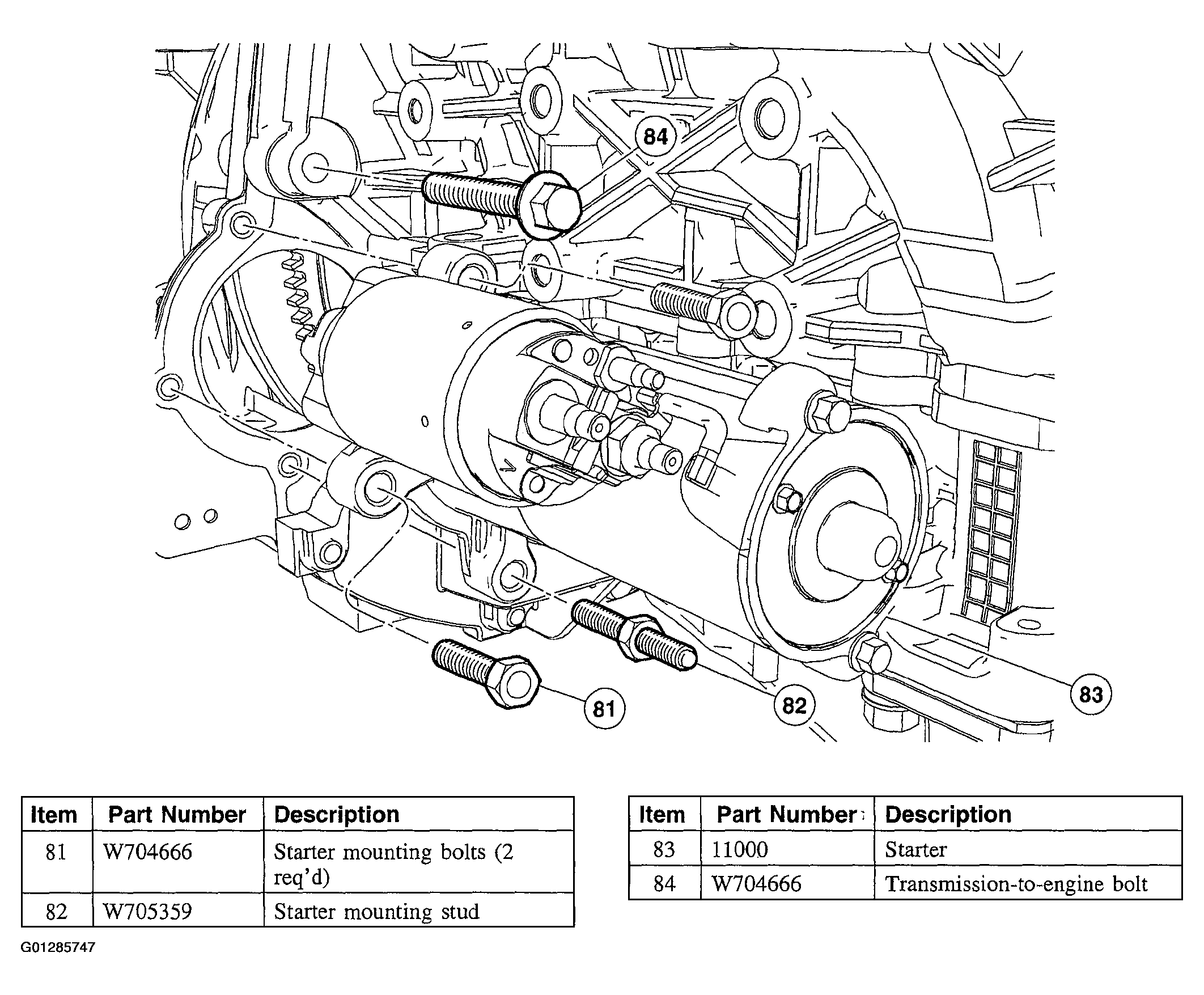

    Fig 15: Removing Stator Mounting Bolt
    G01285747Courtesy of FORD MOTOR CO.
  27. Illustration 15 of 17. Remove the components in the order indicated in the following illustration and table.

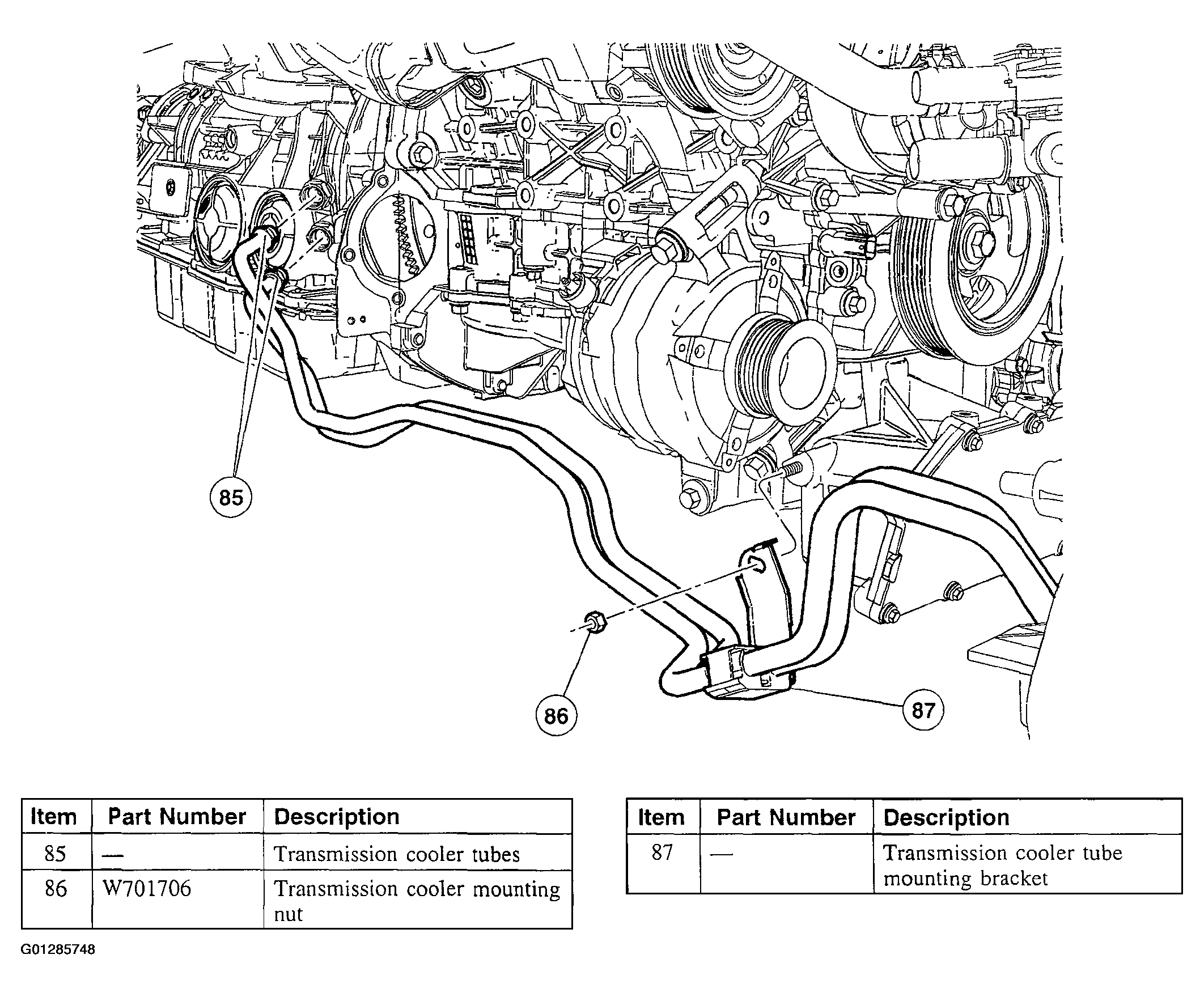

    Fig 16: Removing Transmission Cooler Tube
    G01285748Courtesy of FORD MOTOR CO.
  28. Illustration 16 of 17. Remove the components in the order indicated in the following illustration and table.

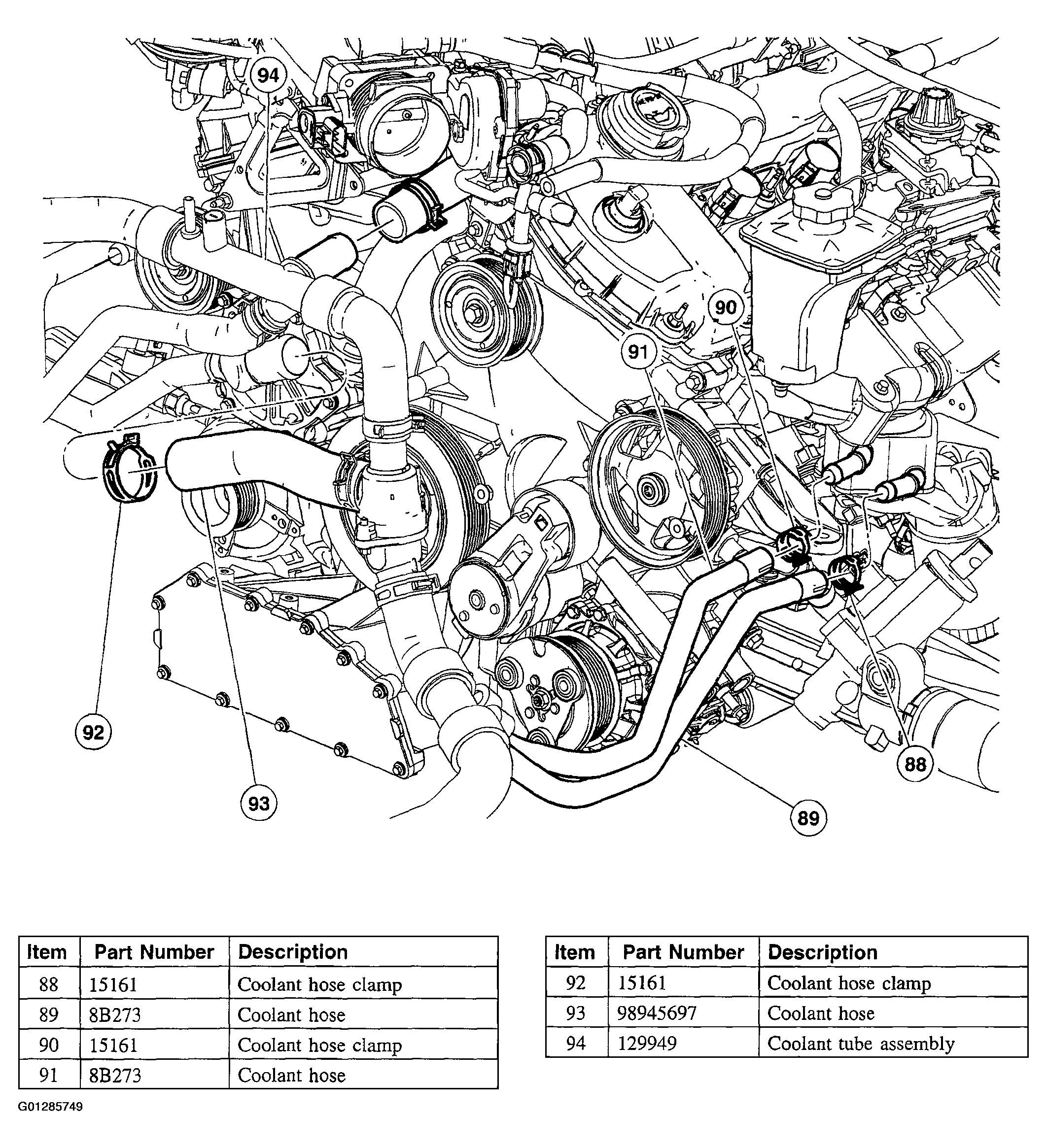

    Fig 17: Removing Coolant Clamp
    G01285749Courtesy of FORD MOTOR CO.
  29. Illustration 17 of 17. Remove the components in the order indicated in the following illustration and table.

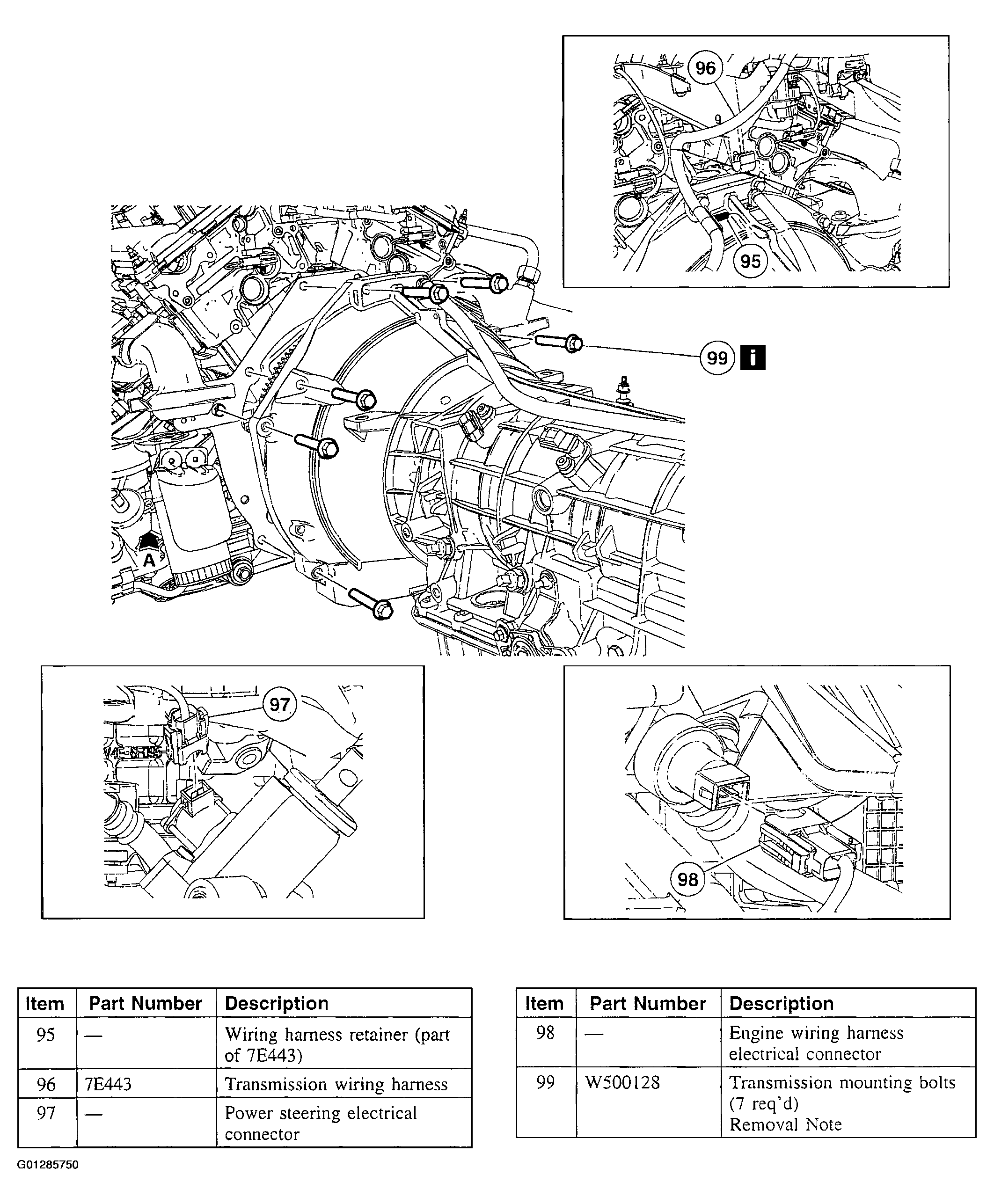

Fig 18: Removing Transmission Wiring Harness
G01285750Courtesy of FORD MOTOR CO.
