Headlamp Switch

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

View 1 of 2. Remove the components in the order indicated in Fig 1.

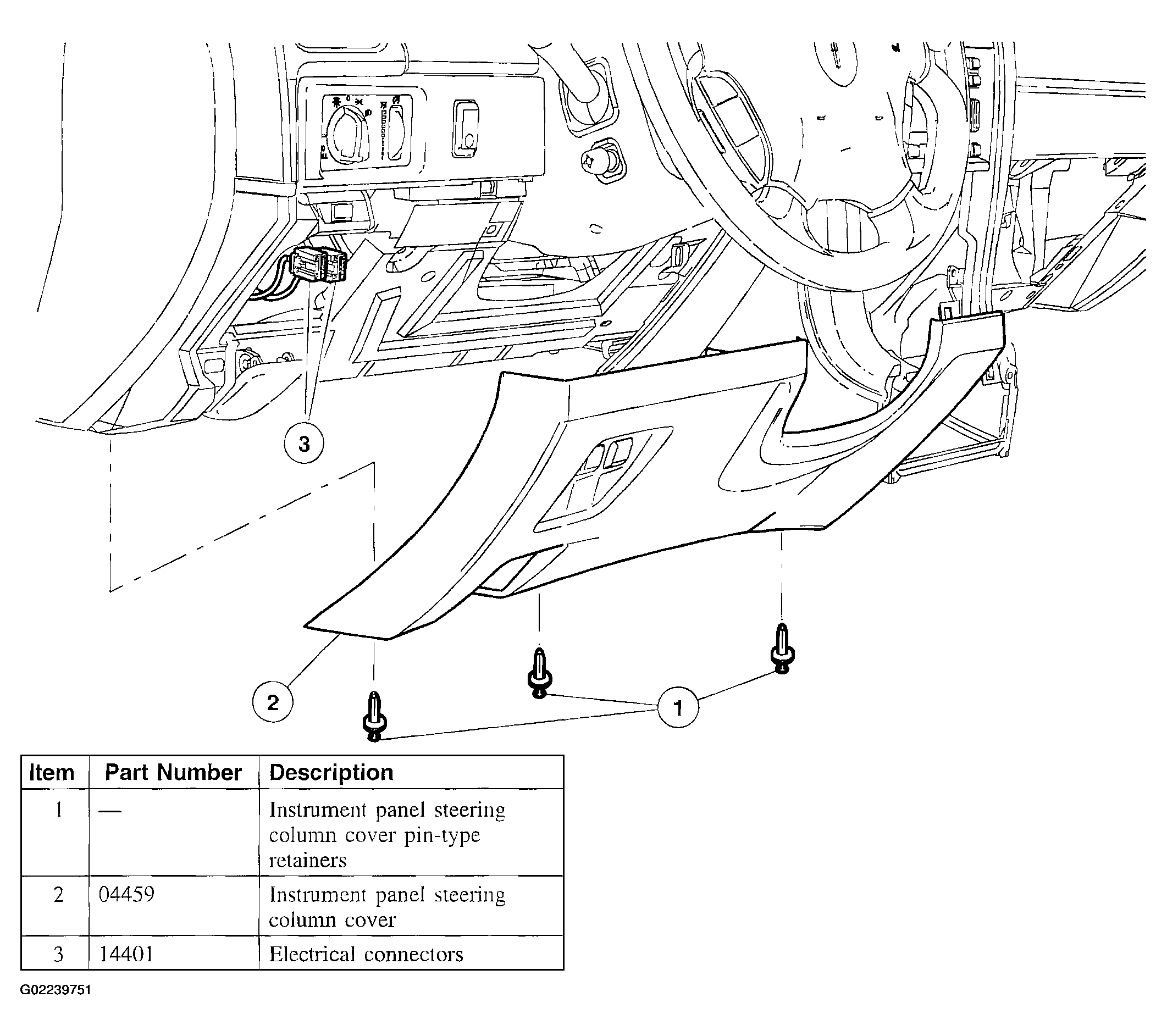

Fig 1: Removing Sequence Of Headlamp Switch (1 Of 2)
Courtesy of FORD MOTOR CO.
View 2 of 2. Remove the components in the order indicated in Fig 2.

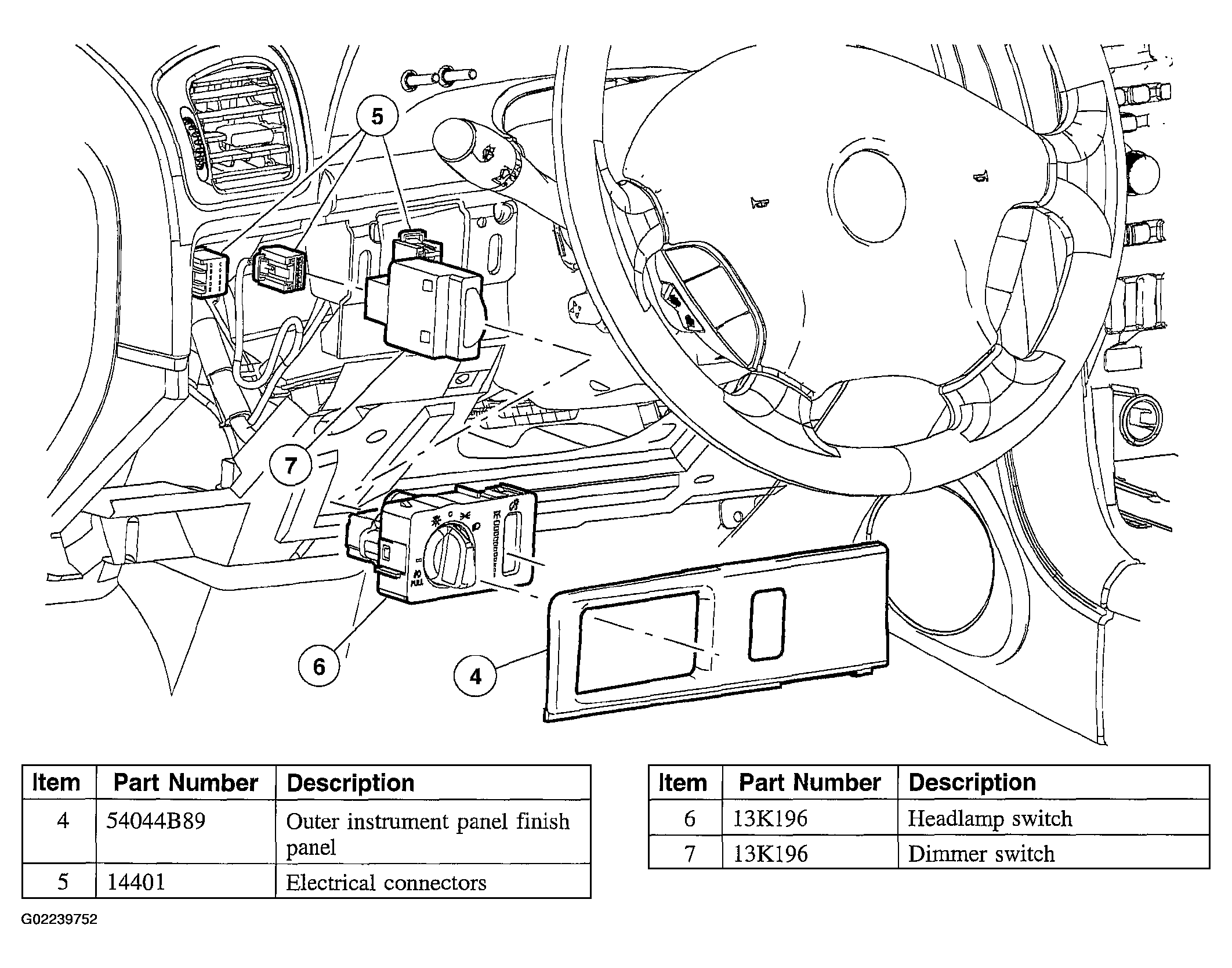

Fig 2: Removing Sequence Of Headlamp Switch (2 Of 2)
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
