Lumbar Control Switch: Installation

WARNING: This page is about a different car, the 2004 Lincoln Navigator and 2004 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

Install the power lumbar switch into the side shield.

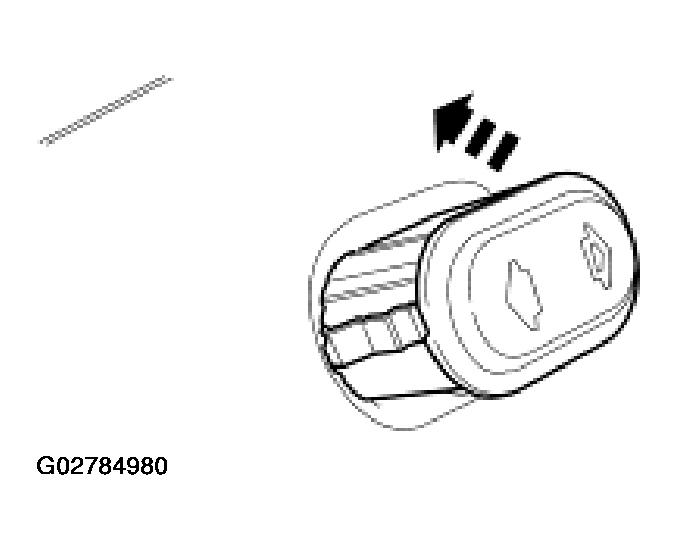

Fig 1: Installing Power Lumbar Switch Into Side Shield
Courtesy of FORD MOTOR CO.
Connect the 8-way power seat and power lumbar switch electrical connectors.

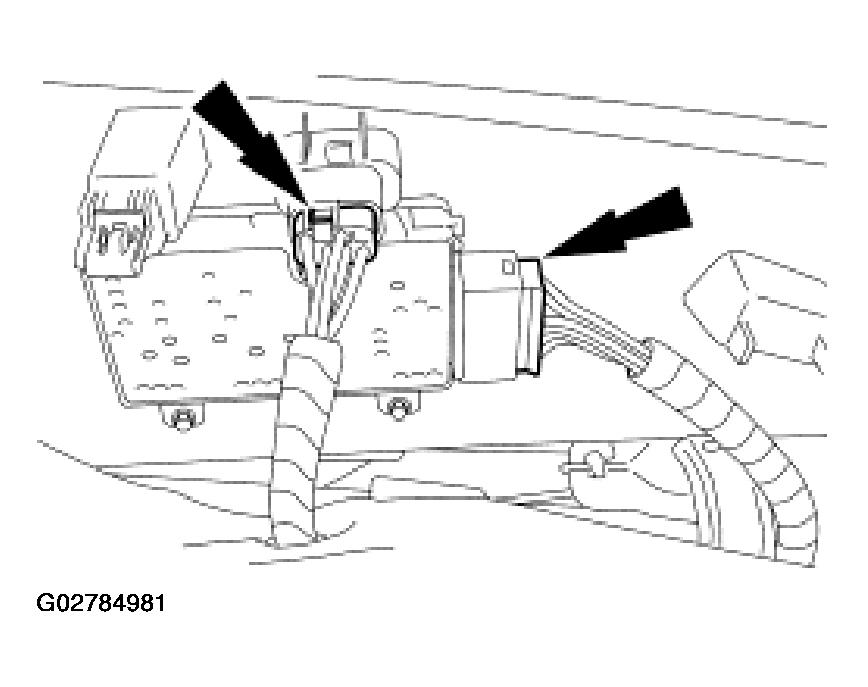

Fig 2: Connecting 8-Way Power Seat And Power Lumbar Switch Electrical Connectors
Courtesy of FORD MOTOR CO.
Push to install the three side shield retainers onto the seat frame.

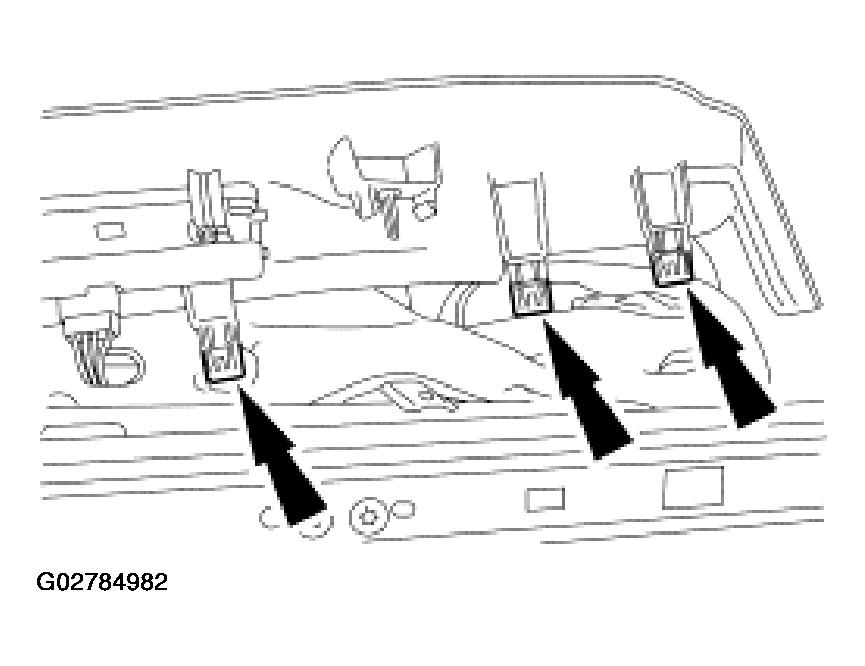

Fig 3: Installing Side Shield Retainers Onto Seat Frame
Courtesy of FORD MOTOR CO.
Access and install the front side shield screw.

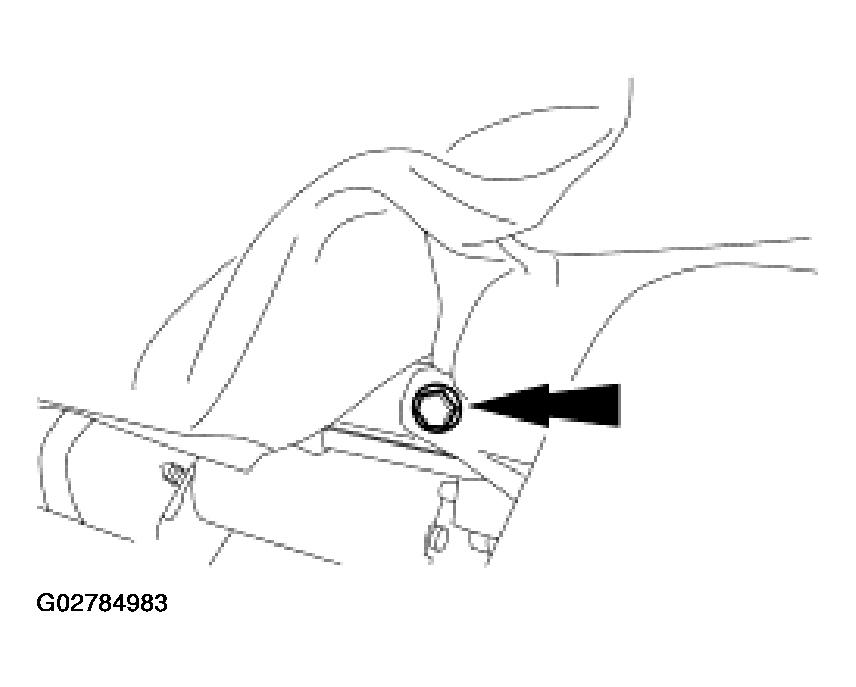

Fig 4: Installing Front Side Shield Screw
Courtesy of FORD MOTOR CO.
Install the 40 percent seat and repower the SRS. For additional information, refer to FRONT SEAT - 40 PERCENT .
