Plenum Chamber Control Components - DATC

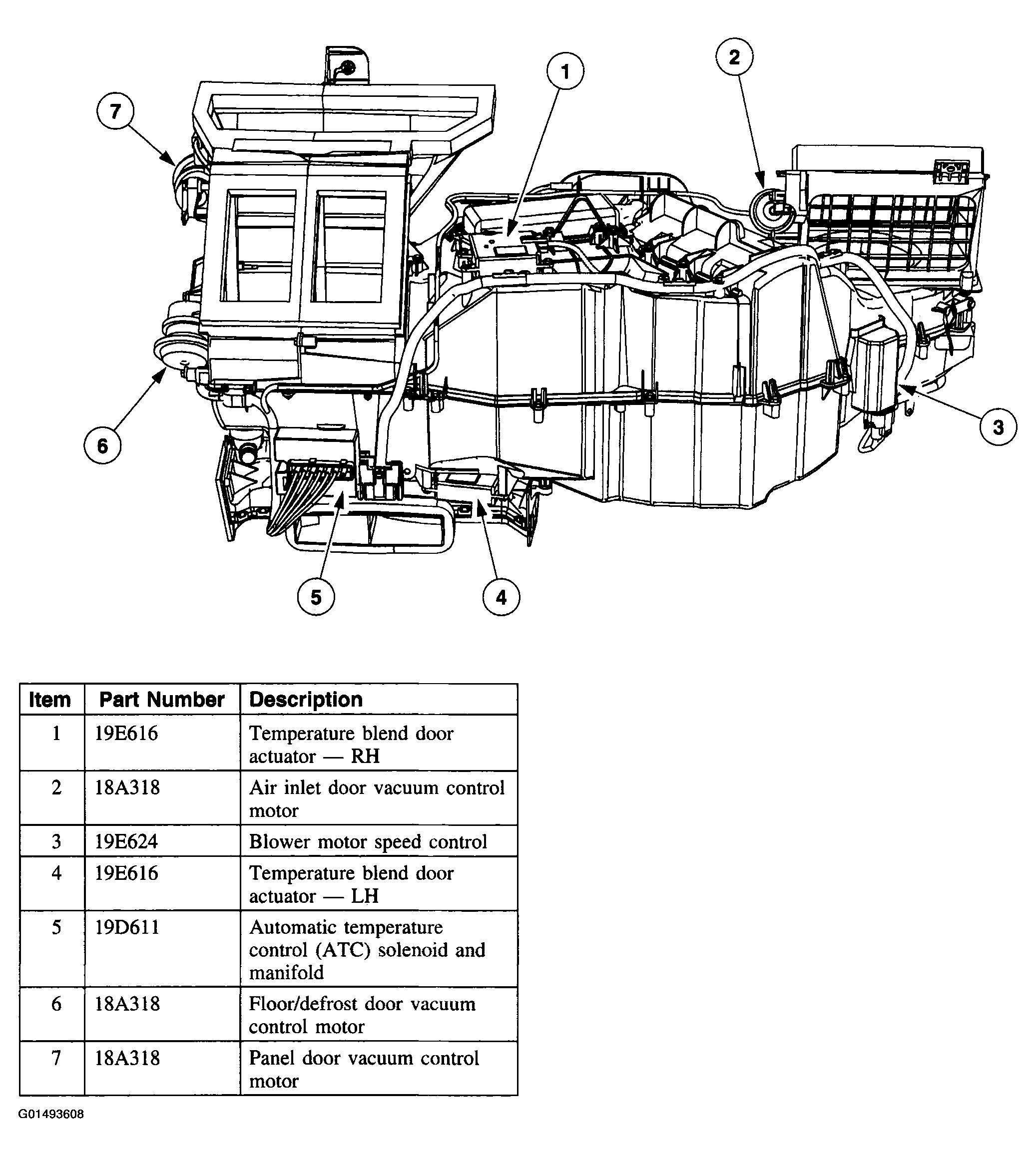

Fig 1: Identifying Plenum Chamber Control Components - DATC
G01493608Courtesy of FORD MOTOR CO.
