Plenum Chamber Control Components - EATC

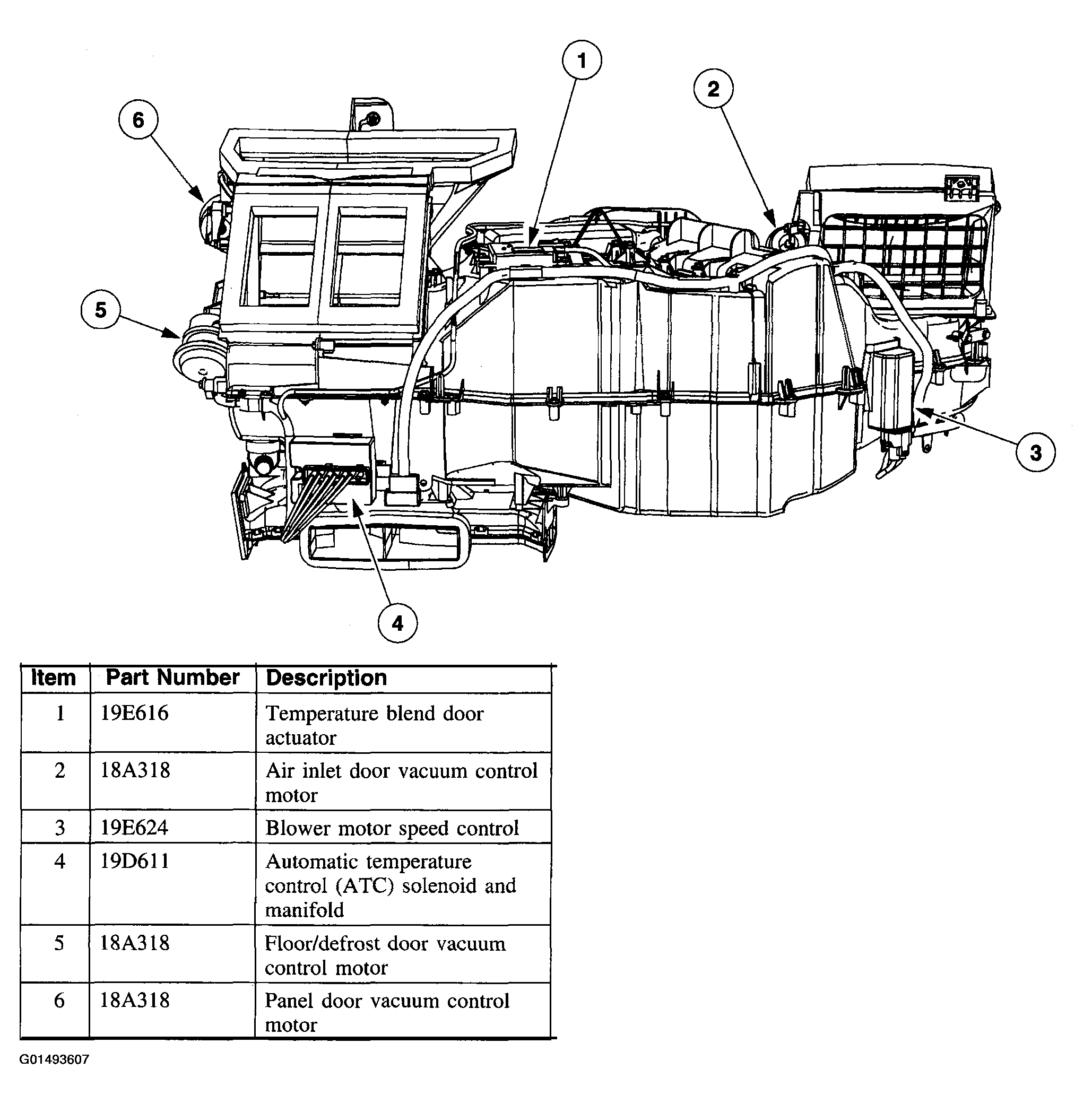

Fig 1: Identifying Plenum Chamber Control Components - EATC
G01493607Courtesy of FORD MOTOR CO.
