Manual Climate Control

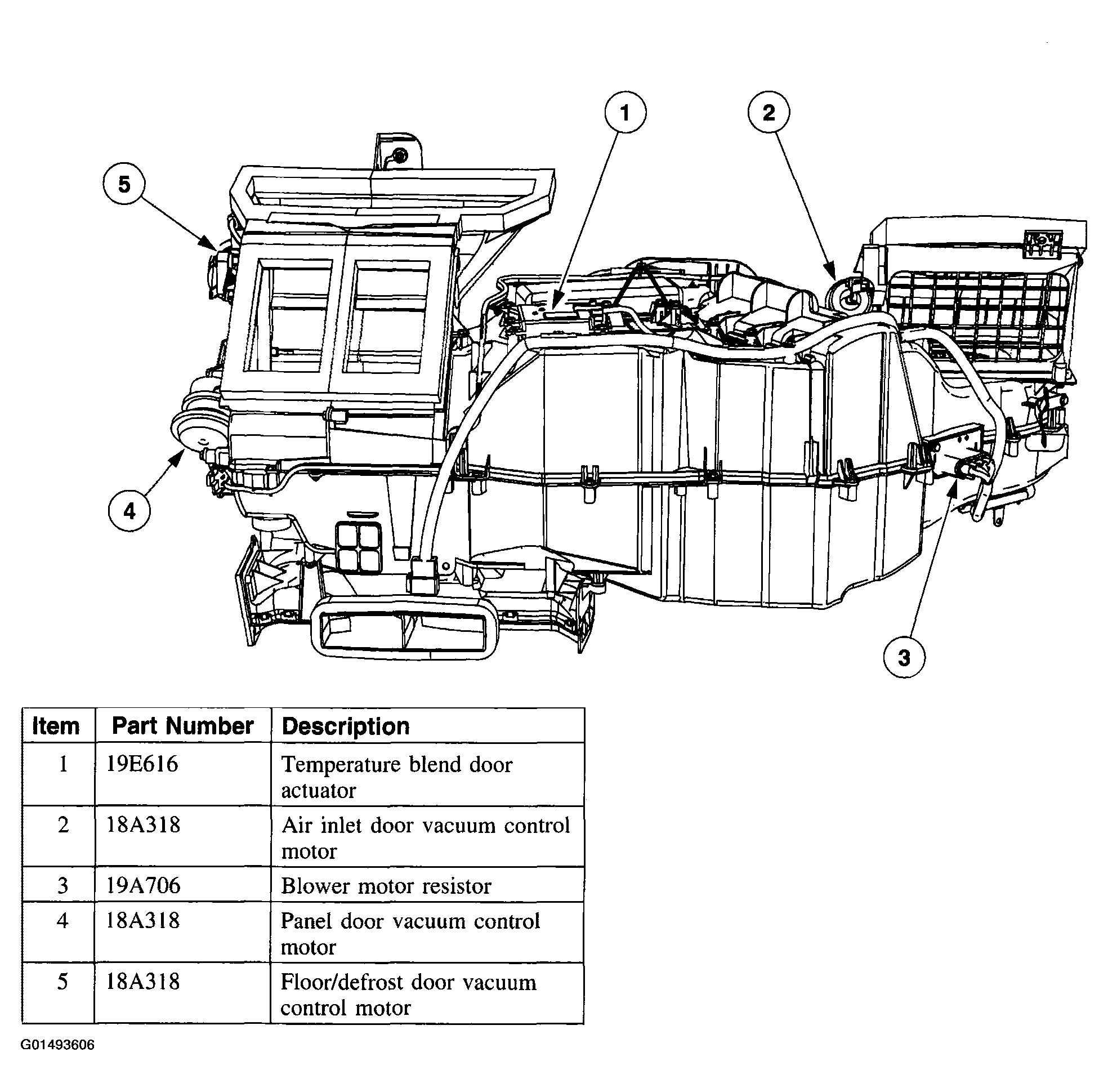

Fig 1: Identifying Plenum Chamber Control Components - Manual

Courtesy of FORD MOTOR CO.

The manual climate control components are used to select:

• air inlet source (outside or recirculated).
• blower motor speed.
• discharge air temperature (temperature blend).
• discharge air location (defrost, panel, floor).
• A/C compressor operation.
