Removal and Installation

  1. Remove the manual climate control assembly. For additional information, refer to CLIMATE CONTROL ASSEMBLY - MANUAL  .
  2. Pull and remove the function selector knob.
  3. Release the clips and remove the function selector switch.

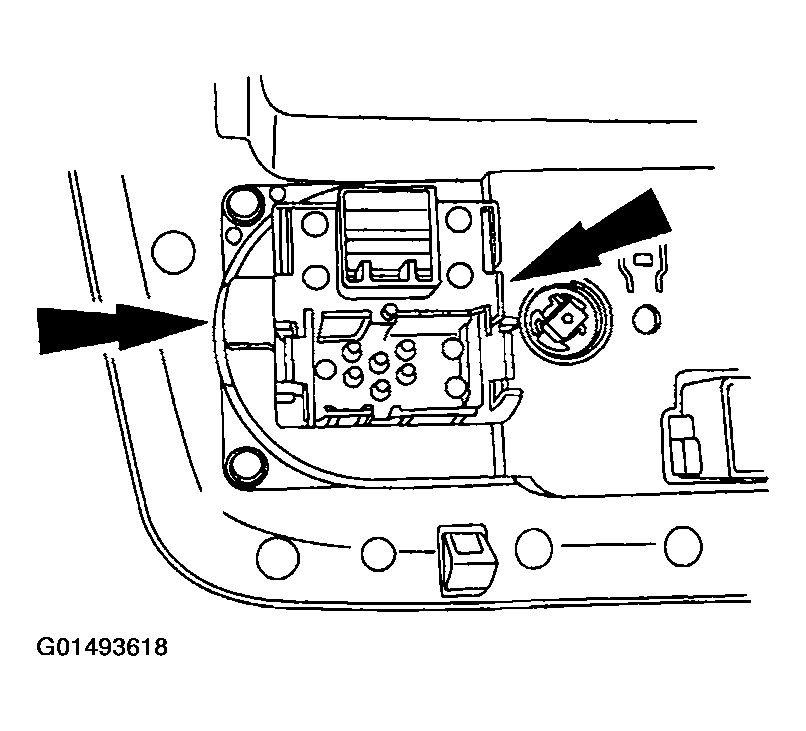

    Fig 1: Locating Clips Manual Climate Control Assembly
    G01493618Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
