Steering Column: Specifications

Identifying General Specifications

Item	Specification
Lubricants
Premium Long Life Grease XG-1C	ESA-M1C75-B

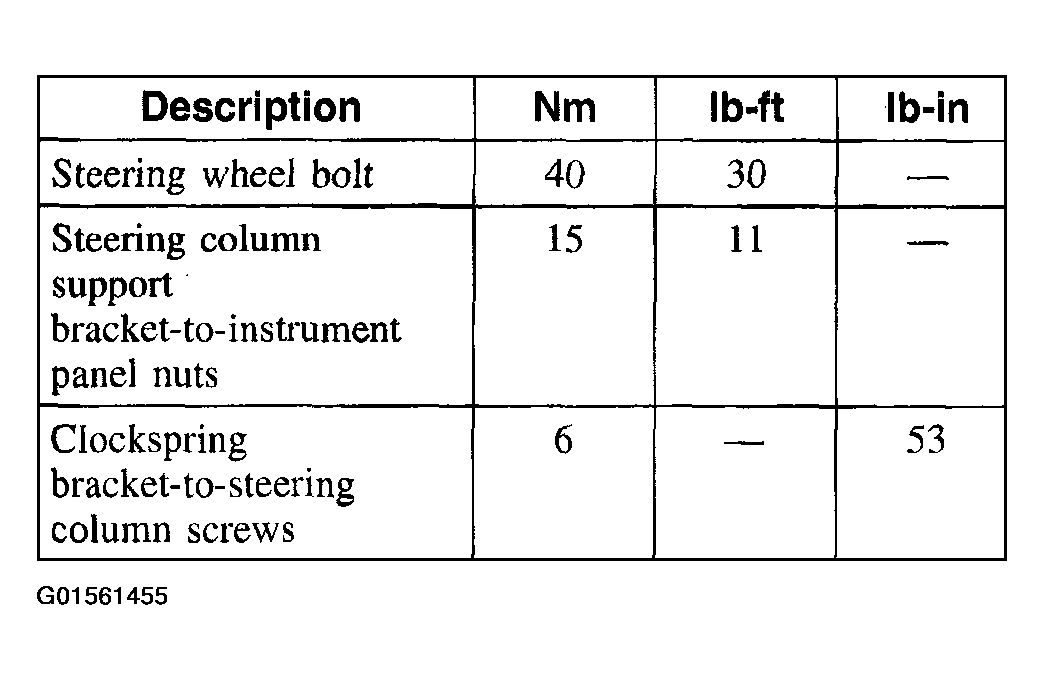

Fig 1: Torque Specification Table (1 Of 2)

Courtesy of FORD MOTOR CO.

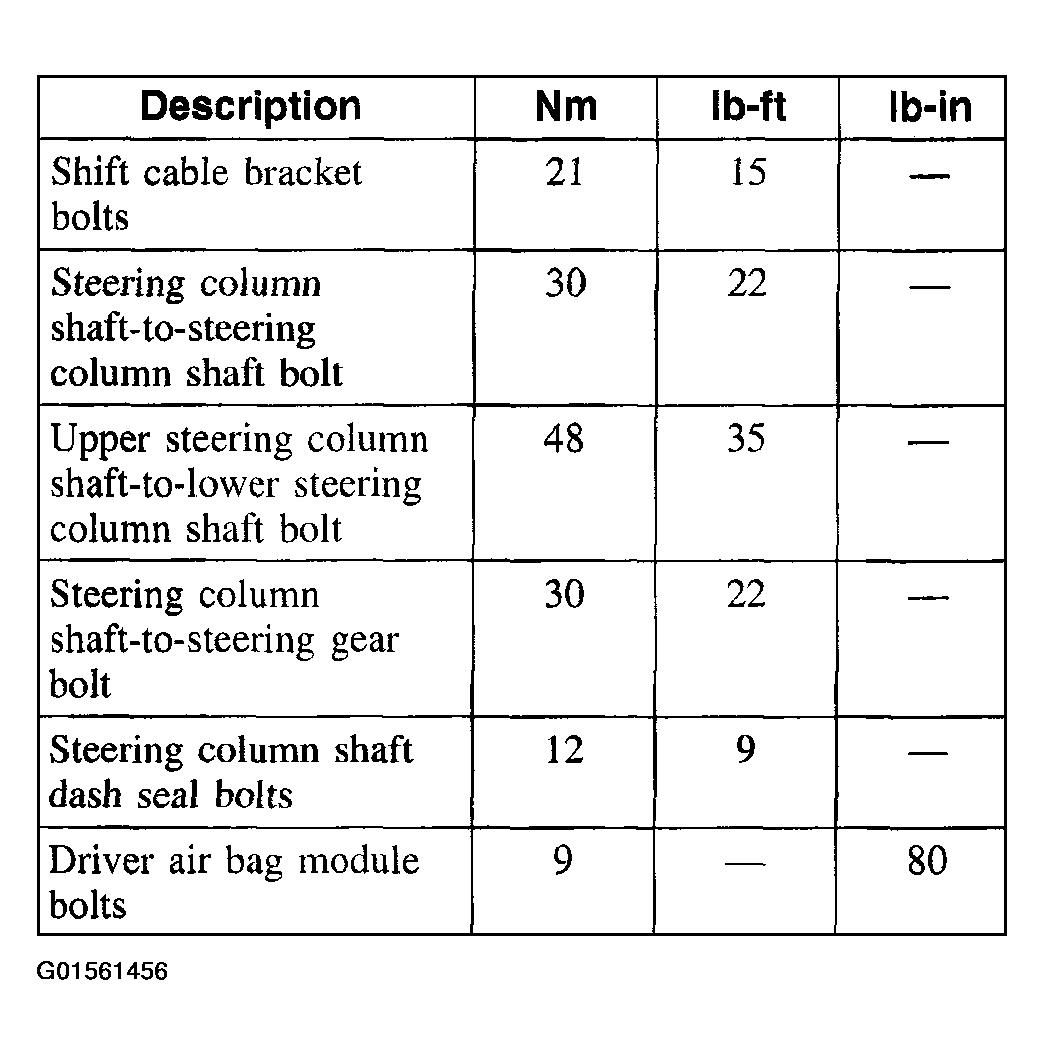

Fig 2: Torque Specification Table (2 Of 2)

Courtesy of FORD MOTOR CO.
