Pinpoint Test C Chart - Transmission Control Switch Is Inoperative

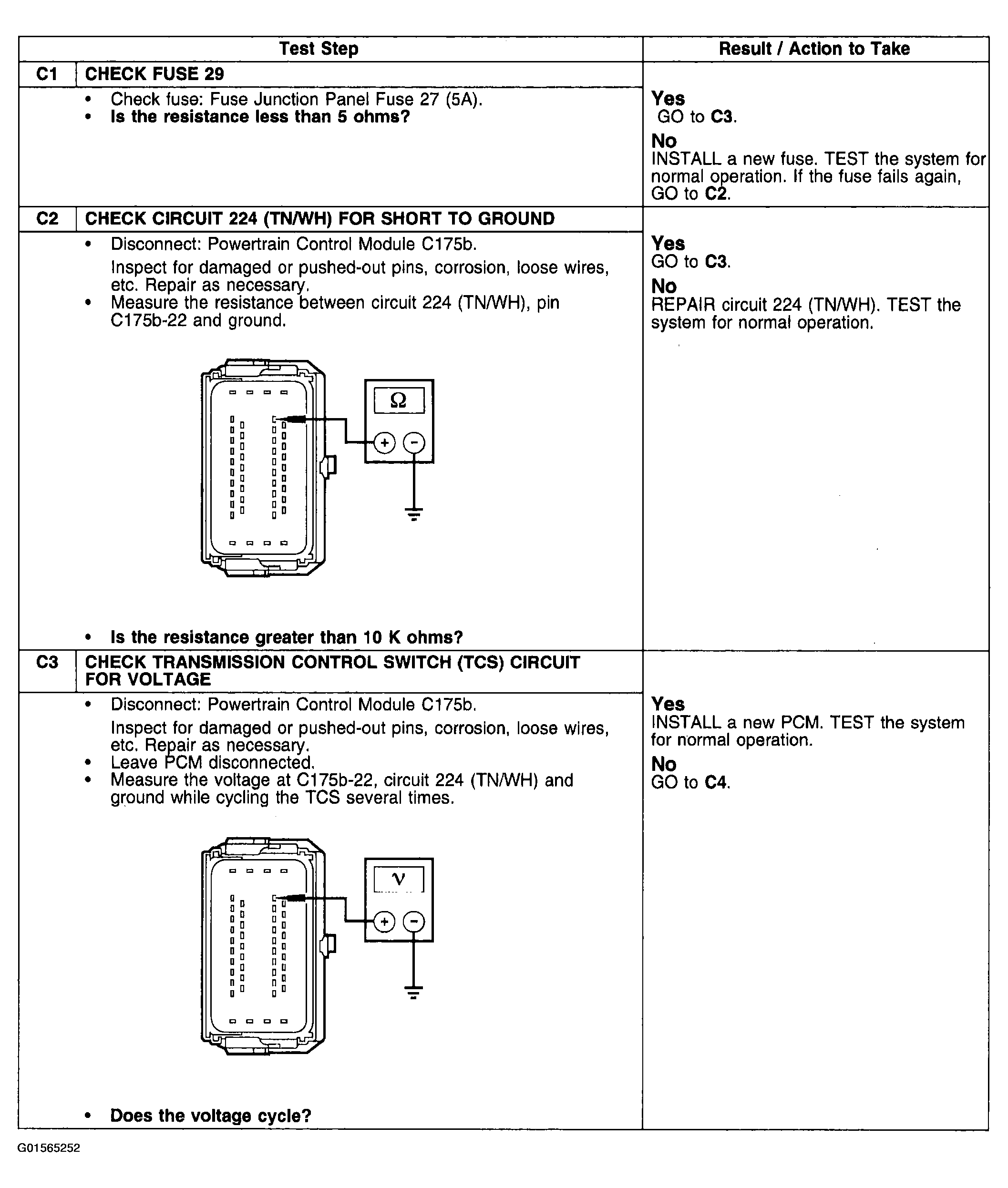

Fig 1: Pinpoint Test C Chart - Transmission Control Switch Is Inoperative (C1-C3)
G01565252Courtesy of FORD MOTOR CO.

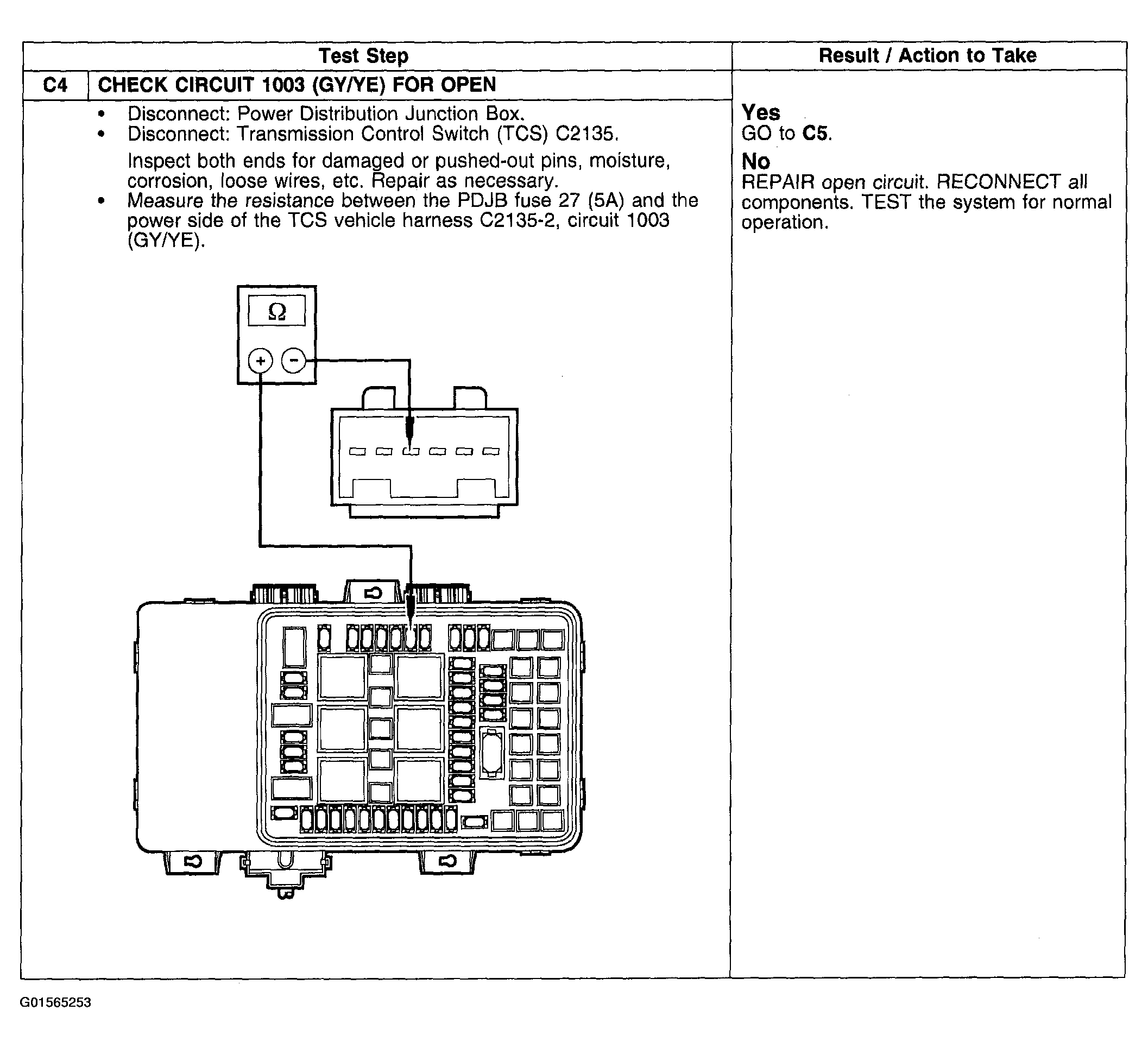

Fig 2: Pinpoint Test C Chart - Transmission Control Switch Is Inoperative (C4)
G01565253Courtesy of FORD MOTOR CO.

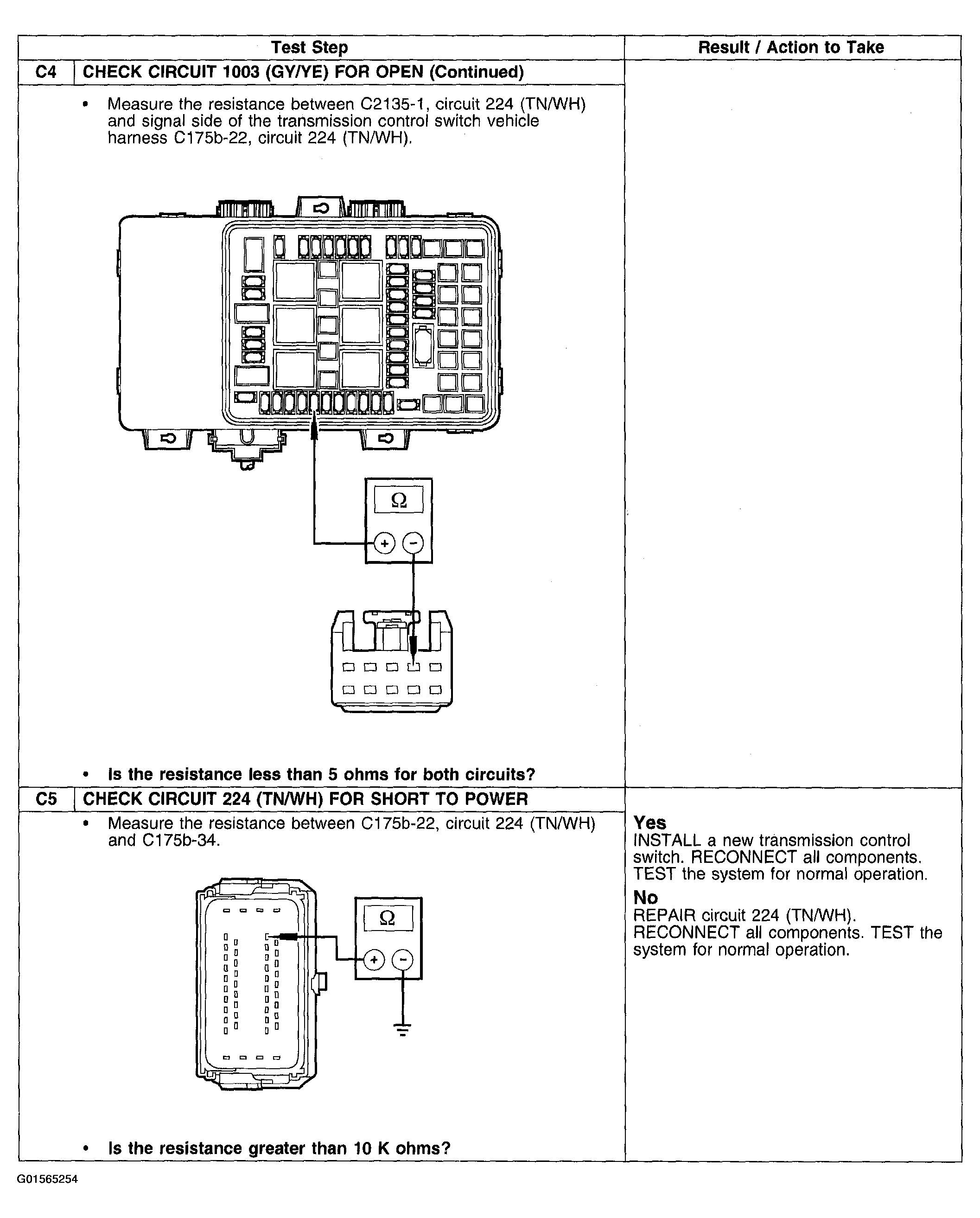

Fig 3: Pinpoint Test C Chart - Transmission Control Switch Is Inoperative (C4-C5)
G01565254Courtesy of FORD MOTOR CO.
