Home › Lincoln › 2003 › Town Car Base › Repair and Diagnosis › Body & Frame › Body, Cab Control Systems › Module Communications Network System › Diagnosis And Testing › Communications Network › System Precheck

System Precheck

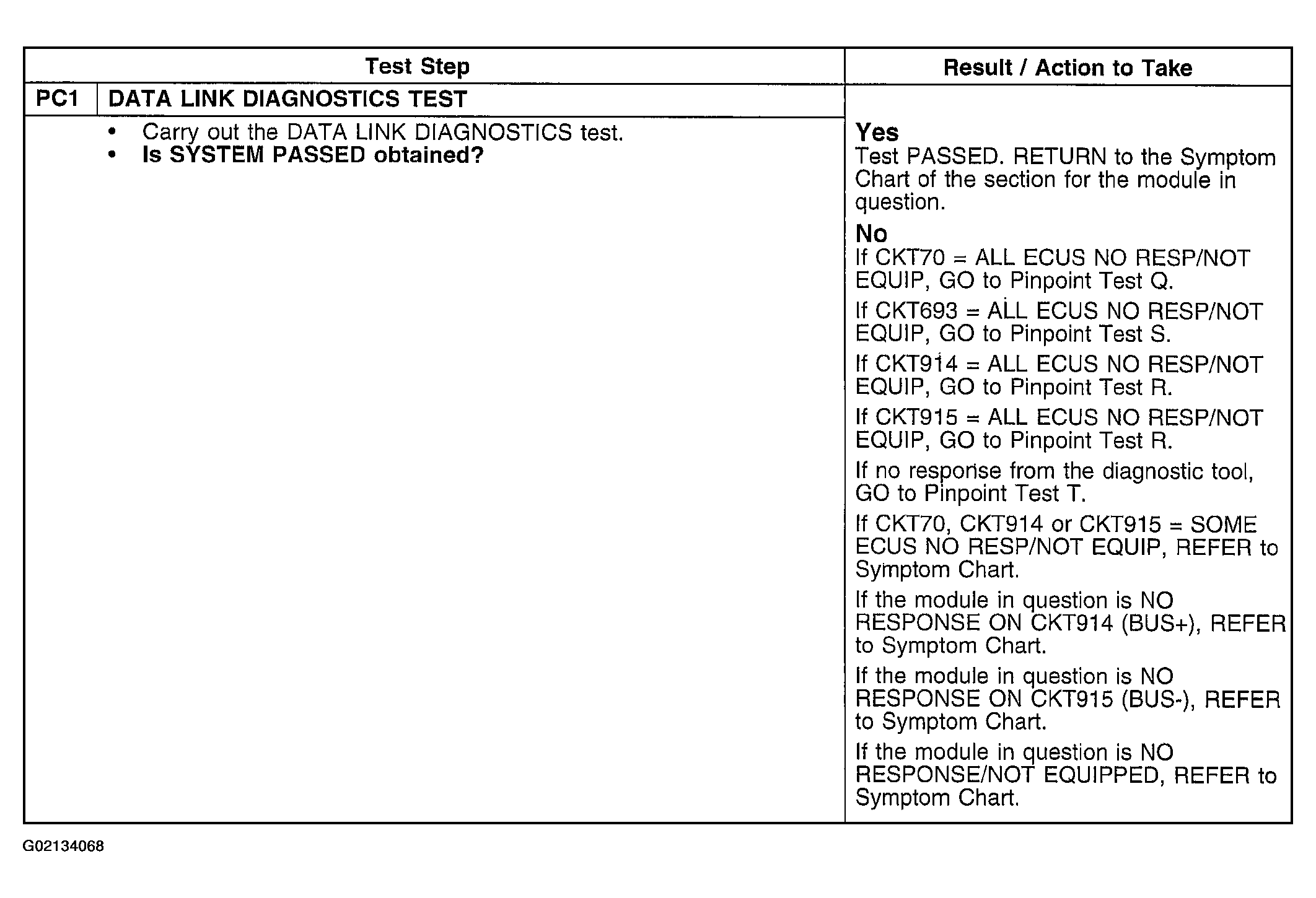

Fig 1: Pinpoint Test PC: Run The Data Link Diagnostics Network Test
G02134068Courtesy of FORD MOTOR CO.
