Door Lock Switch
Door Lock Switch

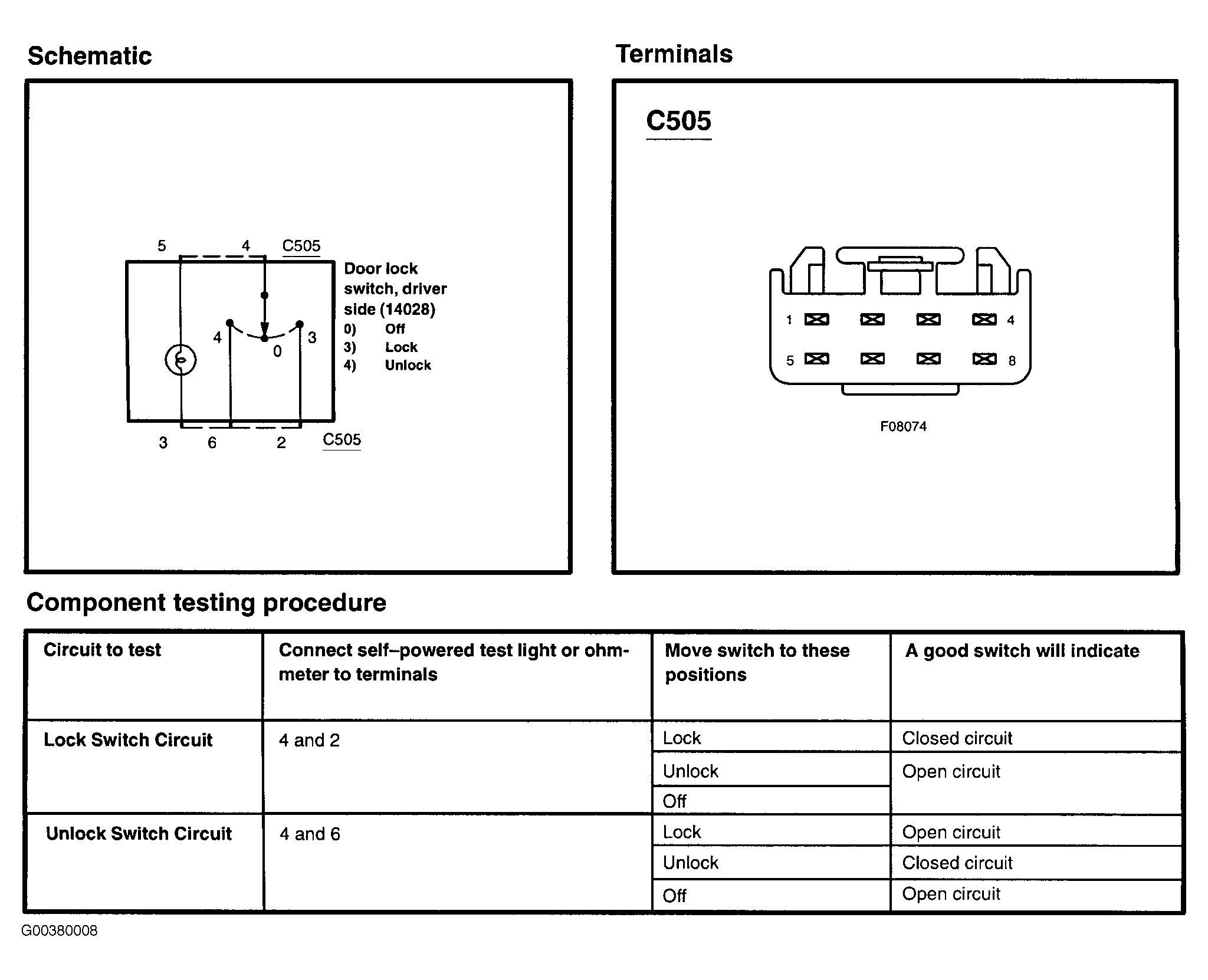

Fig 1: Testing Door Lock Switch - Driver Side
Courtesy of FORD MOTOR CO.

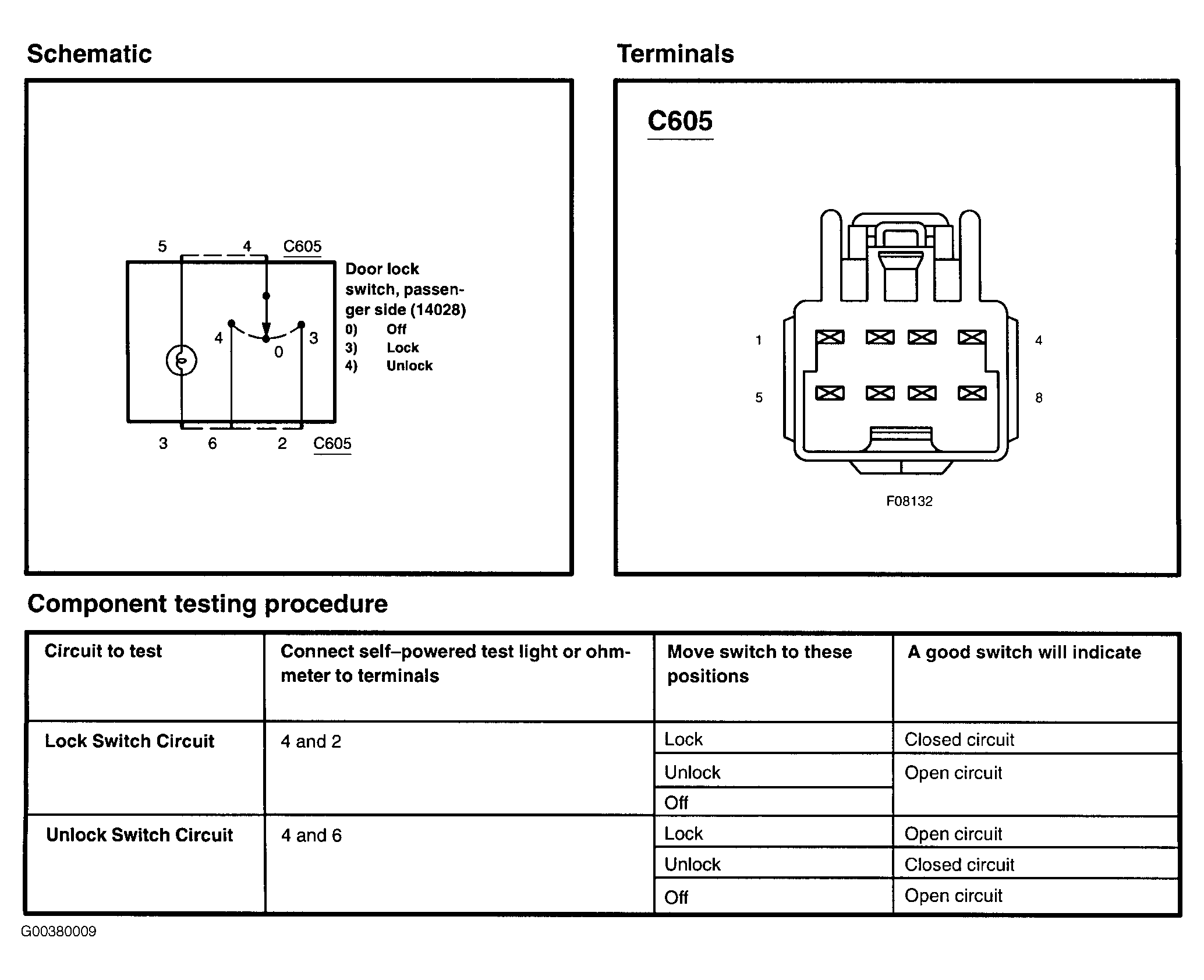

Fig 2: Testing Door Lock Switch - Passenger Side
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
