MULTIFUNCTION Switch

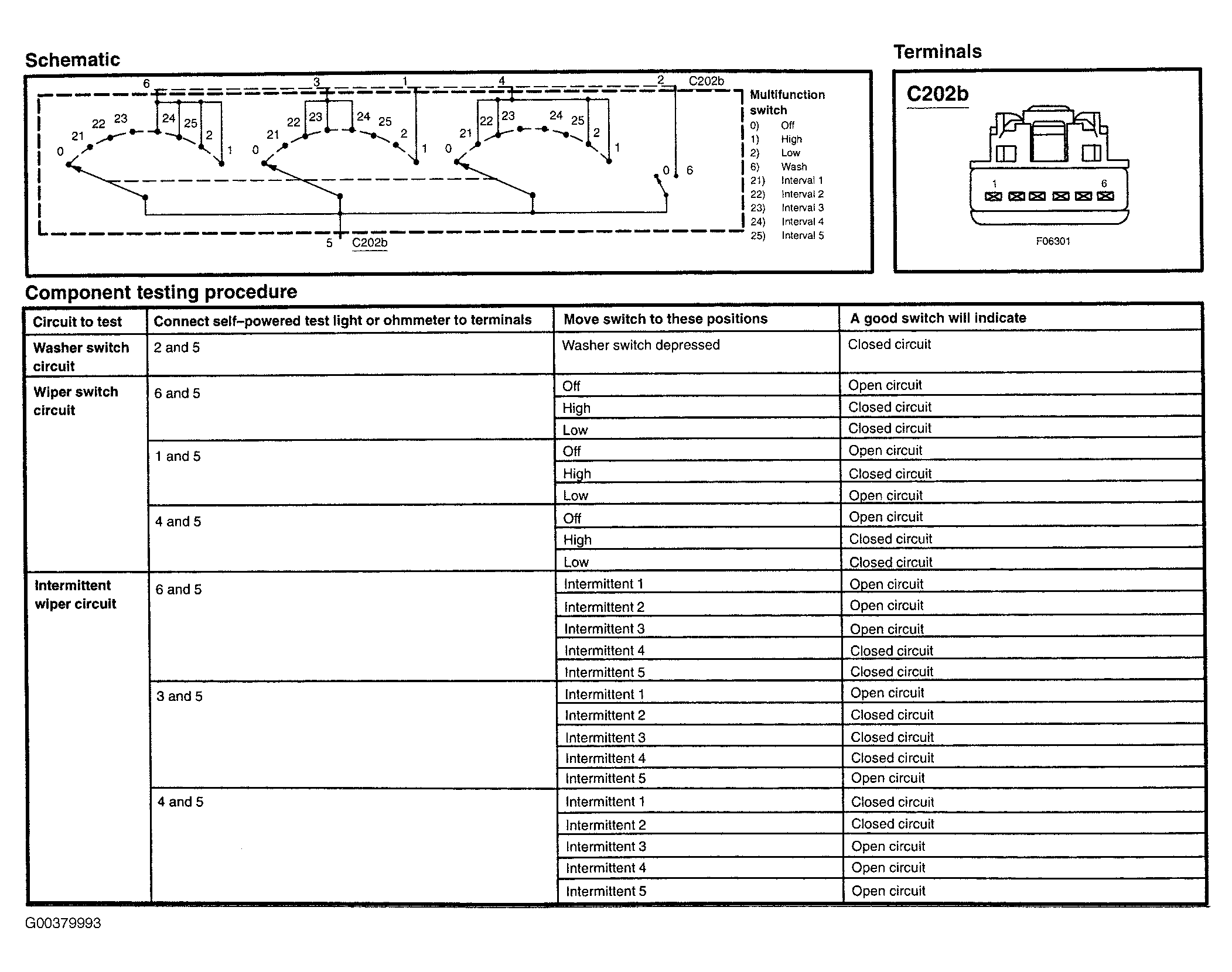

Fig 1: Testing Multifunction Switch - Front Wiper
G00379993Courtesy of FORD MOTOR CO.

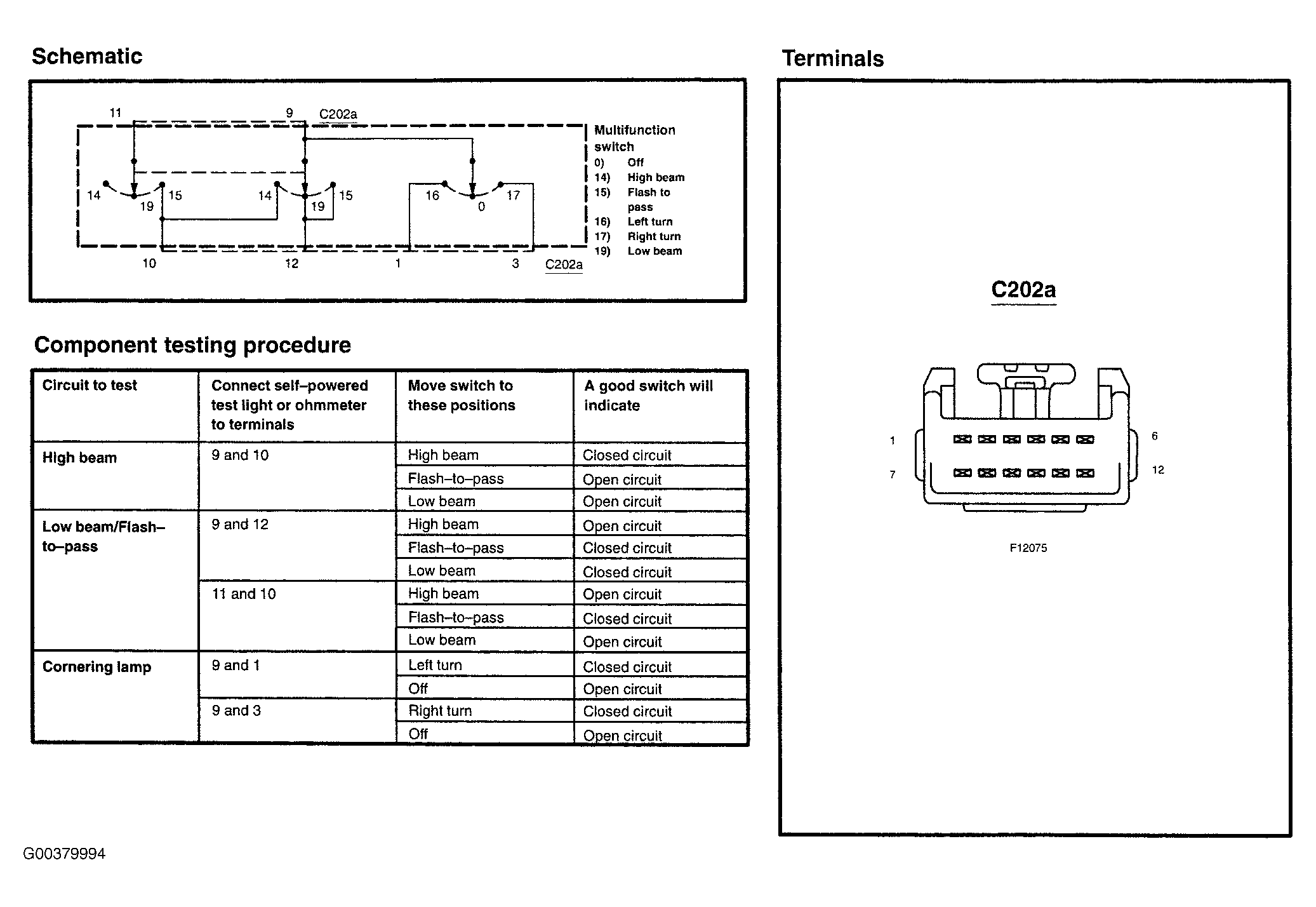

Fig 2: Testing Multifunction Switch - Lamp Portion (1 Of 2)
G00379994Courtesy of FORD MOTOR CO.

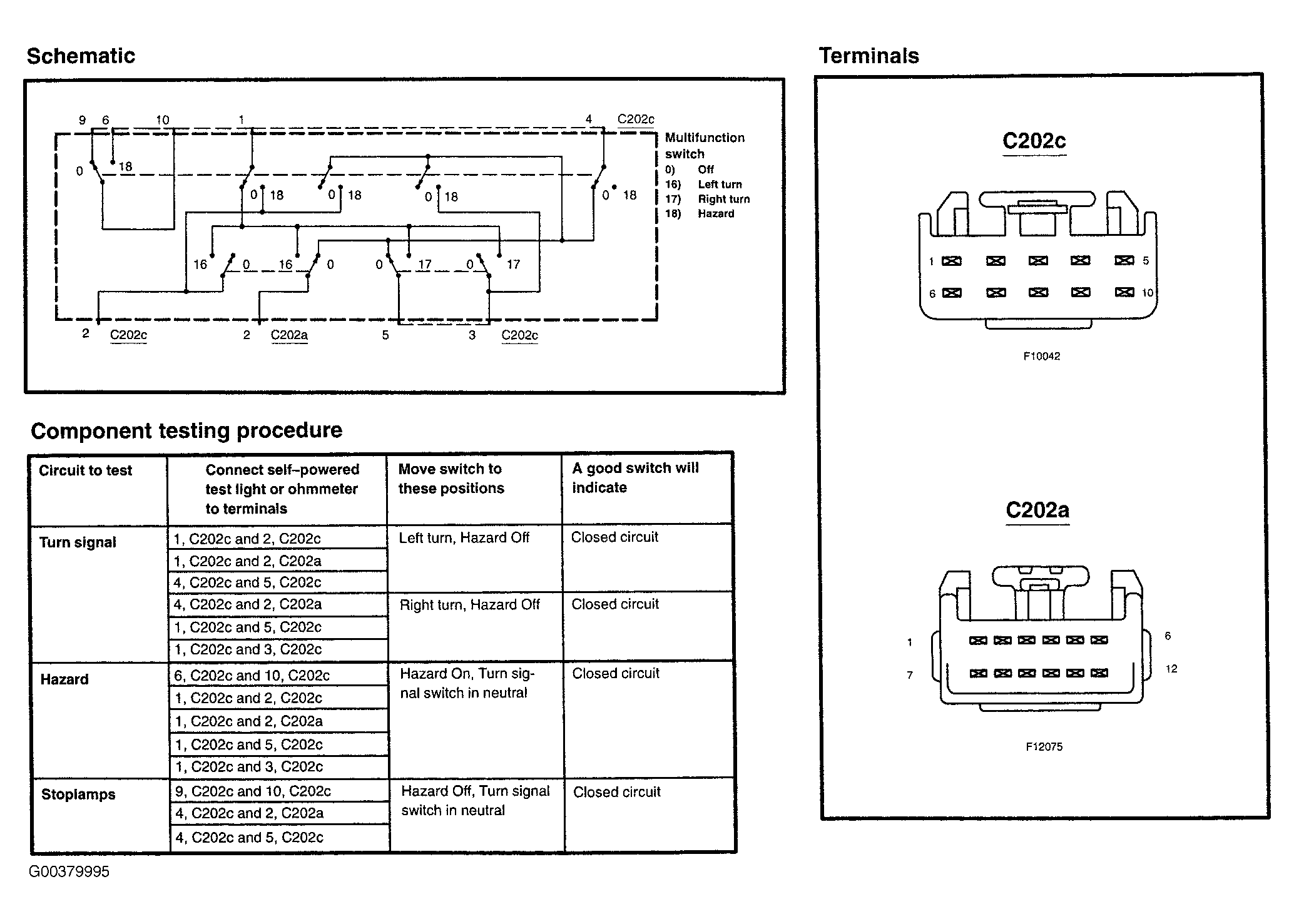

Fig 3: Testing Multifunction Switch - Lamp Portion (2 Of 2)
G00379995Courtesy of FORD MOTOR CO.
