Steering
›
Steering Column
›
Description And Operation
›
Steering Column
Steering Column

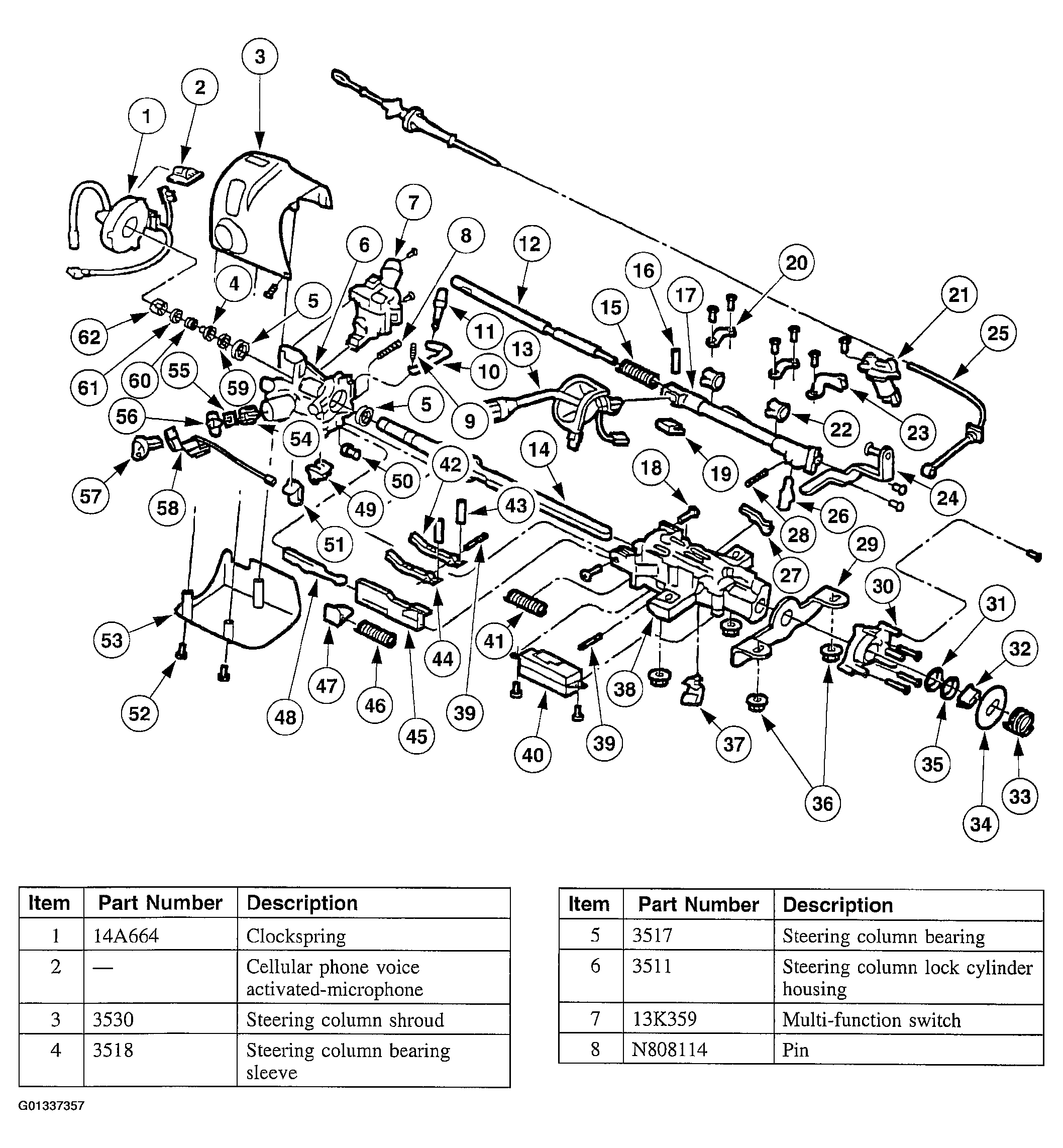

Fig 1: Steering Column
Courtesy of FORD MOTOR CO.

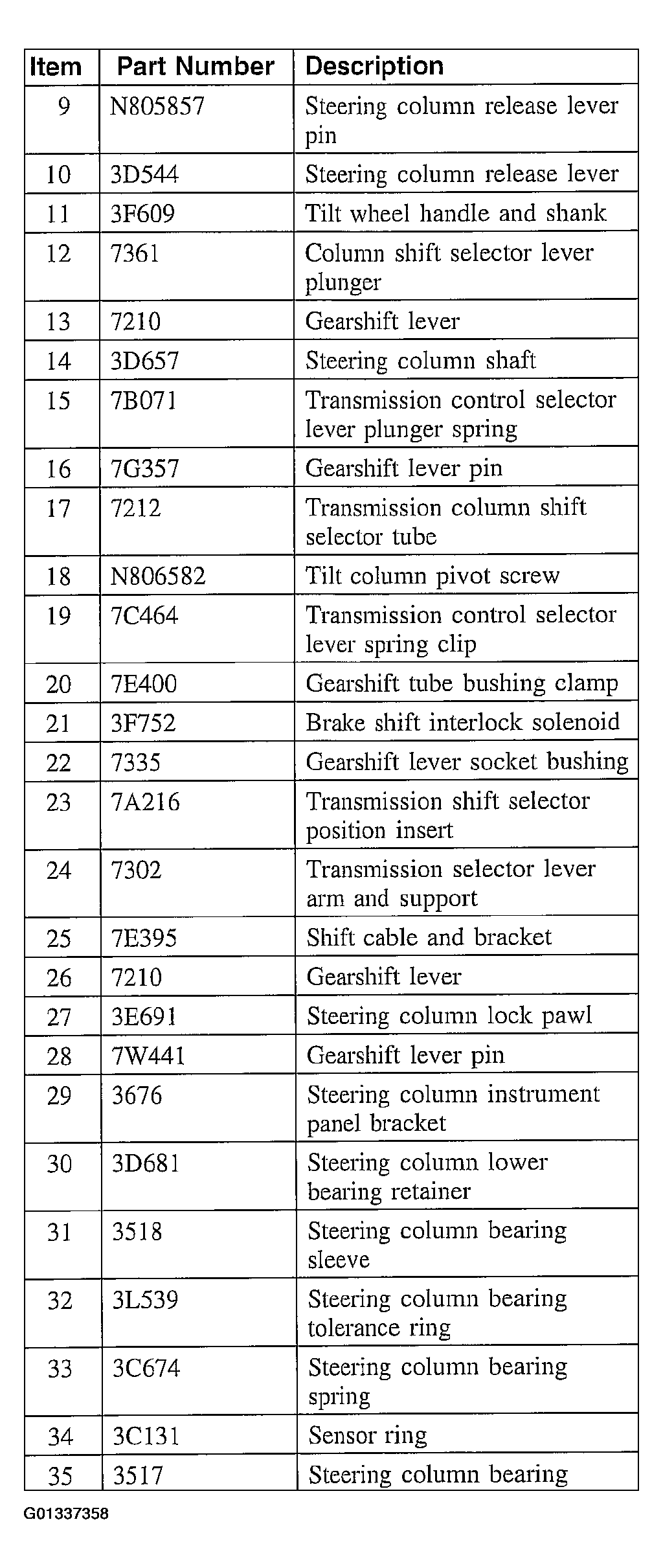

Fig 2: Steering Column Legend (1 Of 2)
Courtesy of FORD MOTOR CO.

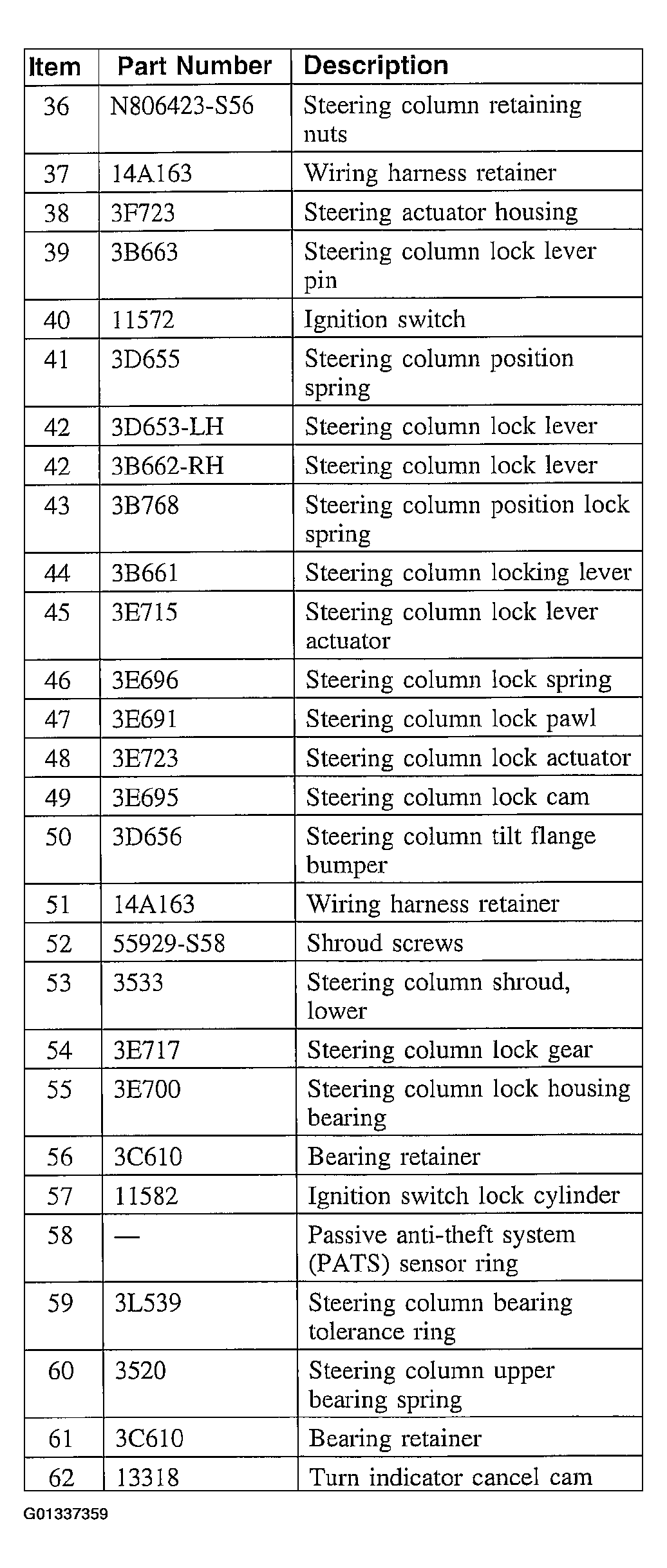

Fig 3: Steering Column Legend (2 Of 2)
Courtesy of FORD MOTOR CO.

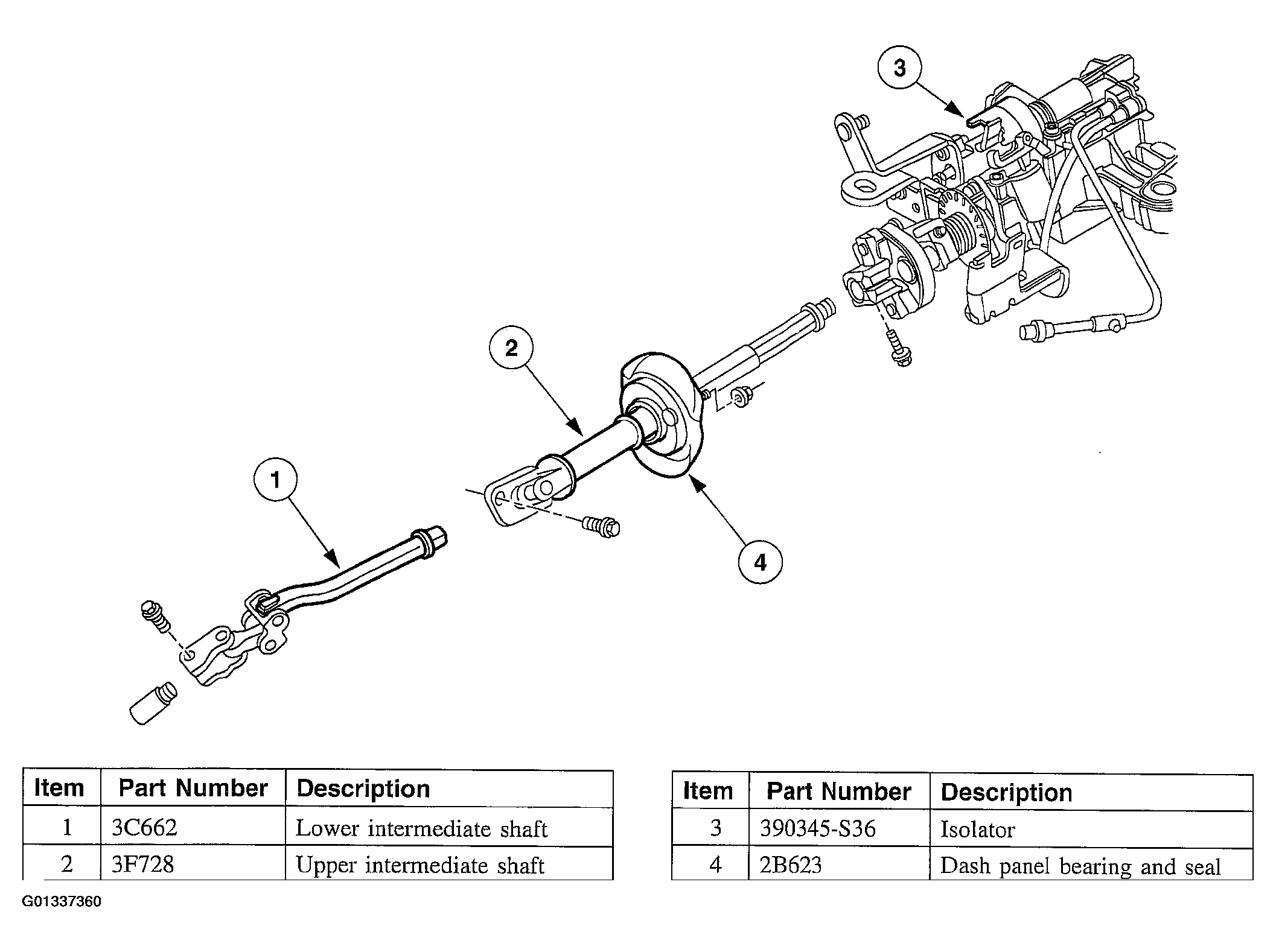

Fig 4: Intermediate Shaft Components
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
