Main Components and Functions

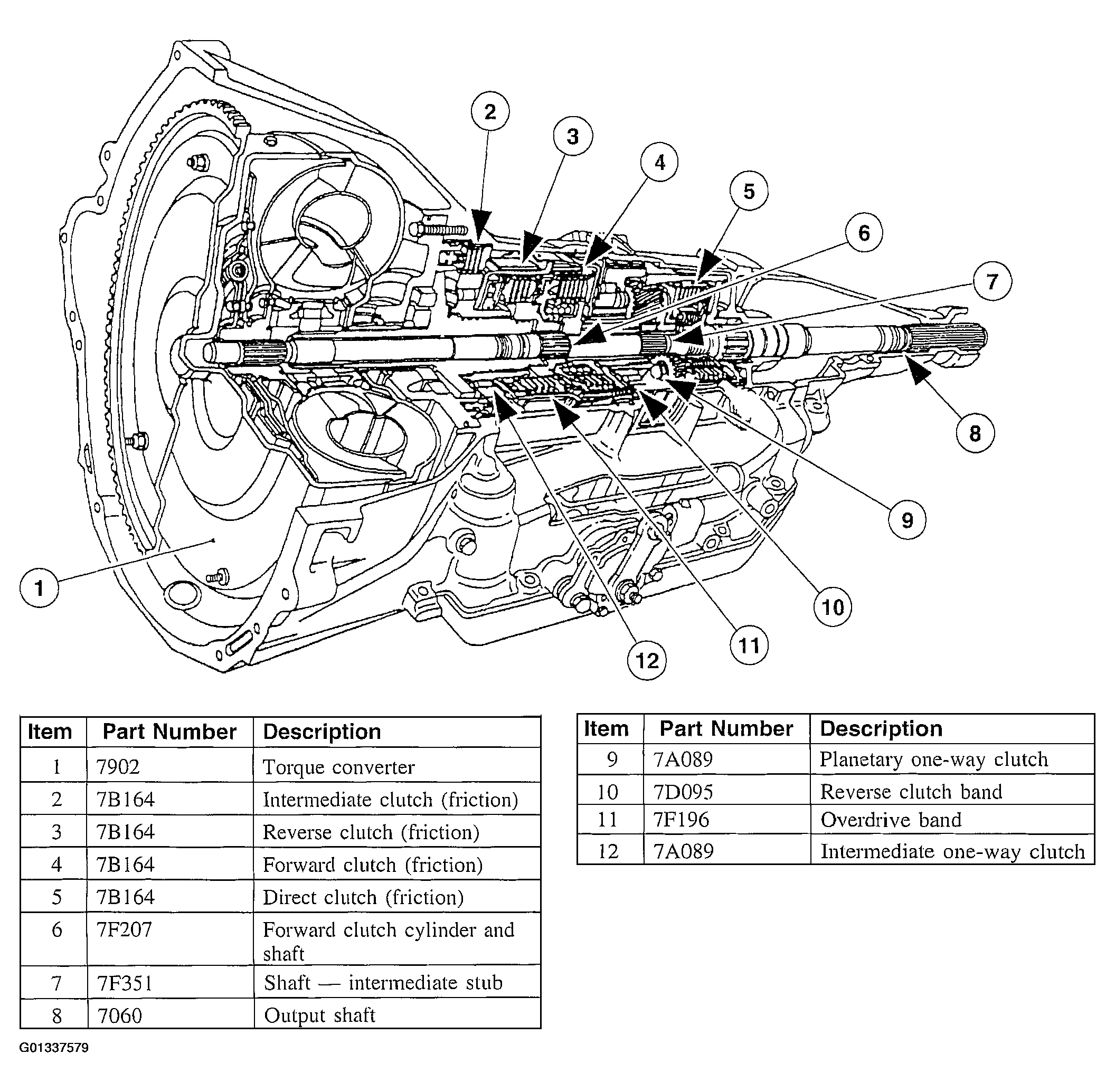

Fig 1: Transmission Main Components - Sectional View
G01337579Courtesy of FORD MOTOR CO.
