Pinpoint Test A: No Communication With The Air Suspension Module

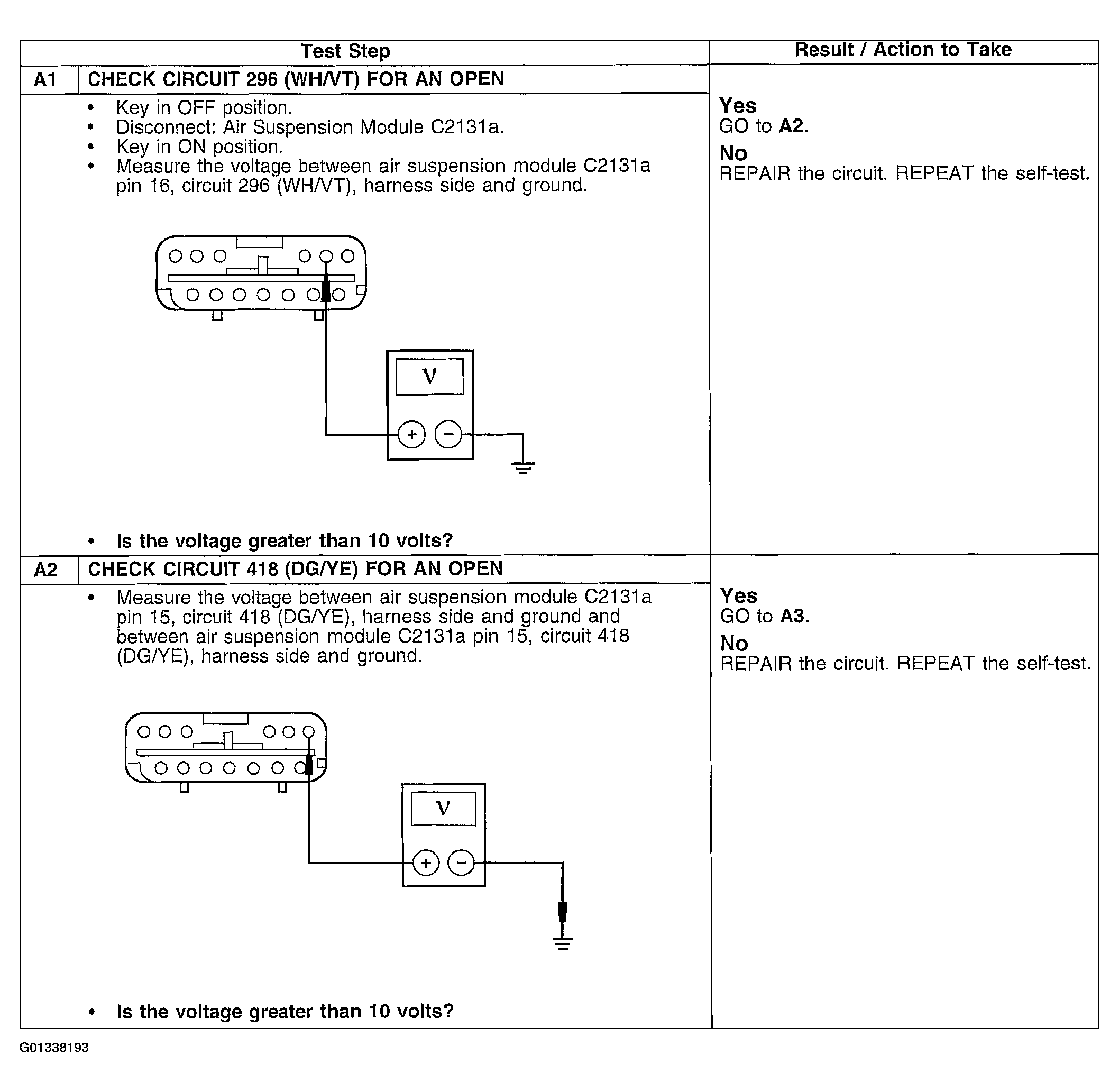

Fig 1: Pinpoint Test A (Steps A1-A2)
G01338193Courtesy of FORD MOTOR CO.

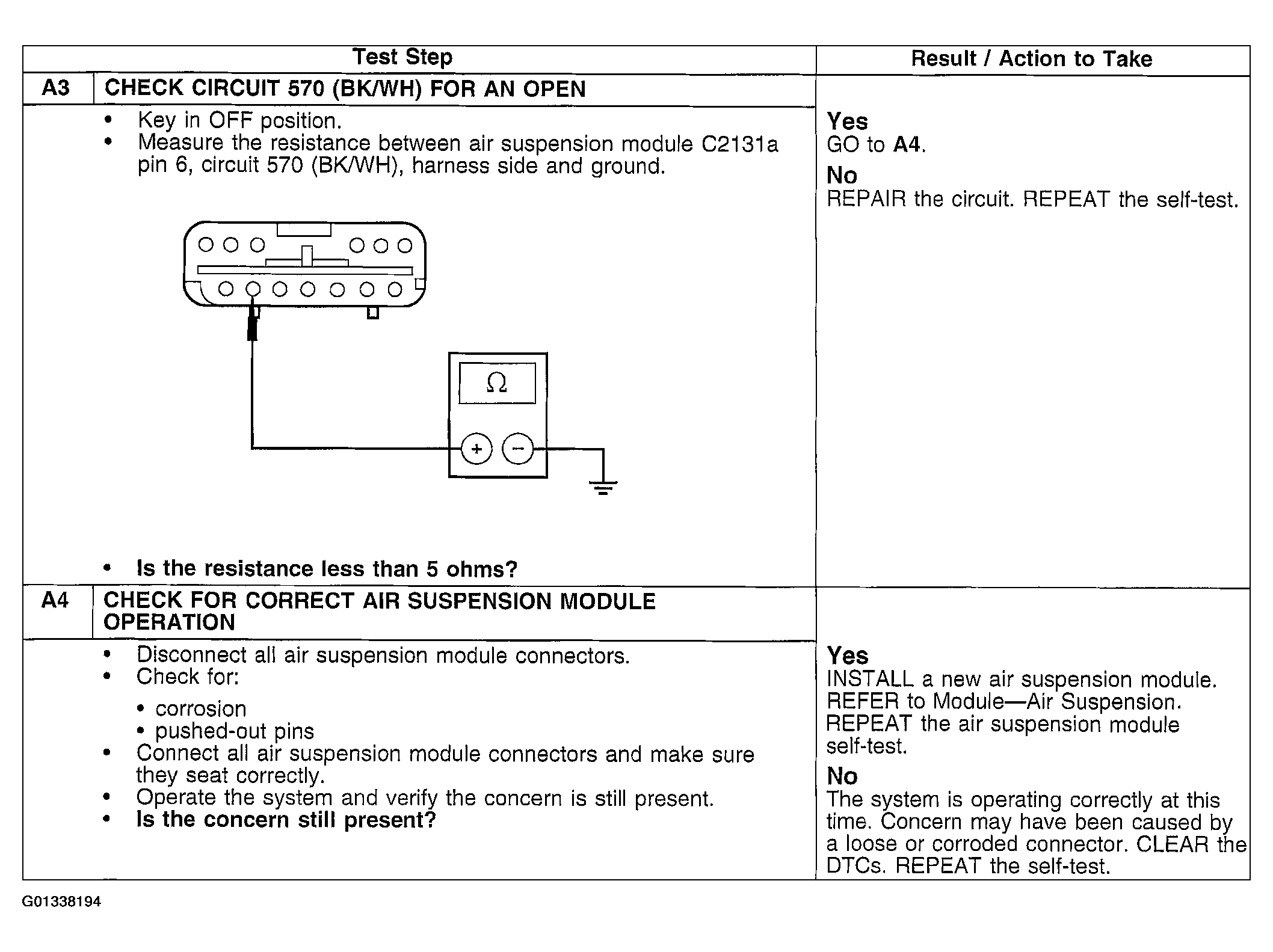

Fig 2: Pinpoint Test A (Steps A3-A4)
G01338194Courtesy of FORD MOTOR CO.
