Pinpoint Test C: No Communication With The Driver Seat Module (DSM)

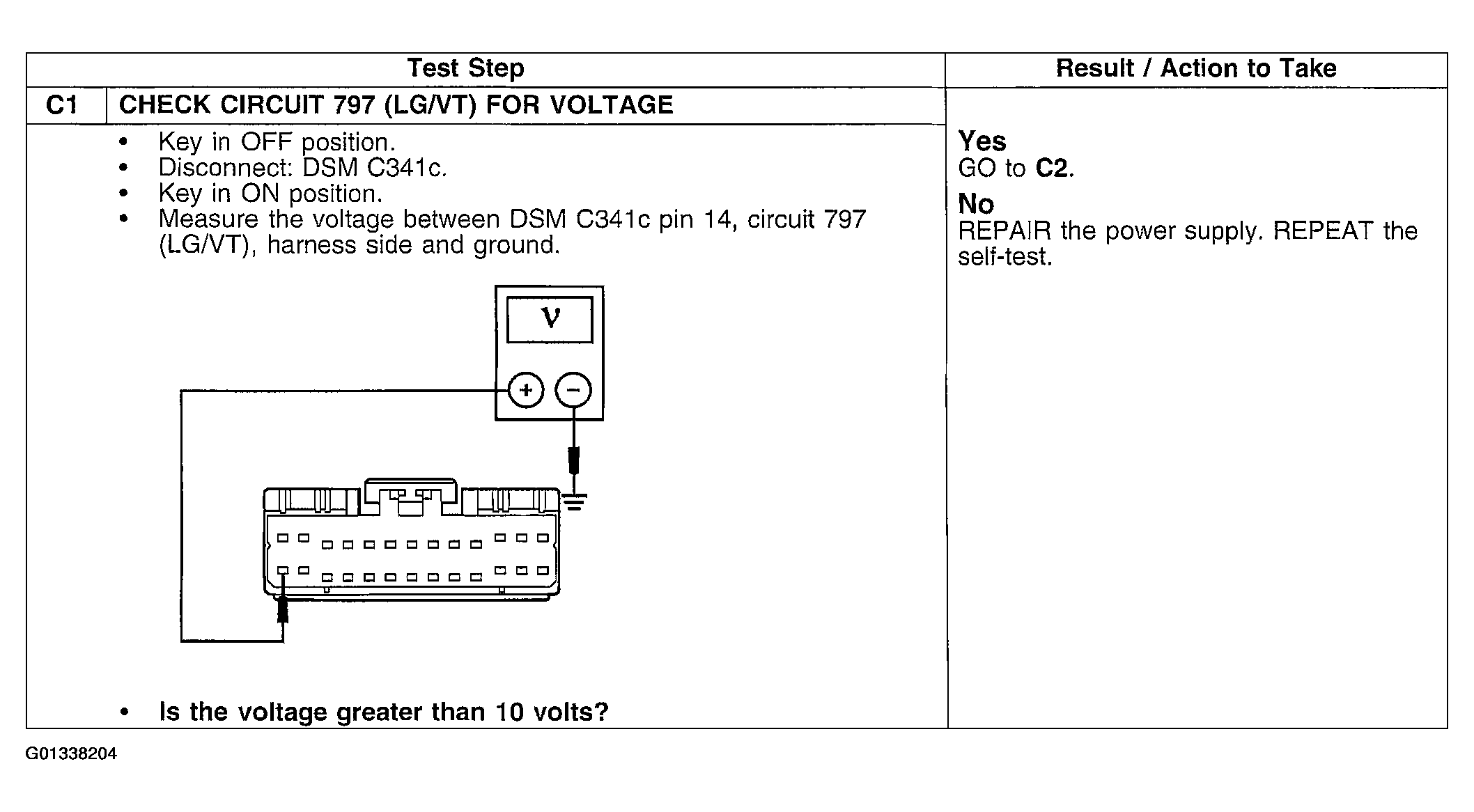

Fig 1: Pinpoint Test C (Step C1)
G01338204Courtesy of FORD MOTOR CO.

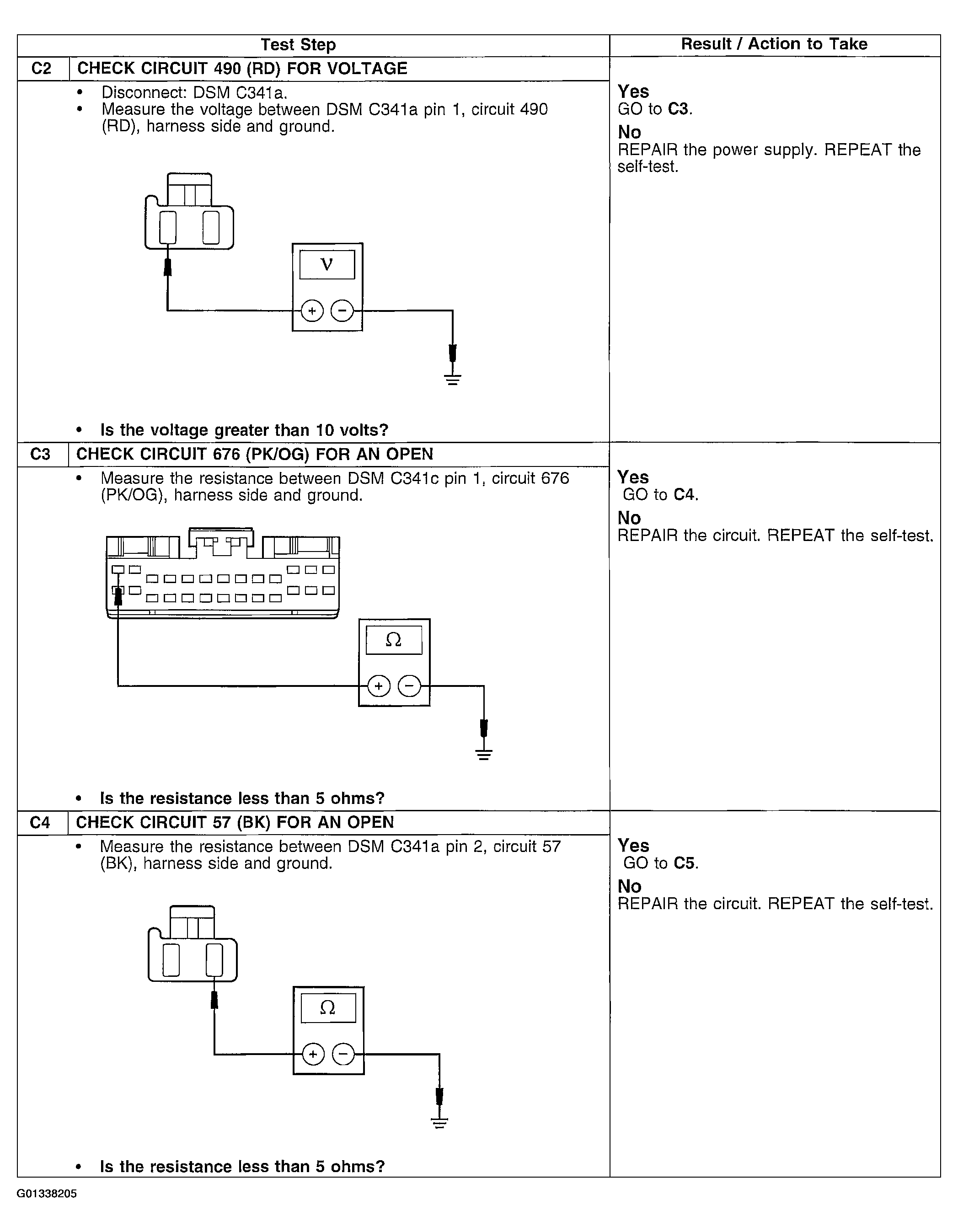

Fig 2: Pinpoint Test C (Steps C2-C4)
G01338205Courtesy of FORD MOTOR CO.

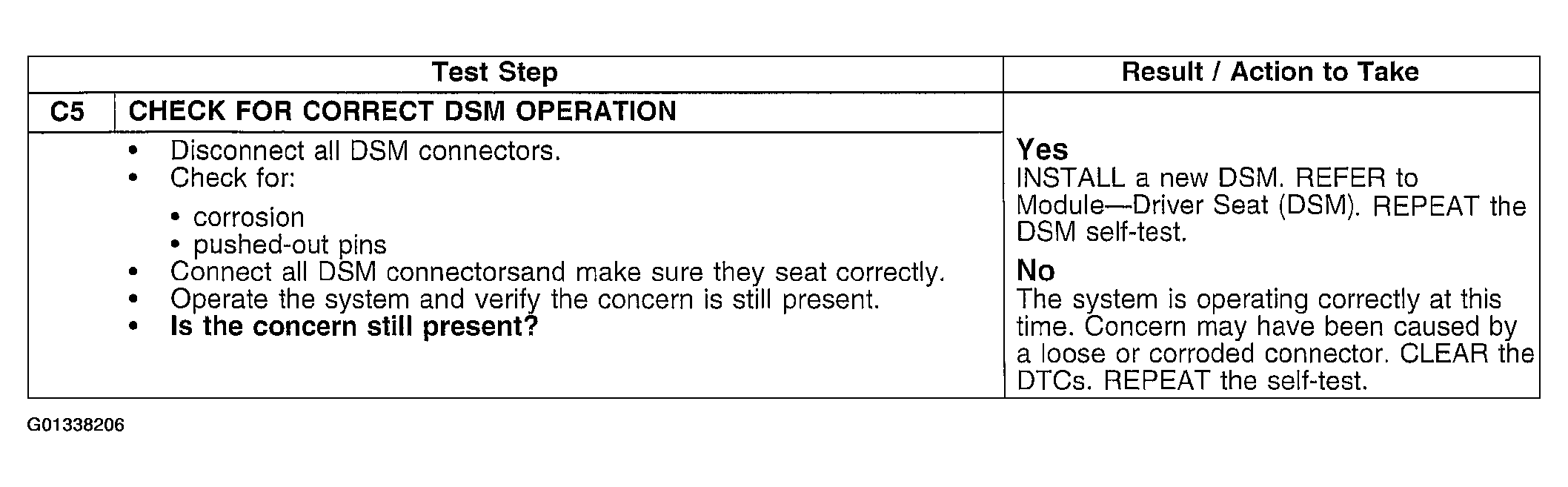

Fig 3: Pinpoint Test C (Step C5)
G01338206Courtesy of FORD MOTOR CO.
