Pinpoint Test B: The Audio Control Module (ACM) Does Not Respond To The Diagnostic Tool

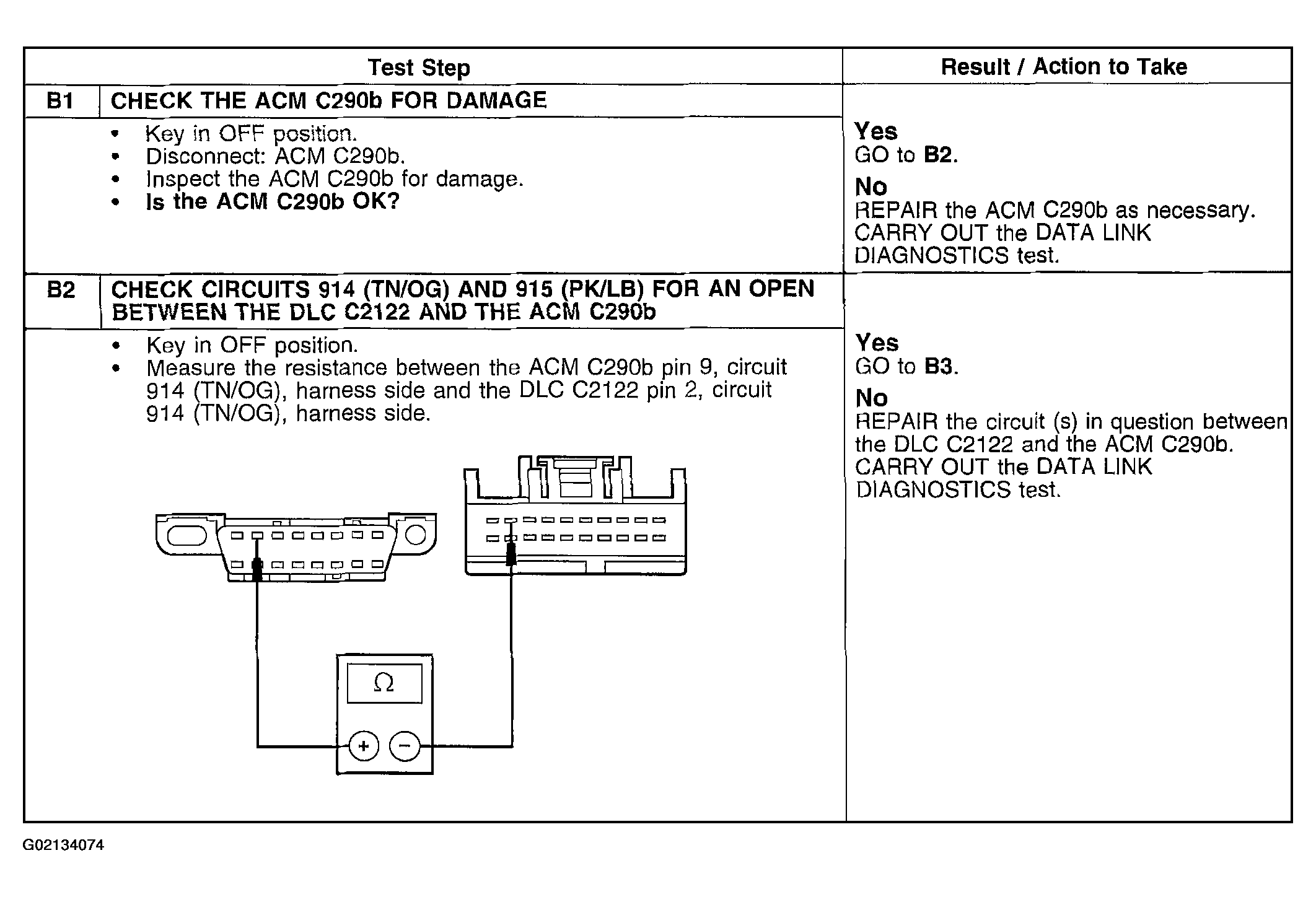

Fig 1: Pinpoint Test B (1 Of 2)
G02134074Courtesy of FORD MOTOR CO.

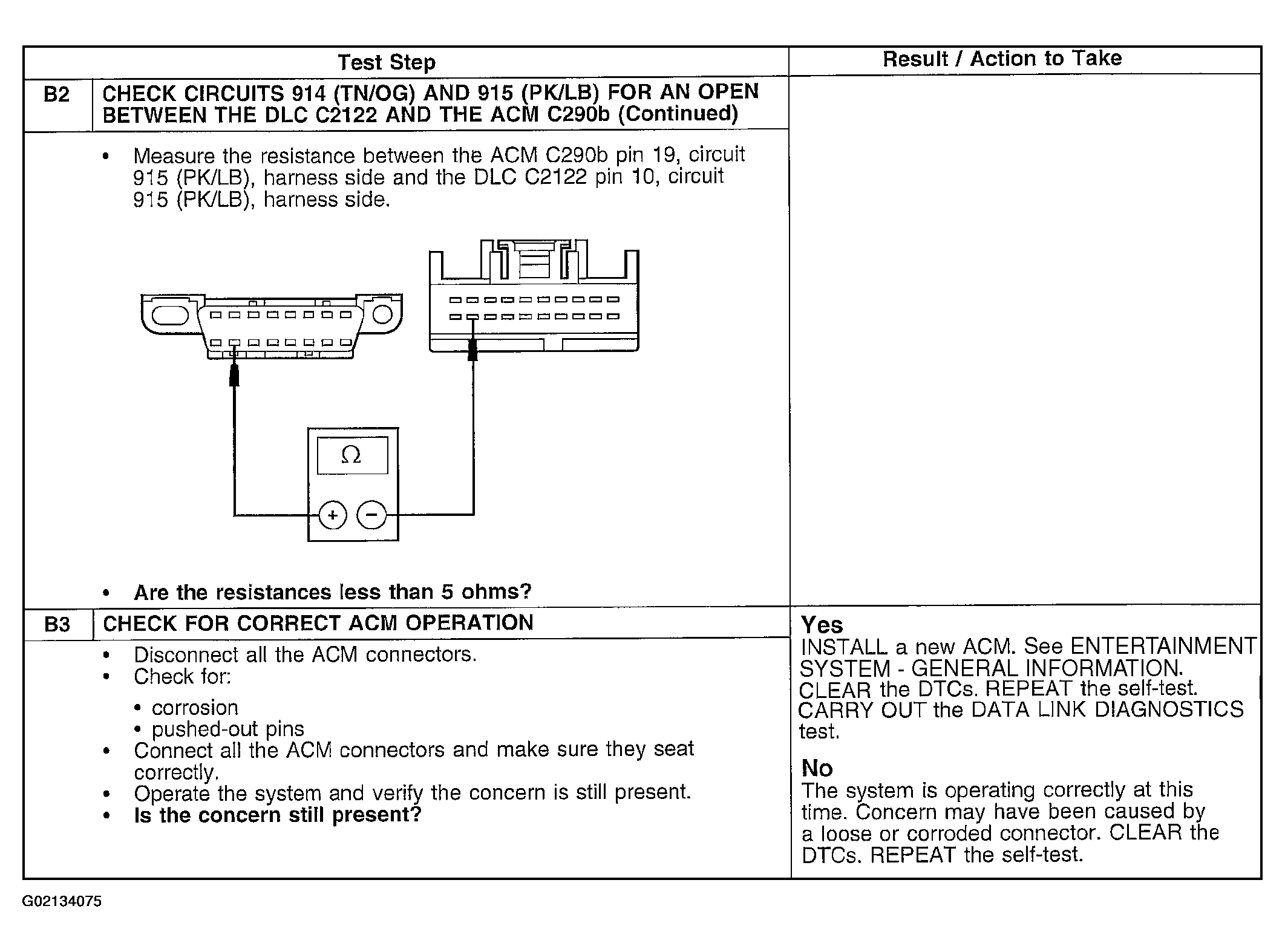

Fig 2: Pinpoint Test B (2 Of 2)
G02134075Courtesy of FORD MOTOR CO.
