Pinpoint Test E: The Electronic Automatic Temperature Control (EATC) Module Does Not Respond To The Diagnostic Tool

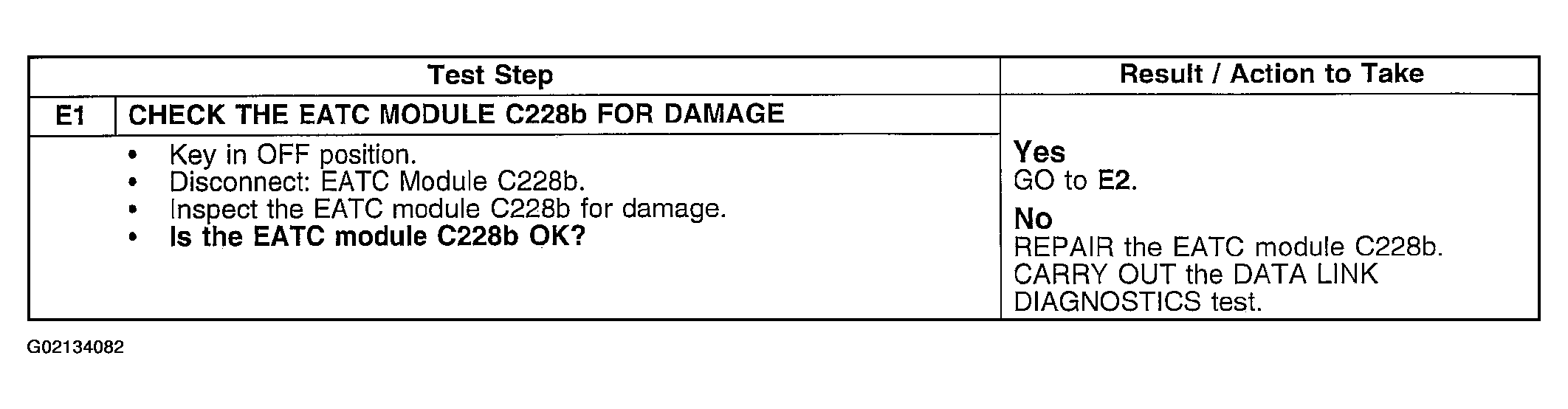

Fig 1: Pinpoint Test E (1 Of 2)
G02134082Courtesy of FORD MOTOR CO.

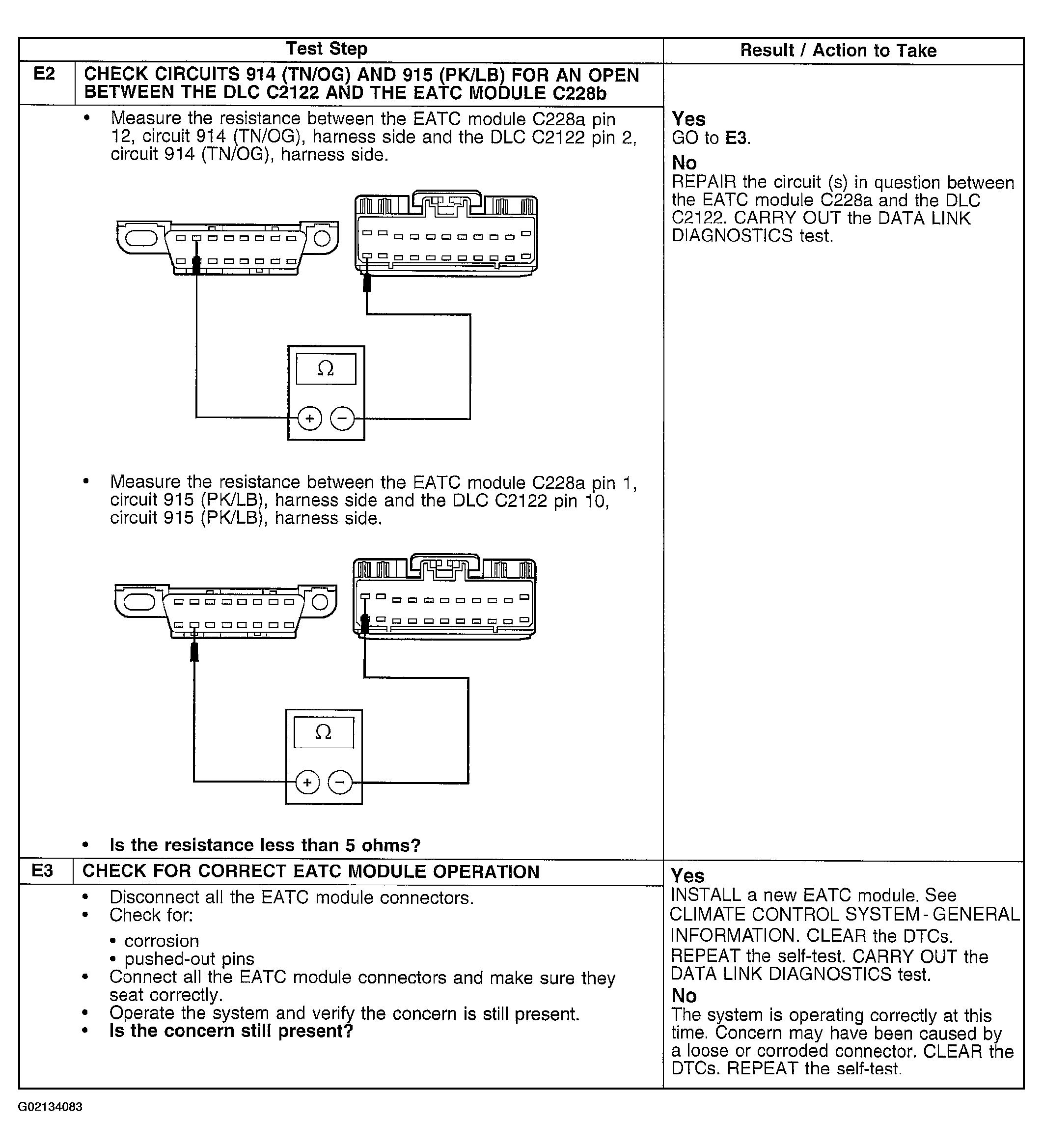

Fig 2: Pinpoint Test E (2 Of 2)
G02134083Courtesy of FORD MOTOR CO.
