Pinpoint Test G: The Lighting Control Module (LCM) Does Not Respond To The Diagnostic Tool

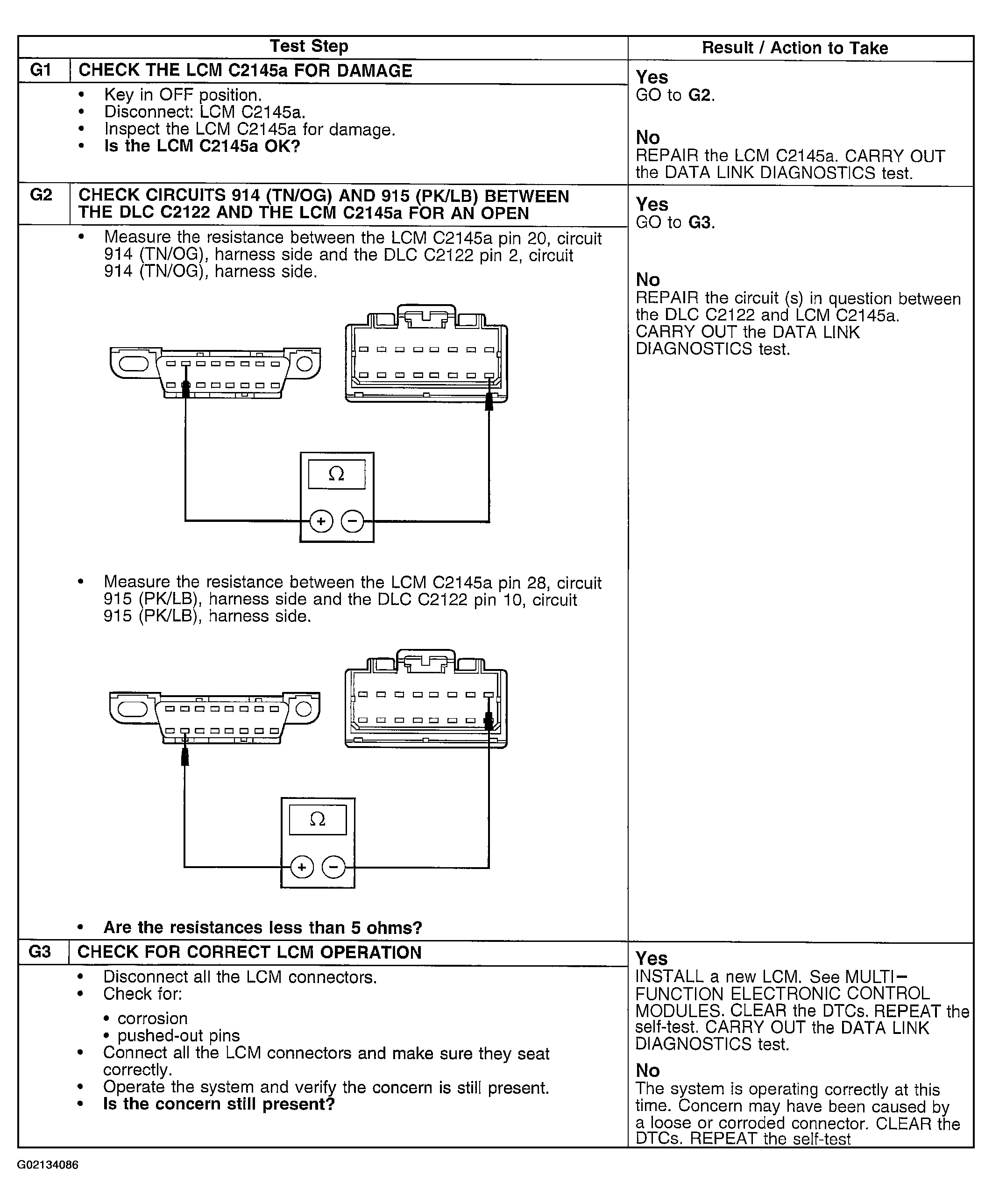

Fig 1: Pinpoint Test G
G02134086Courtesy of FORD MOTOR CO.
