Pinpoint Test I: The Telematics Control Module Does Not Respond To The Diagnostic Tool

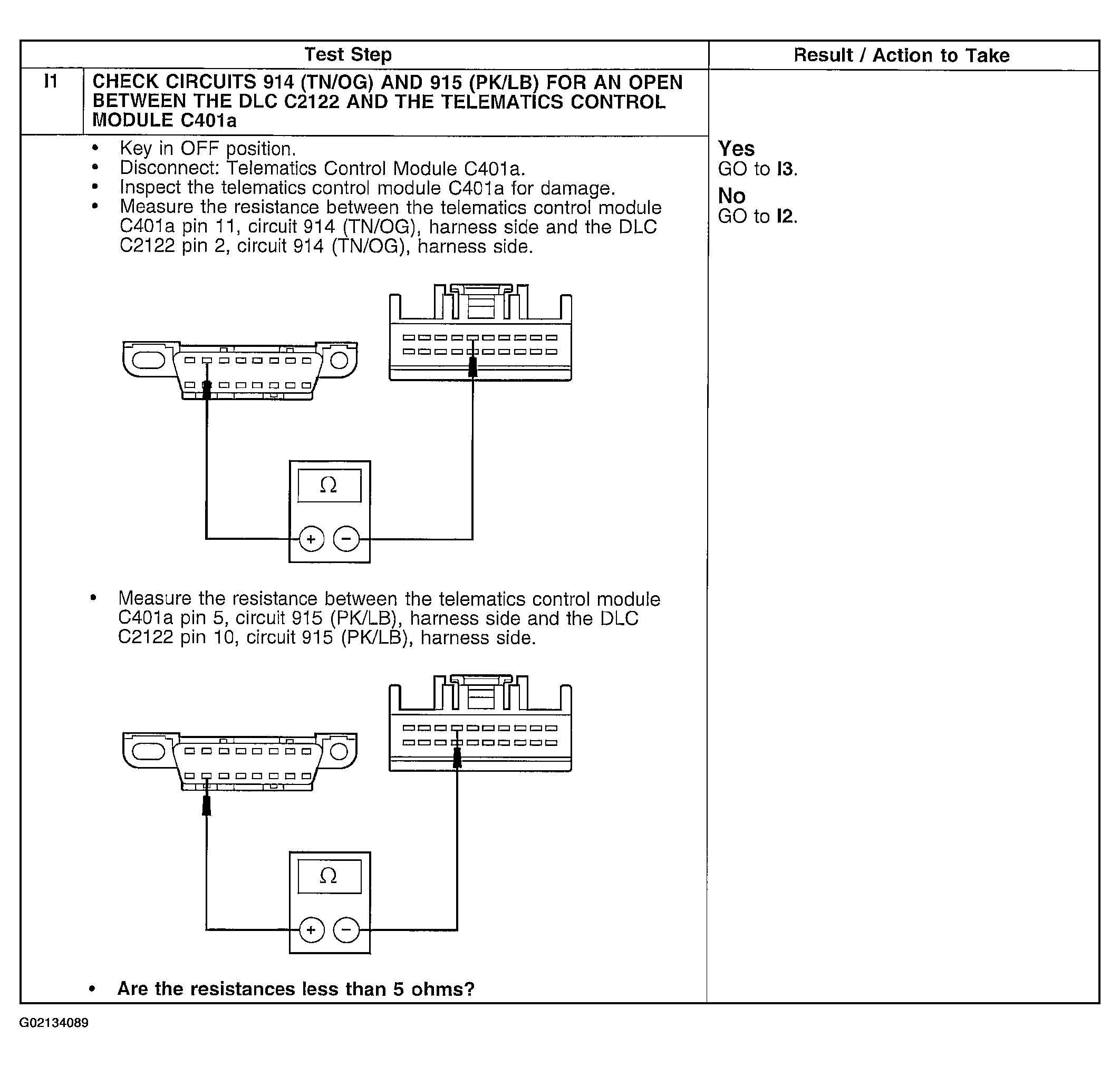

Fig 1: Pinpoint Test I (1 Of 2)
G02134089Courtesy of FORD MOTOR CO.

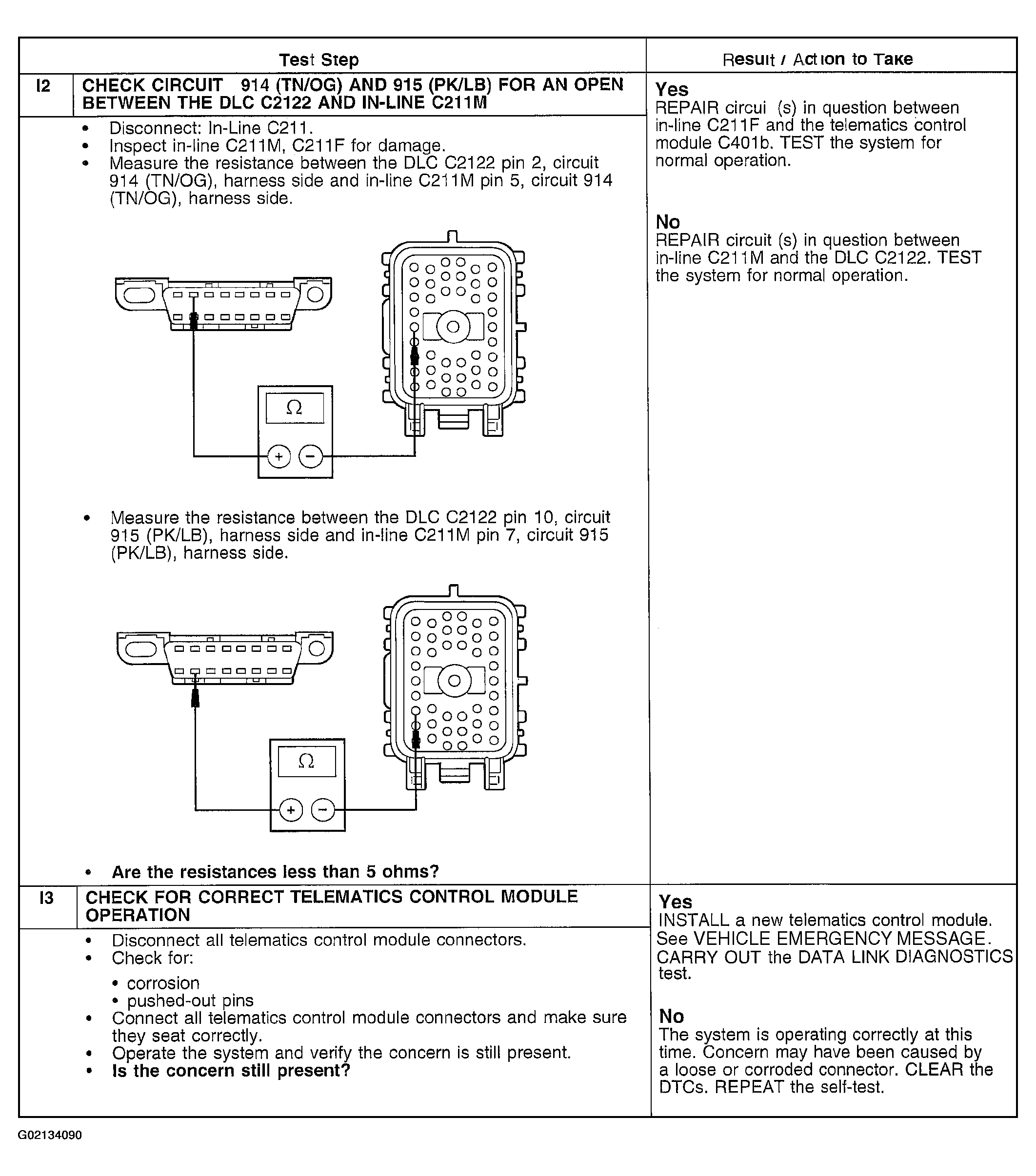

Fig 2: Pinpoint Test I (2 Of 2)
G02134090Courtesy of FORD MOTOR CO.
