Pinpoint Test J: The Powertrain Control Module (PCM) Does Not Respond To The Diagnostic Tool

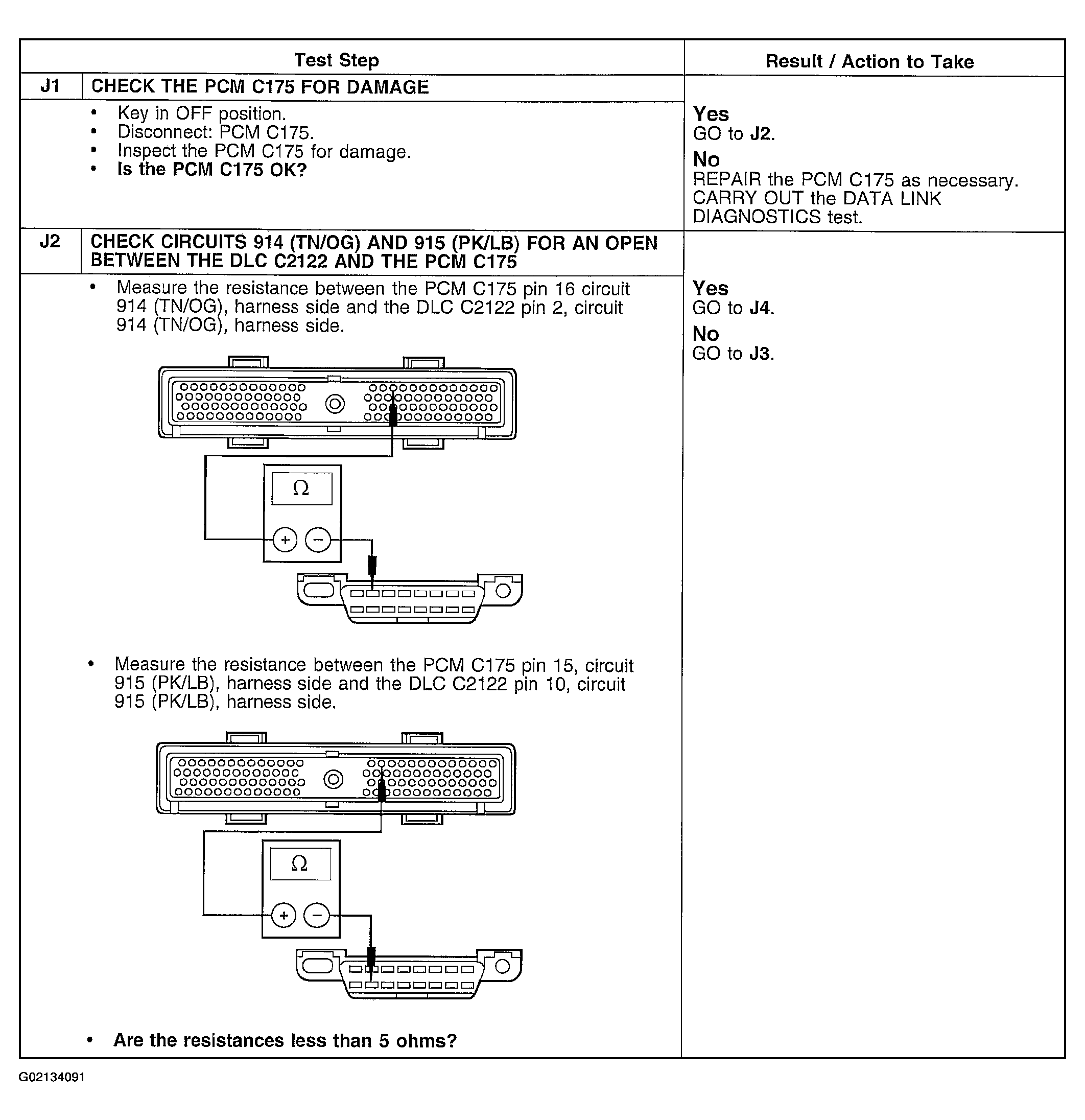

Fig 1: Pinpoint Test J (1 Of 2)
Courtesy of FORD MOTOR CO.

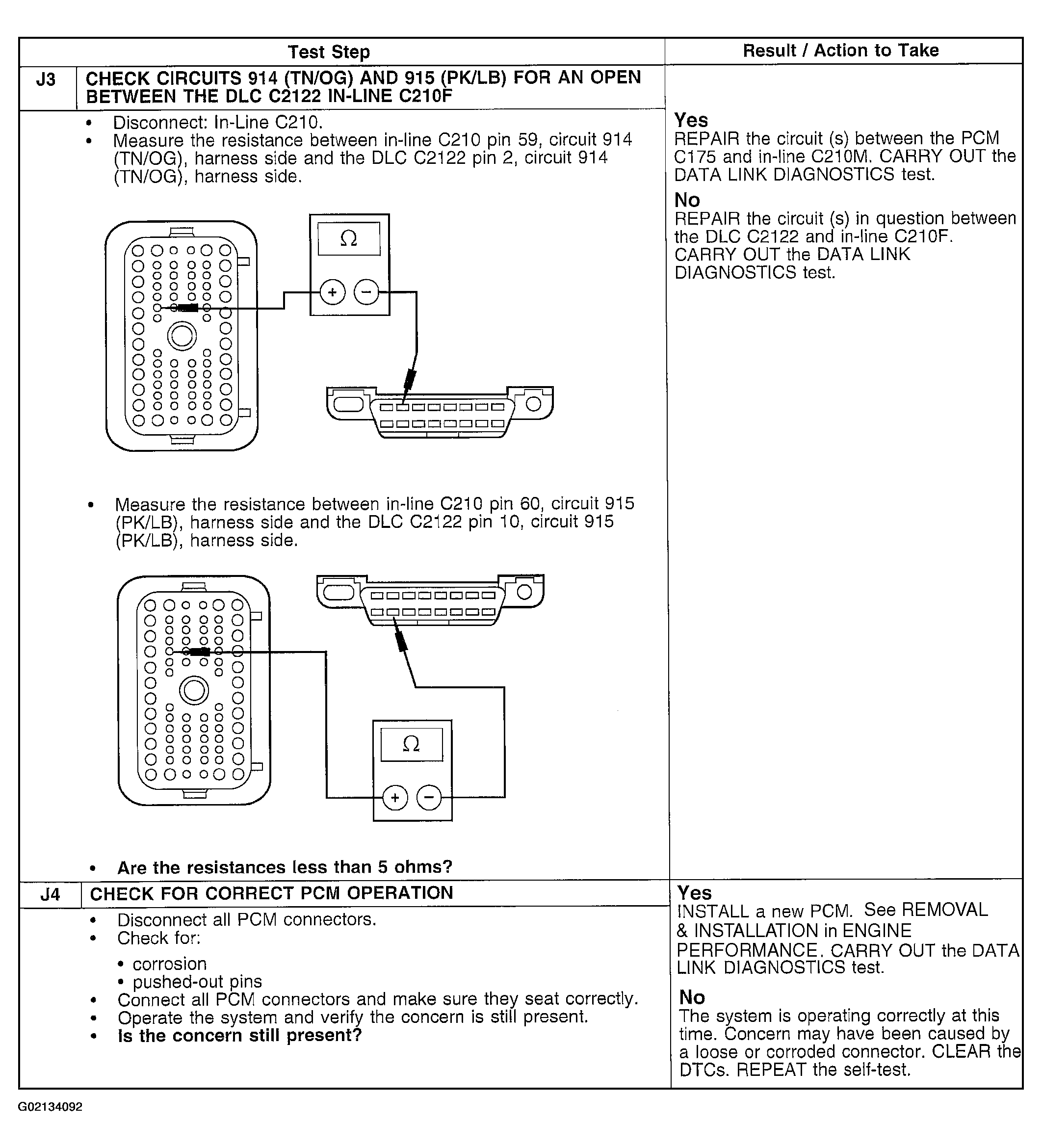

Fig 2: Pinpoint Test J (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
