Pinpoint Test P: The Luggage Compartment Lid Module Does Not Respond To The Diagnostic Tool

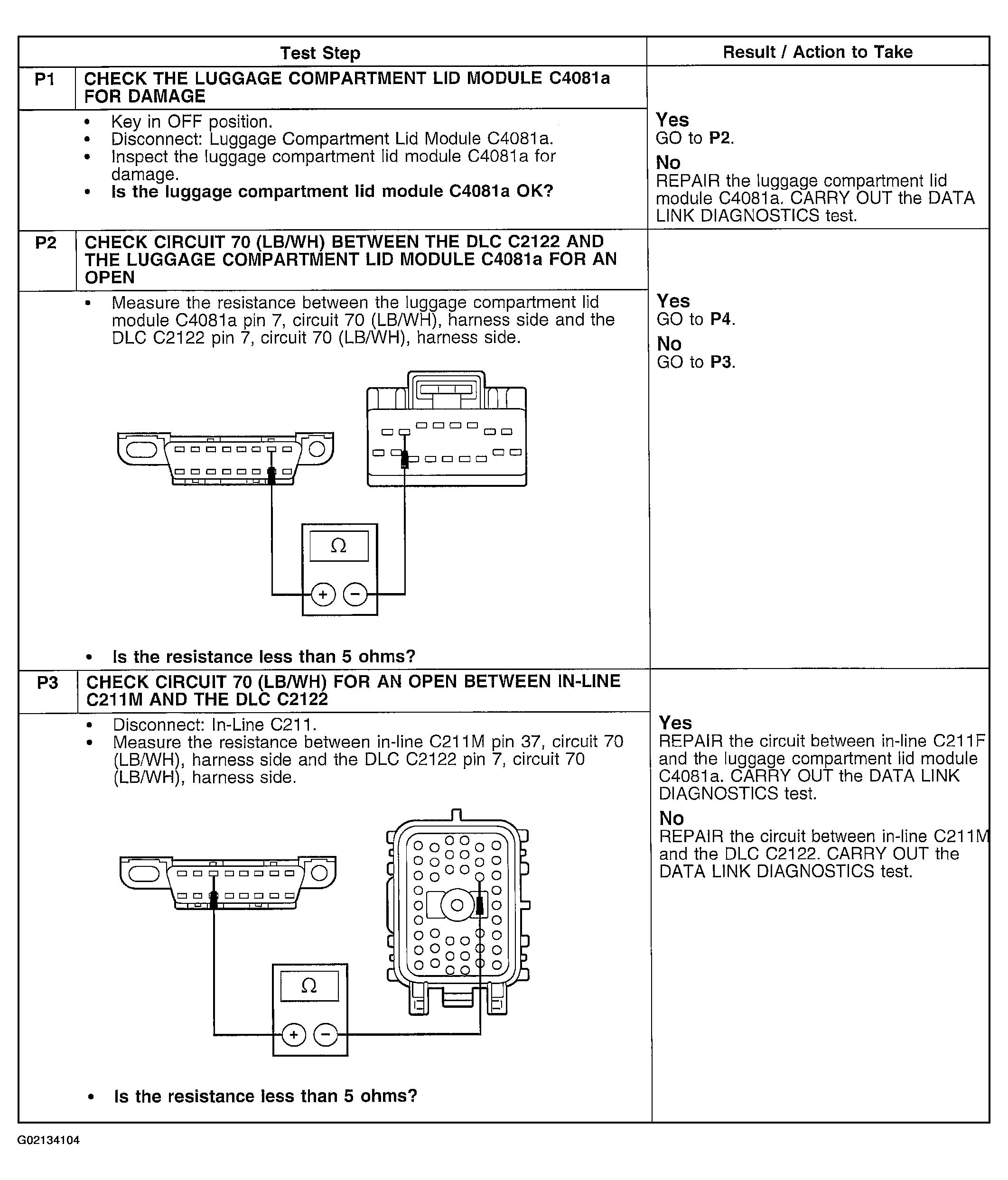

Fig 1: Pinpoint Test P (1 Of 2)
G02134104Courtesy of FORD MOTOR CO.

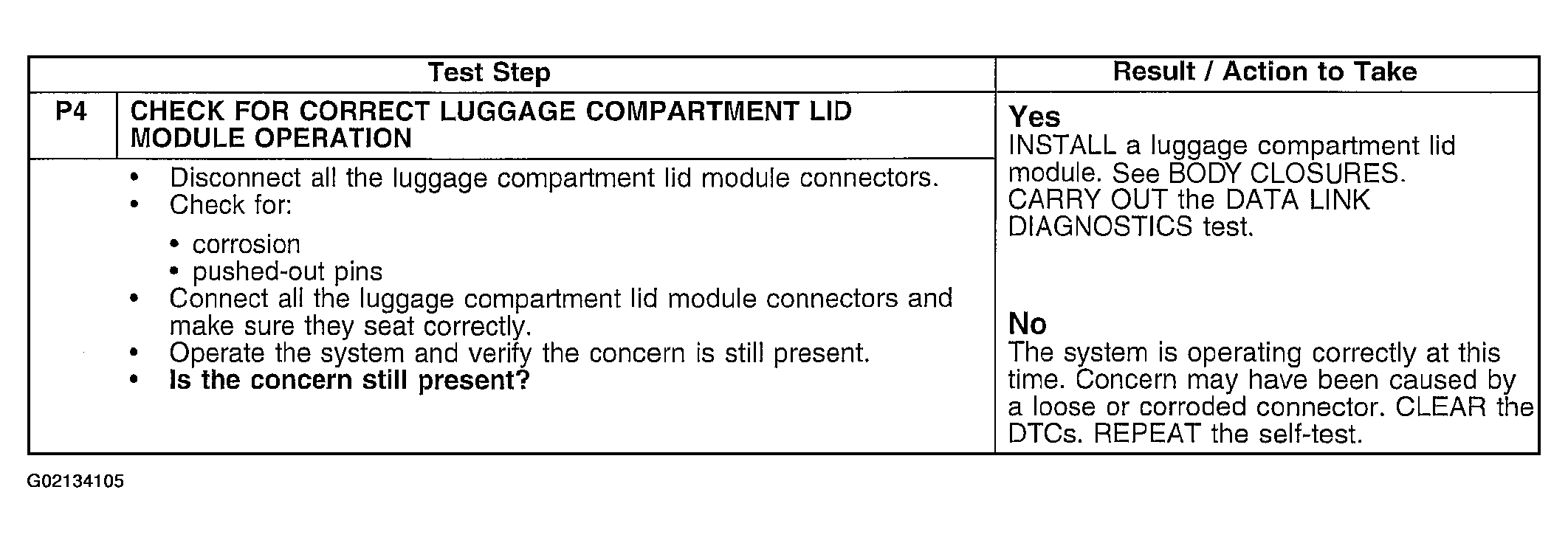

Fig 2: Pinpoint Test P (2 Of 2)
G02134105Courtesy of FORD MOTOR CO.
